For 65 years Delmhorst Instrument
has been the leading manufacturer of
high quality, US-made moisture
meters and thermo-hygrometers.
Today we offer a wide range of meters
for applications including water
damage restoration, construction,
flooring, lumber/woodworking, paper,
and agriculture.
W H E N A C C U R A C Y I S T H E P O I N T
51 Indian Lane East
Towaco, NJ 07082
(877)-DELMHORST
(3 3 5 - 6 4 6 7 )
www.delmhorst.com
info@delmhorst.com
©1999, Delmhorst Instrument Co.
510INS-0001
o w n e r ' s m a n u a l
®
.
TM
REV. 7/11

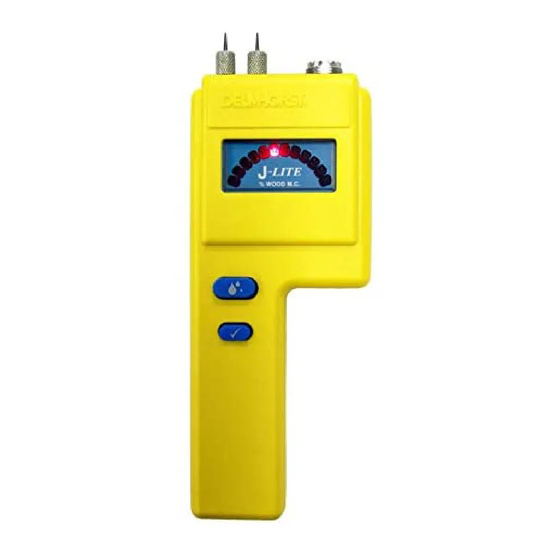

J-Lite
W H E N A C C U R A C Y I S T H E P O I N T
®
•
™
Advertisement
Related Manuals for Delmhorst J-Lite
Summary of Contents for Delmhorst J-Lite
- Page 1 J-Lite o w n e r ’ s m a n u a l For 65 years Delmhorst Instrument has been the leading manufacturer of high quality, US-made moisture meters and thermo-hygrometers. Today we offer a wide range of meters...
- Page 2 TEMPERATURE CORRECTION TABLE METER READINGS ˚C ˚F Moisture content values shown in bold are only qualitative since they are above fiber saturation point (30%MC). Pin correction: METER READINGS WITH INSULATED PINS (26-ES ELECTRODE) CORRECTED READINGS (TRUE INDICATED MOISTURE CONTENT) 10.6 12.8 14.9 17.0...
- Page 3 *Meter readings taken with 26-E 2-pin electrode with insulated pins. Do not apply 2-pin correction. L SPF correction is based on USDA/Forintek data and can be used for the following species: Lodgepole Pine, Alpine Fir, Eastern White Spruce, Black Spruce, Jack Pine ©1999, Delmhorst Instrument Co.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 2 J-Lite Features 3 Check Calibration 3 Taking a Reading 4 Understanding Your Readings 5 Meter Readings 6 Care of Your Meter 6 Service For Your Meter 7 Warranty... -
Page 5: Lite Features
External Electrode Readout Read Key Calibration Check Key J-LITE FEATURES hResistance technology recognized worldwide as the most accurate method for measuring moisture h6% to 30% MC range on wood (Douglas Fir) hLED readout hProven microcontroller circuit hBuilt-in calibration check... -
Page 6: Check Calibration
If you have a fresh battery and the instrument still does not indicate a proper calibration, return it to DELMHORST for service. See Service for Your Meter section. When the battery is removed and then reconnected, all the LEDs will flash for a few seconds, then the meter will turn itself off. -
Page 7: Understanding Your Readings
READINGS Refer to the chart on page 5 for interpretation of meter readings. Since the J-LITE displays %MC in a range between two val- ues, corrections for wood temperature, pin, and species have less impact on the accuracy of the meter readings, especially below 12%. -
Page 8: Meter Readings
Between 27.6 and 30.0 Blinking 30% Above 30% The J-Lite can be used to test many other building materials such as drywall, plywood, OSB, MDF. Call 877-DELMHORST (335-6467) or e-mail info@delmhorst.com for more informa- tion on using the meter on other materials. -
Page 9: Care Of Your Meter
If your meter is not working properly, replace the battery with a new one and check the calibration. If this does not resolve the problem, go to www.delmhorst.com and follow the instruc- tions under the Product Support tab. If you require further assistance please call 877-DELMHORST... -
Page 10: Warranty
WARRANTY Delmhorst Instrument Co., referred to hereafter as Delmhorst, guarantees its J-Lite meter for three years from date of purchase and any optional electrodes against defects in material or workmanship for 90 days. If, within the warranty period, you find any defect in material or workmanship return the meter following the instructions in the Service for Your Meter section. - Page 11 NOTES...
