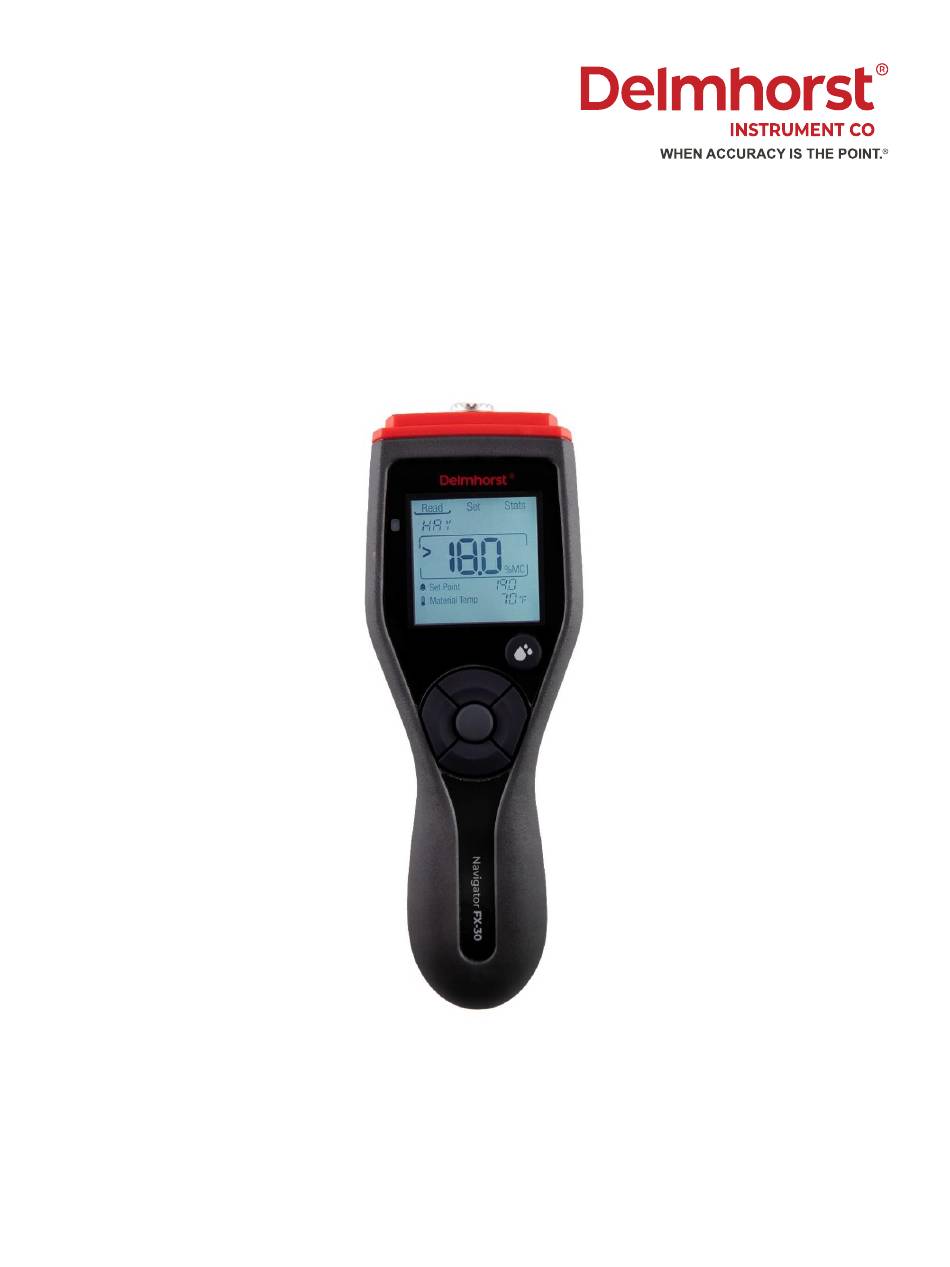

  • Page 1 Owner’s Manual FX-30 Rev 2 - November 2023...

  • Page 2: Table Of Contents

    Bluetooth® Indicator ......................... 14 7. Stats Menu ............................16 Stats Selection ............................ 16 Stats Details............................16 8. Delmhorst EDGE ™ App Features ....................18 9. Specifications and Operating Conditions ..................19 Temperature Compensation Range: (not operating temperature) ........19 Reading Range: ..........................19 Power: ..............................
  • Page 3 Testing Baled Hay ..........................25 Testing Hay in the Windrow ......................26 Factors Affecting Your Readings ....................27 Range of Moisture Content ......................27 Curing ............................... 28 Density .............................. 28 Use of Preservatives ........................29 Sample Size ............................. 29 Testing Hemp ............................. 29 Testing Hops ............................

  • Page 4: Introduction

    The FX-30 meter is the ideal tool for producers and quality control technicians and offers the latest in features and functionality. It is packaged in a robust and ergonomically designed ABS case (patent pending) to provide a premium, tactile feel, and intuitive user interface with dashboard- like display.

  • Page 5: Safety

    Cal Check feature or external MCS calibration standard) to ensure the meter is working correctly and is electrically accurate. Proper Use: When used properly, the FX-30 can help users make informed decisions on the moisture levels of the materials under test at the various stages of production.

  • Page 6: Meter Features

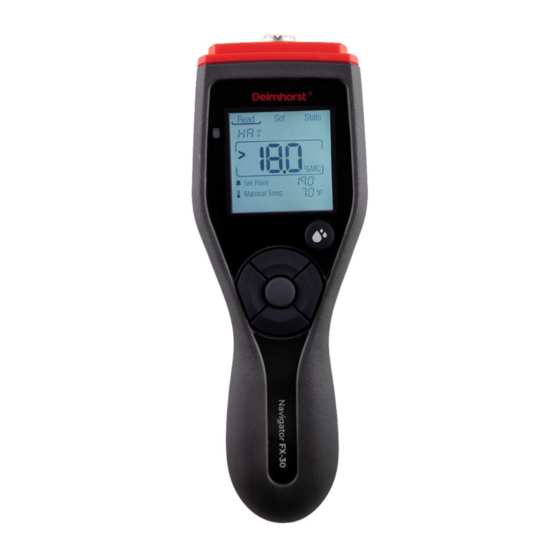

    3. Meter Features Figure 1: Meter components Screen – Easy to read, backlit LCD display. Read Button – When in live reading mode, press this button to hold a reading. When in any other mode, press this button to enter live reading mode.
  • Page 7 Specific applications require different MC thresholds. The Delmhorst EDGE™ app enables users to adjust these thresholds accordingly. The default LED thresholds are as follows: Green: 6.0 % to 15.9%...
  • Page 8 Electrode Connector – Connect any external special application Delmhorst electrode. Refer to our website (www.delmhorst.com) for the common prods and electrodes for the materials in the meter. Rev 2 - November 2023...

  • Page 9: Menu Features

    4. Menu Features The Delmhorst FX-30 meter has three operating modes: Read, Set, and Stats. The currently selected menu is marked with an underline. To change the menu, press the up button until the menu underline is blinking. Then use the left and right buttons to switch between menus. Use the down or center button to enter the menu.

  • Page 10: Read Menu

    5. Read Menu Figure 2: Read screen components 1. Material Selection Info: The FX-30 meter features calibrations for the following materials: • Hay • Hemp • Hops • Tobacco • Brazil Nuts • Dates/Dried Fruit Any unwanted material can be removed from the meter via the EDGE™...

  • Page 11: Live Reading Area

    If connected to the EDGE™ app, users will be prompted to export readings before they are deleted from the app. Please see Delmhorst EDGE™ App User Guide for further instructions regarding exporting readings and changing the available material corrections in the FX-30.

  • Page 12: Set Point

    followed by the memory slot which the reading occupies (ex. HAY 2/100). This message can be bypassed by pressing the Read button. Memory: There are 100 memory slots available in the meter. As readings are saved, the memory slots will fill in order from lowest (1) to highest (100).

  • Page 13: Material Temperature

    4. Material Temperature Info: The FX-30 temperature compensation function is based on HAY and can be used as a guideline for the other materials in the meter. The meter has been calibrated at 80°F on various samples of different types of hay, mostly alfalfa, and on different cuttings and mixtures.

  • Page 14: Set Menu

    2. Bluetooth® Indicator The FX-30 is equipped with Bluetooth® technology, allowing users to connect their meter(s) to a mobile device (smartphone or tablet). The Bluetooth® icon is visible on all meter screens when turned on. Please refer to the Delmhorst EDGE™...
  • Page 15 Table 2: Settings options Setting Description • Allows users to check the electrical calibration of the meter Cal Check • A value between 11.8 and 12.2 means the meter is in calibration • A value of <11.8 or >12.2 means the meter is out of calibration –...

  • Page 16: Stats Menu

    Contrast • Adjust the contrast level of the screen from 1 (low) to 10 (high) • Factory default is contrast level 5 7. Stats Menu Figure 4: Stats screen components 1. Stats Selection The stats selection area will display all statistics in a scrollable list (see Table 3 below).
  • Page 17 The meter provides statistics (average, high, low, standard deviation) for the readings that are currently stored in the meter. Note: The statistics in the meter are calculated without any out of range readings. The stats details section can only be selected for the ‘View Data’ and ‘Erase Data’...

  • Page 18: Delmhorst Edge ™ App Features

    6. Adjust the moisture values at which the LEDs change colors. 7. Change meter language. 8. Upgrade meter firmware. Please refer to the Delmhorst EDGE™ App User Guide for more details on how to connect the meter to the app and a detailed explanation of the features mentioned above.

  • Page 19: Specifications And Operating Conditions

    9. Specifications and Operating Conditions Temperature Compensation Range: (not operating temperature) 0-255 °F / -18-124 °C Reading Range: Hay: 6%-40% Hemp: 7%-34% Hops: 8%-23% Tobacco: 8%-37% Brazil Nuts: 6%-25% Dates /Dried Fruit: 6%-25% Power: 2x AA Alkaline Batteries Battery life while using the meter in reading mode and active LED’s is estimated at 125-150 hours.

  • Page 20: Size

    Bluetooth® off in the meter when not in use, setting the backlight brightness low, and using shorter timeout settings. Size: 8.6 in x 2.9 in x 1.6 in (22 cm x 7.4 cm x 4.1 cm) Weight: 6.9 oz (0.20 kg) without batteries 8.6 oz (0.24 kg) with batteries Regulations/Compliance: WEE, RoHS, CE...

  • Page 21: For Professional Users In The European Union

    some countries, you may be able to return your products to your local retailer upon purchase of an equivalent new product. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

  • Page 22: Meter Care, Service And Warranty

    Service Your Meter If your meter is not working properly, replace the batteries and check the calibration. If this does not resolve the problem, go to www.delmhorst.com and follow the instructions under the Support tab. If you require further assistance, please call 877-DELMHORST (335-6467) or 973-334-2557.
  • Page 23 Delmhorst or an authorized reseller, following instructions found on www.delmhorst.com. Include proof of purchase. Shipping charges to return the product are the customer’s responsibility. This warranty does not cover abuse, misuse, damage during shipment, improper service, unauthorized or unreasonable use of the meter or electrodes.
  • Page 24 This warranty extends to the original owner only and is not transferable. Contact info: Delmhorst Instrument Co 51 Indian Lane East Towaco, NJ 07082 www.delmhorst.com Info@delmhorst.com 973-334-2557 Rev 2 - November 2023...

  • Page 25: Appendix

    11. Appendix Testing Baled Hay Test • Connect the bale prod to the connector on the top of the meter. • Insert the bale prod into the bale. • Press the read key. The meter displays the %MC for two seconds. Notes •...

  • Page 26: Testing Hay In The Windrow

    Testing Hay in the Windrow Test 1 • Attach the #831 short pin prod to the H-4 handle and connect the handle to the external connector on top of the meter. • Prepare a representative sample by collecting hay from various parts of the windrow.

  • Page 27: Factors Affecting Your Readings

    Range of Moisture Content The FX-30 is designed to test moisture in hay over a range of 6%-40%. Readings over 30% should be used only as a qualitative indication of high moisture content. Delmhorst moisture meters use the relationship existing between electrical conductivity and moisture content in hay.

  • Page 28: Curing

    high range does not significantly affect the usefulness of the meter, as a few high readings indicate that some action be taken to dry the hay to avoid spoilage or even self-combustion. While it is important to note the average of several readings, it is even more important to note the high readings and the frequency at which they occur.

  • Page 29: Use Of Preservatives

    Testing Hemp The FX-30 meter hemp calibration was developed on hemp flower samples using the H-4 handle with 831 short pin prod. Using the 831, 830-2 coax prod, or the 22-E electrode enables you to easily check...

  • Page 30: Testing Hops

    Testing Hops The FX-30 meter enables you to easily check moisture levels in loose and baled hops to assure quality and safe storage. To check the %MC of bales connect the 830-2 (10 in) or 830-5 (12 in) prod to the H-4 handle.

  • Page 31: Testing Tobacco

    Material Temperature – in this manual for information on using the internal temperature compensation. Testing Tobacco The FX-30 is an essential tool in monitoring the moisture of tobacco at the various stages of harvest, housing, curing and production. The calibration was developed primarily on Burley tobacco (8%-37% MC).

  • Page 32: Testing Brazil Nuts

    Testing Brazil Nuts The FX-30 includes a calibration developed for Brazil Nuts in shell (6%- 25%MC). It is ideal for checking moisture levels during production, storage, and buying/selling. Use the 2-E (5/16in penetration) or 22-E (1/2in) penetration. www.delmhorst.com Testing Dates The FX-30 includes a calibration developed for Dates and a variety of dried fruits (6%-25%MC).
