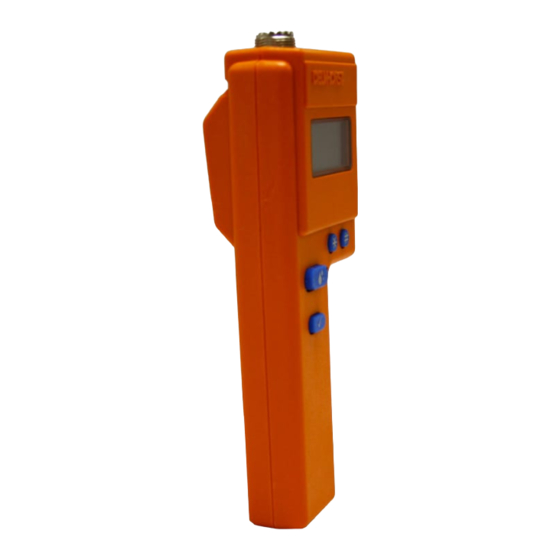

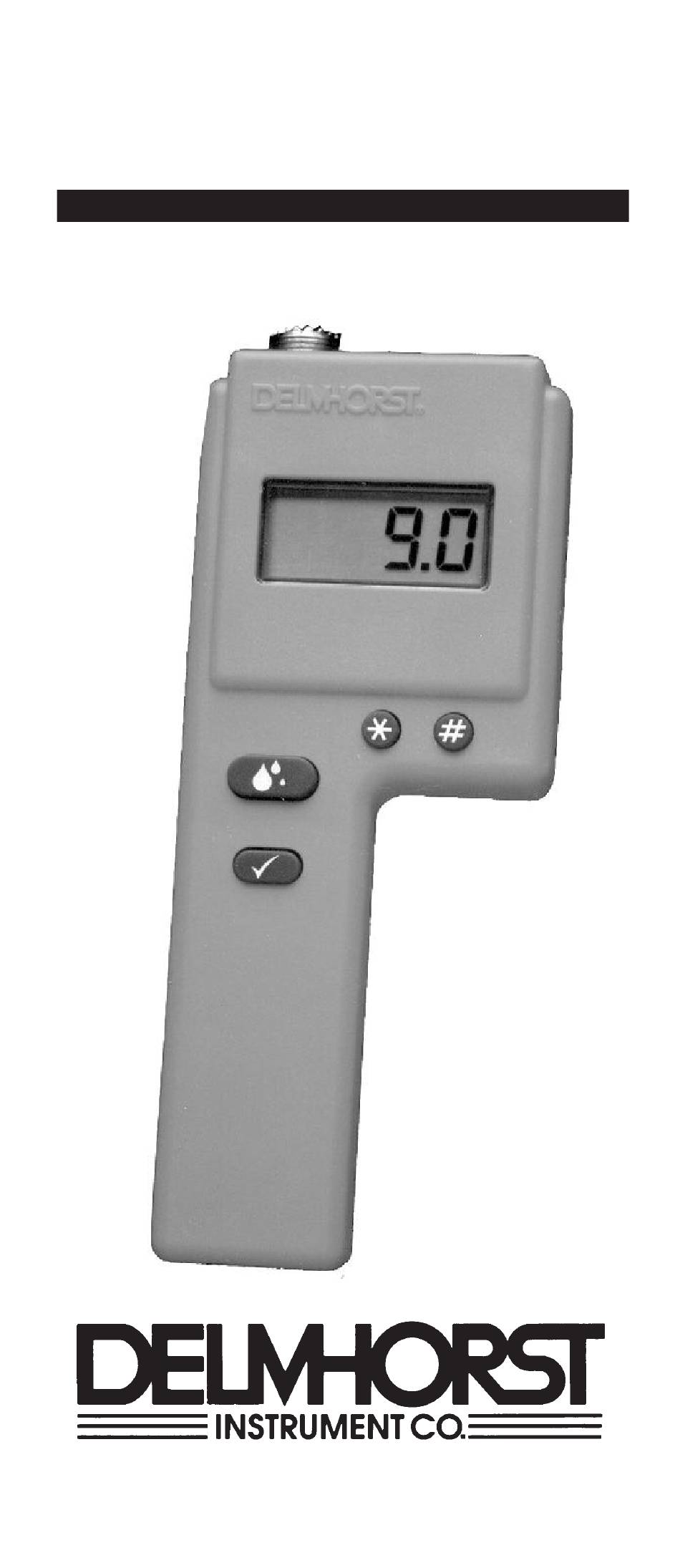

- Page 1 C-2000 o w n e r s m a n u a l ® W H E N A C C U R A C Y I S T H E P O I N T TestEquipmentDepot.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 2 C-2000 Features 3 Button Functions 3 Check Calibration 4 Set the Scale 4 To Change the Set-Point 5 Information About Your Readings 5 To Check the Accumulated Readings 6 To Reset Meter 6 Applications 9 Temperature Correction... -
Page 3: 2000 Features
Read Button Calibration Check Button Scale Button C-2000 FEATURES hDesigned to check the moisture content in lint cotton and seed hResistance technology recognized around the world as the most accurate method for measuring moisture. h Averages up to 100 accumulated readings h 4% –16% moisture range on lint cotton... -
Page 4: Button Functions
DELMHORST for service. See Service for Your Meter section. When the battery is replaced, the meter displays its software version for one second and then turns itself off. -
Page 5: Set The Scale
TO SET THE SCALE Set the scale for #1 Lint Cotton or # 2 Seed Cotton. hTo change the scale, press the scale button . The meter will display the current scale for one second. hPress and hold the scale button to toggle between the two scales. -
Page 6: Information About Your Readings
INFORMATION ABOUT YOUR READINGS The meter will accumulate up to 100 readings. After all 100 readings are “stored” it will not add new readings until the memory has been cleared. It will also continue to display the average of all 100 readings as a reminder that the memory is full. -
Page 7: To Reset Meter
hTo keep the accumulated readings in memory release the cal- ibration check button before the total cycle time is com- plete. hTo erase readings, hold the calibration check button more than five seconds. The total, average and highest read- ings will be displayed as above, followed by a zero to indicate all readings have been erased. - Page 8 Testing Seed Cotton hAttach the 52-E/C Sample Cup Electrode to the connec- tor on top of the meter. hSet the scale for ( 2) Seed Cotton and select a set point. hPlace a small quantity of cotton in the sample cup. Press the cotton firmly into the cup with your finger.
- Page 9 Testing Baled Cotton hSlide the plastic spacer over the 491 contact pins from the bottom of the pins, mount the pins in the chucks and tighten the set screws. (The 491 contact pins are not inserted into the chucks for shipping purposes). hAttach the 30-E/C Electrode to the connector on top of the meter.
-
Page 10: Temperature Correction
Temperature Correction The basic calibration assumes the cotton temperature to be 70°F. For best accuracy, apply a temperature correction if the cotton temperature is outside the range of 60°F to 80°F. Make a correction of approximately 1.0% for every 20° F. The meter will read higher than the actual moisture content as cotton temperature increases, and will read lower as cot- ton temperature decreases. - Page 11 90 days. If, within the war- ranty period of the C-2000, you find any defect in material or workmanship return the meter following the instructions in the Service for Your Meter section. This limited warranty...
- Page 12 For 60 years Delmhorst has been the leading manufacturer of high quality moisture meters and thermo- hygrometers. Today we offer the ® in-kiln innovative KIL-MO-TROL monitoring system. We also offer a wide range of meters for a variety of applications including wood-...
