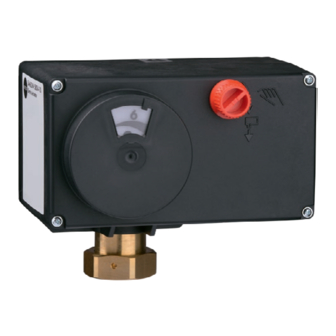

Samson 5824 Mounting And Operating Instructions
  1. Manuals
  2. Brands
  3. Samson Manuals
  4. Controller
  5. Type 5824
  6. Mounting and operating instructions

Samson 5824 Mounting And Operating Instructions

Electric actuators
Hide thumbs Also See for 5824:
Table of Contents

Advertisement

Quick Links

See also: Mounting and Operating Instructions
Electric Actuators
Type 5824 without fail-safe action
Type 5825 with fail-safe action

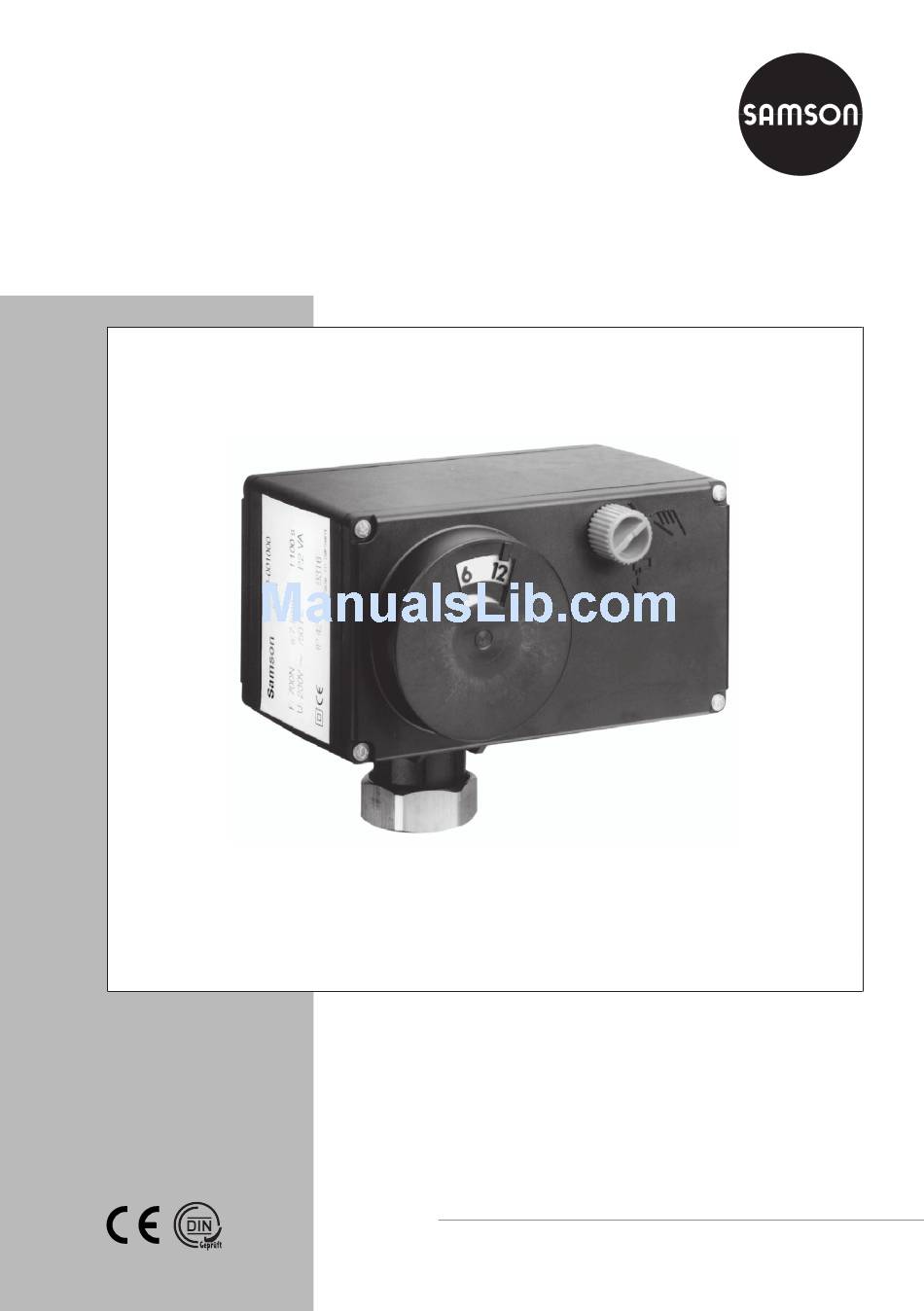

Fig. 1 · Type 5824 Actuator
Mounting and
Operating Instructions
EB 5824 EN
Edition July 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5824 and is the answer not in the manual?

Questions and answers

Related Manuals for Samson 5824

Summary of Contents for Samson 5824

  • Page 1 Electric Actuators Type 5824 without fail-safe action Type 5825 with fail-safe action Fig. 1 · Type 5824 Actuator Mounting and Operating Instructions EB 5824 EN Edition July 2008...

  • Page 2: Table Of Contents

    Attachment to valve ......8 Type 5824 Actuator ......8 2.1.1...
  • Page 3 Only use power interruption devices which are protected against unintentional reconnection of the power supply. Note! The electric actuators fulfill the requirements of the directives 2004/108/EC and 2006/95/EC. The declaration of conformity is availa- ble on request. EB 5824 EN...

  • Page 4: Design And Principle Of Operation

    Spring mechanism, Type 5825 only Scale for travel indication 9.1 Driving pin Torque switch Caution! Do not open the back housing cover! Fig. 2 · Type 5824/5825 Actuator (front cover open), with force-locking attachment to the valve EB 5824 EN...

  • Page 5: Additional Electrical Equipment

    Priority circuit according to DIN 14597 in conjunction with The positioner version in conjunction with various SAMSON valves. The register num- limit switches can optionally be fitted with a ber is available on request. priority circuit (terminals 82 and 83).

  • Page 6: Technical Data

    Actuators with 6 mm travel can also be used for valves with 7.5 mm travel. Manual override using a 4 mm Allen key after removing housing cover, always returns to fail-safe position after release Safety spring pulls the actuator stem into the retracted final position; valve operated over the valve spring EB 5824 EN...
  • Page 7 1 mA, 5 V Supply voltage; inputs and outputs are not electrically isolated. Maximum 2 current inputs may be connected in series. (20 mA) = 50 Ω, R (10 V) = 10 kΩ, R (min) = 1 kΩ EB 5824 EN...

  • Page 8: Attachment To Valve

    (Fig. 3). tightening torque of 20 Nm. 2. Position actuator with yoke (15) on the 2.1 Type 5824 Actuator valve and tighten the nut (17) with a minimum tightening torque of 150 Nm. 2.1.1 Force-locking attachment 3.

  • Page 9: Type 5825 Actuator

    Allen key on the red actuating shaft. The control valve must be mounted in the 2. Retract the actuator stem: Turn Allen key pipeline with the Type 5824/5825 Actuator counterclockwise only and only up to the on top to achieve the stated degree of pro- final travel value which is at the point tection.

  • Page 10: Electrical Connection

    If voltage is applied to eL, the actuator motor retracts the actuator stem in oper- ating direction "IN" (into the actuator). Voltage applied to aL causes the actua- tor stem to extend in operating direction "OUT" (out of the actuator). EB 5824 EN...
  • Page 11 (only with three-step signal) Electromagnet in version with fail-safe action Limit switches Version with positioner for continuous-action signals Output Control signal Priority circuit in version with positioner (only in combination with limit switches) Fig. 5 · Electrical connections EB 5824 EN...

  • Page 12: Operation And Settings

    Handwheel the front cover back on. Type 5824 only 4.2 Setting additional equipment Fig. 6 · Type 5824 Electric Actuator 4.2.1 Limit switches Type 5824 Actuator The limit switches (6 in Fig. 2) can optionally Use the handwheel to adjust the travel be used as double-throw, make or break (approx.

  • Page 13: Potentiometer

    The ohmmeter indicates the initial value of approx. 0 Ω. 4. Only for actuators with 6 or 12 mm travel: Slowly turn the potentiometer counterclockwise up to the point where the resistance just changes from 0 Ω. EB 5824 EN...
  • Page 14 Zero adjuster DIL switch (potentiometer calibration in 7.2 Adjuster for limit switch three-point stepping version) Travel indication scale 11.1 Driving gear wheel 9.1 Driving pin Span adjuster 9.2 Travel marker Fig. 8 · Adjusters in version with positioner EB 5824 EN...
  • Page 15 Depending on the transit time of the ac- tuator, the actuator stem retracts and the plug stem moves to its upper end posi- tion. 2. Check the travel indicator to determine whether the required travel has been EB 5824 EN...

  • Page 16: Priority Circuit

    Afterwards, set switch S3 to ON to activate split-range operation. For split-range opera- tion between 0 and 50 %, set switch S4 to OFF and for a split range of 50 to 100 %, set the switch to ON. EB 5824 EN...

  • Page 17: Dimensions In Mm

    Dimensions in mm Dimensions in mm Types 5824-10/-20, 5825-10/-20/ -15/-25 (without faster motor) Types 5824-13/-23 and 5825-13/-23 (version with faster motor) Faster motor EB 5824 EN...
  • Page 18 Dimensions in mm Types 5824-30, 5825-30/-35 Actuator without yoke Actuator with yoke 1400-7414 Travel 15 46.5 Travel 15 EB 5824 EN...
  • Page 19 EB 5824 EN...
  • Page 20 SAMSON AG · MESS- UND REGELTECHNIK Weismüllerstraße 3 · 60314 Frankfurt am Main · Germany Phone: +49 69 4009-0 · Fax: +49 69 4009-1507 EB 5824 EN Internet: http://www.samson.de...
