BEFORE USING

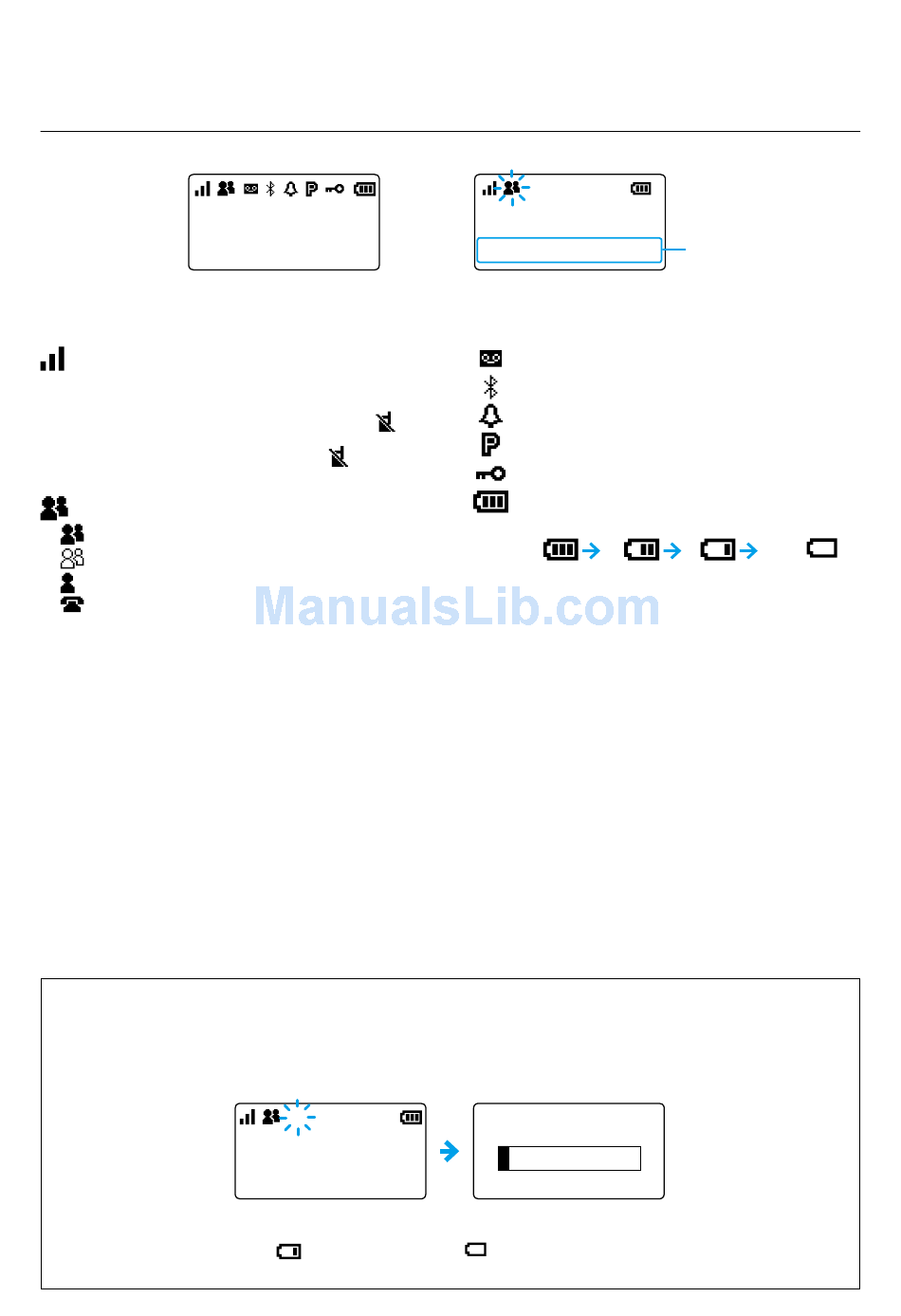

■ Icons and indications

10/4 12:57
A l l
Signal strength
The signal strength is represented by 3 bars.
When the transceiver location is out of the service
area, or cannot receive the control signal, the
(out-of-area) icon blinks.
If the IP501H has not been registered,
displayed. (p. 1-3)
Call types*
1
: All/Group Call
: Talkgroup Call*
: Individual Call
: Phone Call*
3
* Blinks when a call or message is received.
1
* May be usable, depending on a presetting.
2
* Feature in the near future.
3
"F" blinks while downloading a new firmware:
• Do not turn OFF the transceiver until the download is finished. Place the transceiver in a good signal level area.
Downloading takes approximately 10 minutes.
• After the downloading is finished, the firmware update will start. Updating takes approximately 1 minute.
• Do not turn OFF the transceiver. The transceiver will automatically restart when the update is finished.
• If "F" has been displayed for more than 10 minutes, reboot the transceiver.
• If the battery status indication is
Charge the battery pack, then restart the IP501H and do the firmware update.
Standby screen
is
(p. 3-4)
2
F
10/4 12:57
All
(nearing exhaustion) or
Blinks
10/4 13:00
All Gather immediately
Example: A message is received
Recording function (p. 3-7)
Bluetooth function (p. 5-8)
Pocket beep (p. 3-10)
P-Bell function (p. 3-10)
Lock function (p. 1-7)
Remaining battery capacity
Represents the remaining capacity in 4 steps.
sufficient
capacity
Updating
(exhausted), the firmware update will not start.
Blink
1-5
Message scrolls depend-
ing on the message length
nearing exhaustion
exhausted
a little. (Charging is necessary)
Blink
Exhausted
(Charging required)
