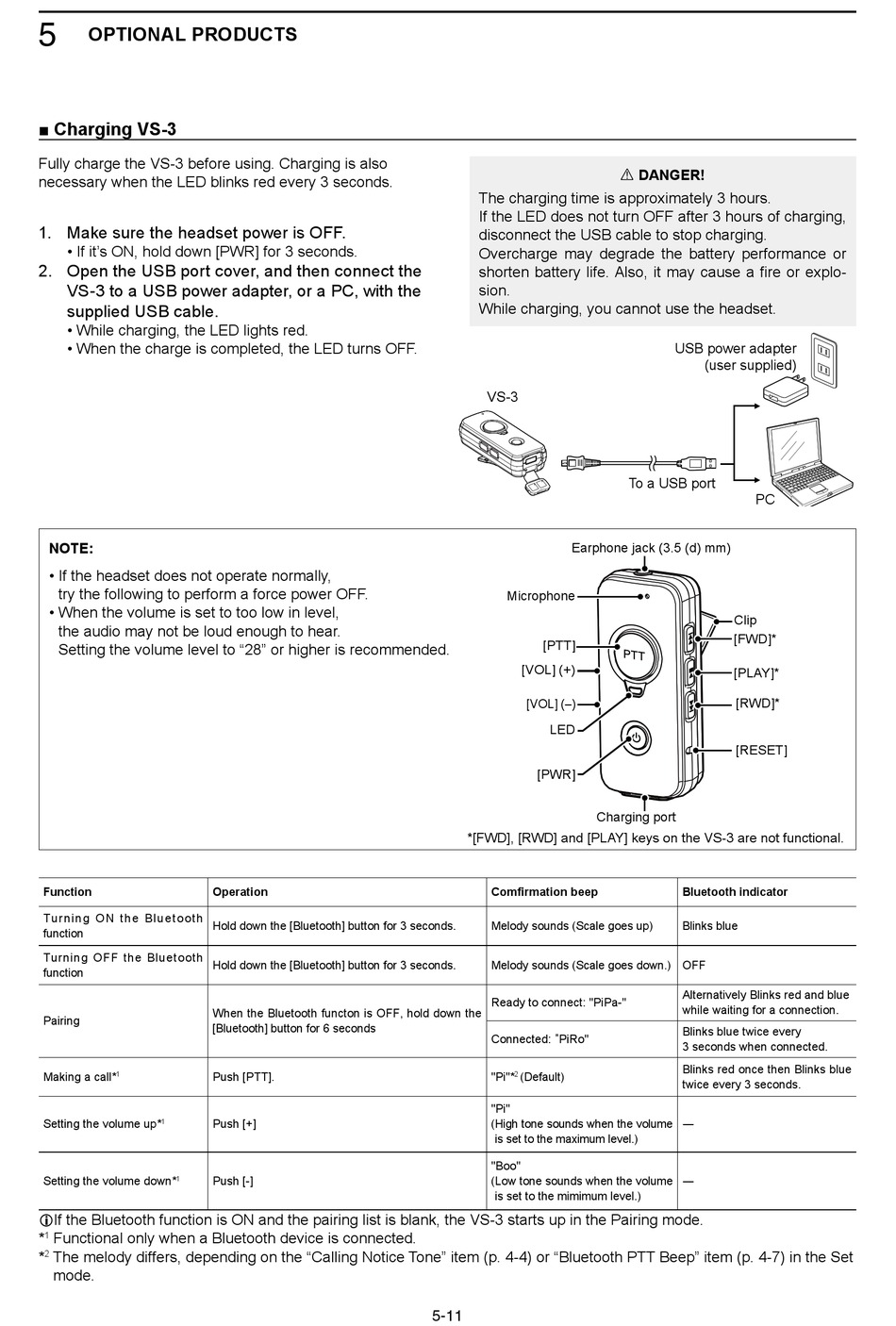

Icom IP501H Instruction Manual page 46

5
OPTIONAL PRODUCTS
■ Charging VS-3
Fully charge the VS-3 before using. Charging is also
necessary when the LED blinks red every 3 seconds.
1. Make sure the headset power is OFF.
• If it's ON, hold down [PWR] for 3 seconds.
2. Open the USB port cover, and then connect the
VS-3 to a USB power adapter, or a PC, with the
supplied USB cable.
• While charging, the LED lights red.
• When the charge is completed, the LED turns OFF.
NOTE:
• If the headset does not operate normally,
try the following to perform a force power OFF.
• When the volume is set to too low in level,
the audio may not be loud enough to hear.
Setting the volume level to "28" or higher is recommended.
Function
Turning ON the Bluetooth
function
Turning OFF the Bluetooth
function
Pairing
Making a call*
1
Setting the volume up*
1
Setting the volume down*
1
LIf the Bluetooth function is ON and the pairing list is blank, the VS-3 starts up in the Pairing mode.
* Functional only when a Bluetooth device is connected.
1
* The melody differs, depending on the "Calling Notice Tone" item (p. 4-4) or "Bluetooth PTT Beep" item (p. 4-7) in the Set
2
mode.
Operation
Hold down the [Bluetooth] button for 3 seconds.
Hold down the [Bluetooth] button for 3 seconds.
When the Bluetooth functon is OFF, hold down the
[Bluetooth] button for 6 seconds
Push [PTT].
Push [+]
Push [-]
The charging time is approximately 3 hours.
If the LED does not turn OFF after 3 hours of charging,
disconnect the USB cable to stop charging.
Overcharge may degrade the battery performance or
shorten battery life. Also, it may cause a fire or explo-
sion.
While charging, you cannot use the headset.
VS-3
Earphone jack (3.5 (d) mm)
Microphone
[PTT]
[VOL] (+ )
[VOL] (–)
LED
[PWR]
Charging port
* [FWD], [RWD] and [PLAY] keys on the VS-3 are not functional.
Comfirmation beep
Melody sounds (Scale goes up)
Melody sounds (Scale goes down.) OFF
Ready to connect: "PiPa-"
Connected: "PiRo"
"Pi"* (Default)
2
"Pi"
( High tone sounds when the volume
is set to the maximum level.)
"Boo"
( Low tone sounds when the volume
is set to the mimimum level.)
5-11
R DANGER!
USB power adapter
(user supplied)
To a USB port
PC
Clip
[FWD]*
[PLAY]*
[RWD]*
[RESET]
Bluetooth indicator
Blinks blue
Alternatively Blinks red and blue
while waiting for a connection.
Blinks blue twice every
3 seconds when connected.
Blinks red once then Blinks blue
twice every 3 seconds.
―
―
