Selecting A Talkgroup Number With The [Func] Key; Selecting A Talkgroup Number With The [Address] Key - Icom IP501H Instruction Manual

3

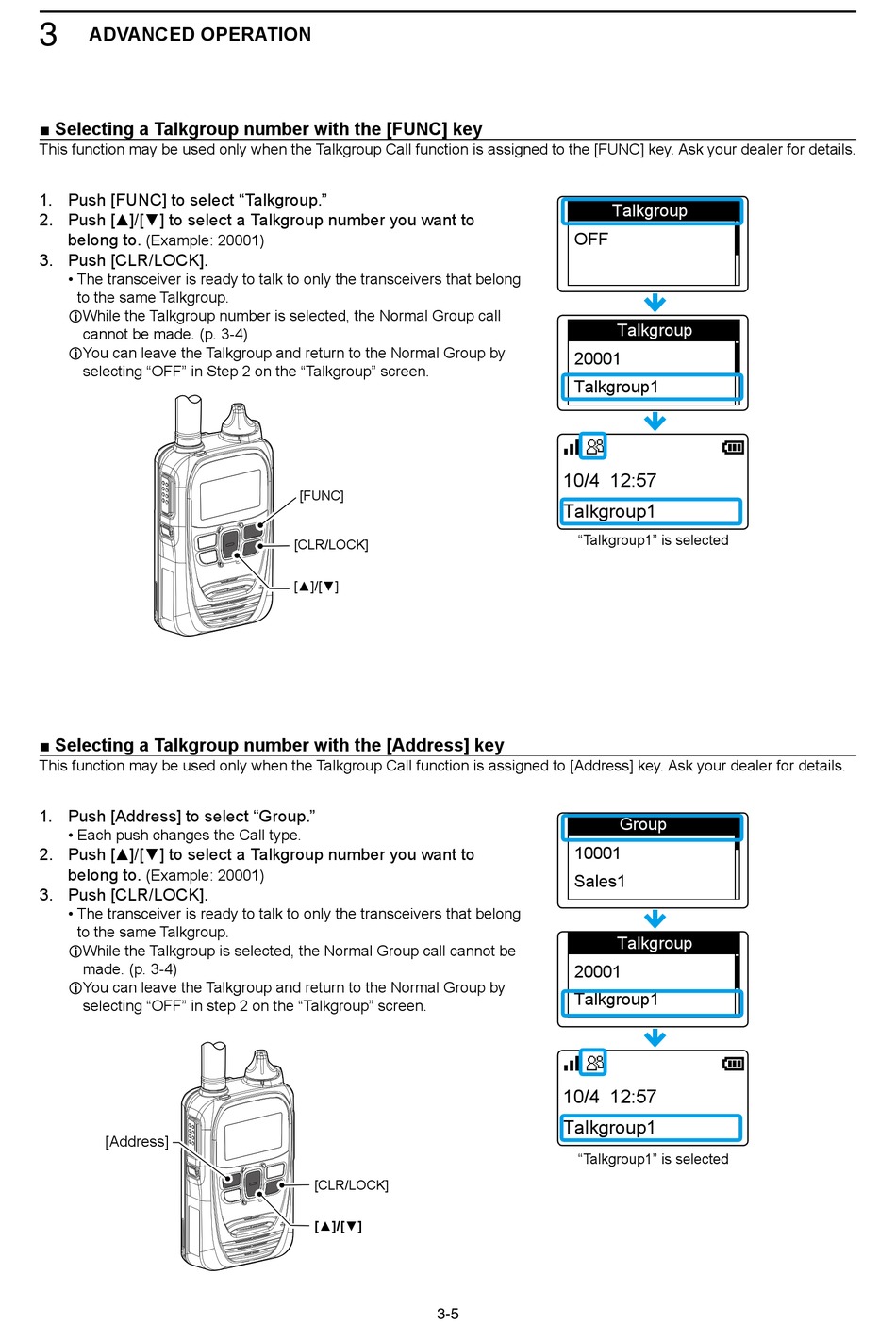

ADVANCED OPERATION

■ Selecting a Talkgroup number with the [FUNC] key

This function may be used only when the Talkgroup Call function is assigned to the [FUNC] key. Ask your dealer for details.
1. Push [FUNC] to select "Talkgroup."
2. Push [▲]/[▼] to select a Talkgroup number you want to
belong to.
(Example: 20001)
3. Push [CLR/LOCK].
• The transceiver is ready to talk to only the transceivers that belong
to the same Talkgroup.
L While the Talkgroup number is selected, the Normal Group call
cannot be made. (p. 3-4)
L You can leave the Talkgroup and return to the Normal Group by
selecting "OFF" in Step 2 on the "Talkgroup" screen.

■ Selecting a Talkgroup number with the [Address] key

This function may be used only when the Talkgroup Call function is assigned to [Address] key. Ask your dealer for details.
1. Push [Address] to select "Group."
• Each push changes the Call type.
2. Push [▲]/[▼] to select a Talkgroup number you want to
belong to.
(Example: 20001)
3. Push [CLR/LOCK].
• The transceiver is ready to talk to only the transceivers that belong
to the same Talkgroup.
L While the Talkgroup is selected, the Normal Group call cannot be
made. (p. 3-4)
L You can leave the Talkgroup and return to the Normal Group by
selecting "OFF" in step 2 on the "Talkgroup" screen.
[Address]
[ア ドレス帳]キー
[FUNC]
[CLR/LOCK]
[▲]/[▼]
[CLR/LOCK]キー
[CLR/LOCK]
[▲]/[▼]キー
[▲]/[▼]
3-5
Talkgroup
OFF
Talkgroup
20001
Talkgroup1
10/4 12:57
Talkgroup1
"Talkgroup1" is selected
Group
10001
Sales1
Talkgroup
20001
Talkgroup1
10/4 12:57
Talkgroup1
"Talkgroup1" is selected
