Charging With The Optional Bc-202Ip2; Charging With The Optional Bc-211 - Icom IP501H Instruction Manual

5

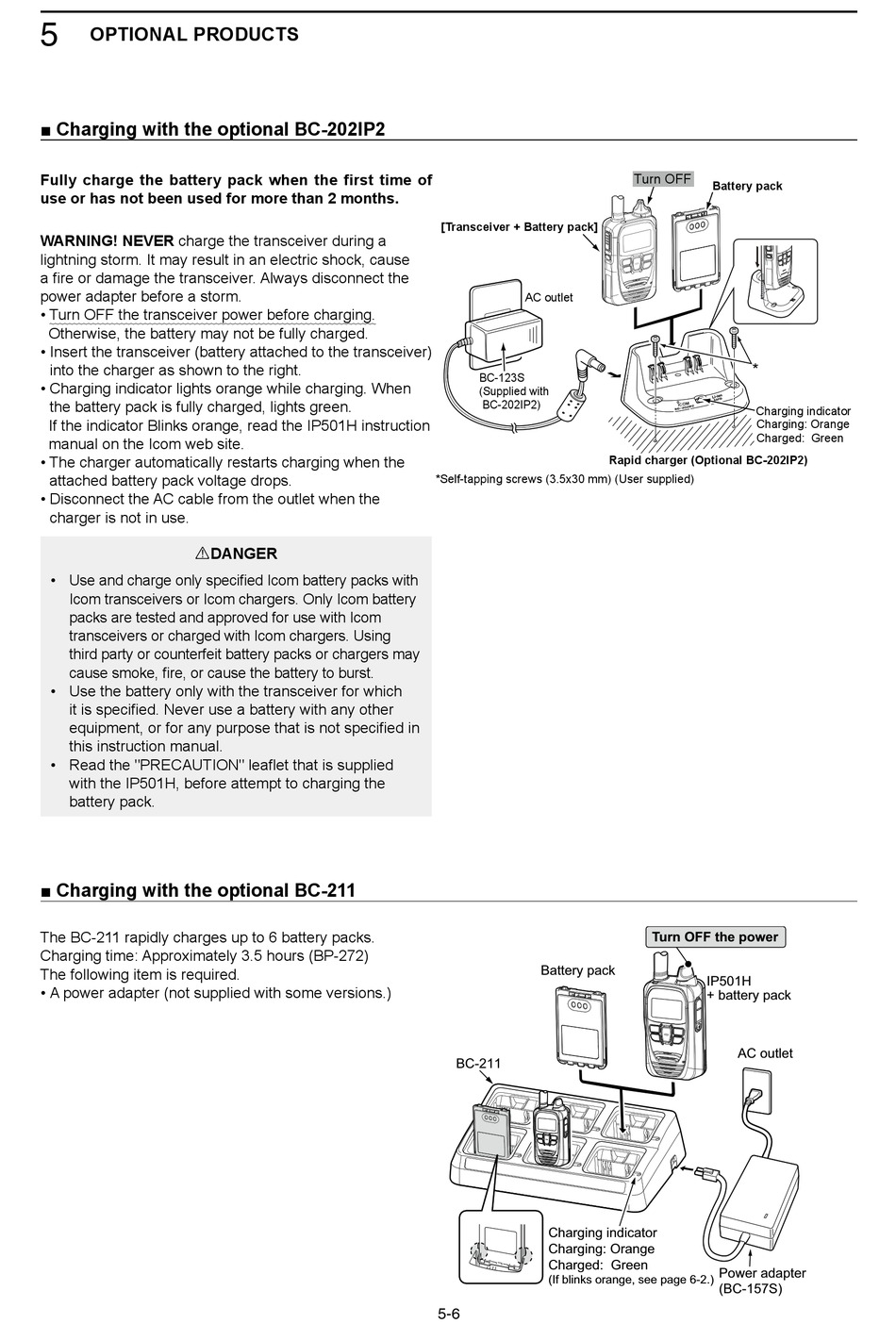

OPTIONAL PRODUCTS

■ Charging with the optional BC-202IP2

Fully charge the battery pack when the first time of
use or has not been used for more than 2 months.
WARNING! NEVER charge the transceiver during a
lightning storm. It may result in an electric shock, cause
a fire or damage the transceiver. Always disconnect the
power adapter before a storm.
• Turn OFF the transceiver power before charging.
Otherwise, the battery may not be fully charged.
• Insert the transceiver (battery attached to the transceiver)
into the charger as shown to the right.
• Charging indicator lights orange while charging. When
the battery pack is fully charged, lights green.
If the indicator Blinks orange, read the IP501H instruction
manual on the Icom web site.
• The charger automatically restarts charging when the
attached battery pack voltage drops.
• Disconnect the AC cable from the outlet when the
charger is not in use.
RDANGER
• Use and charge only specified Icom battery packs with
Icom transceivers or Icom chargers. Only Icom battery
packs are tested and approved for use with Icom
transceivers or charged with Icom chargers. Using
third party or counterfeit battery packs or chargers may
cause smoke, fire, or cause the battery to burst.
• Use the battery only with the transceiver for which
it is specified. Never use a battery with any other
equipment, or for any purpose that is not specified in
this instruction manual.
• Read the "PRECAUTION" leaflet that is supplied
with the IP501H, before attempt to charging the
battery pack.

■ Charging with the optional BC-211

The BC-211 rapidly charges up to 6 battery packs.
Charging time: Approximately 3.5 hours (BP-272)
The following item is required.
• A power adapter (not supplied with some versions.)
[Transceiver + Battery pack]
AC outlet
BC-123S
(Supplied with
BC-202IP2)
*Self-tapping screws (3.5x30 mm) (User supplied)
Battery pack
BC-211
Charging indicator
Charging: Orange
Charged: Green
(If blinks orange, see page 6-2.)
5-6
Turn OFF
Battery pack
*
Charging indicator
Charging: Orange
Charged: Green
Rapid charger (Optional BC-202IP2)
Turn OFF the power
IP501H
+ battery pack
AC outlet
Power adapter
(BC-157S)
