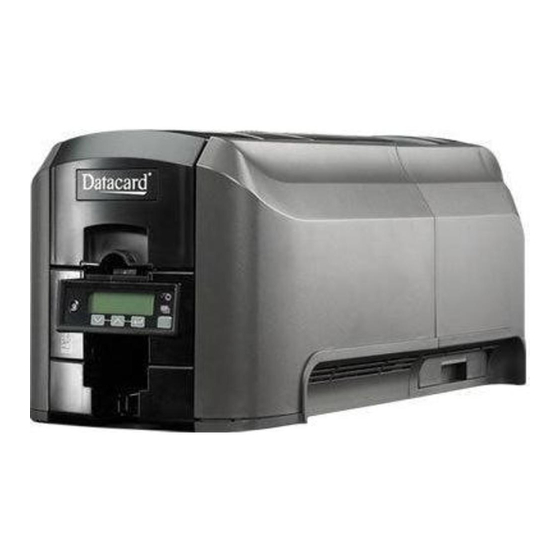

DataCard CD820 Quick Install Manual

Instant issuance system
Hide thumbs Also See for CD820:
Table of Contents

Advertisement

Quick Links

See also: User Manual
CD820™ Instant Issuance System
Quick Install Guide

Advertisement

Table of Contents
loading

Related Manuals for DataCard CD820

Summary of Contents for DataCard CD820

  • Page 1 CD820™ Instant Issuance System Quick Install Guide...

  • Page 2: Select A Location For The Printer

    Refer to the printer’s Installation and Administrator’s Guide found on the Owner’s Library CD for detailed installation instructions. The latest firmware and user documentation for your CD820 printer is available for download at www.datacard.com. 1. Select a Location for the Printer •...

  • Page 3: Set Up The Printer

    CD820 Instant Issuance System Quick Install Guide 2. Set Up the Printer a. Remove the printer from its shipping carton. Refer to the following illustration if the printer has the optional multi-hopper. CD820 Instant Issuance System...
  • Page 4 CD820 Instant Issuance System Quick Install Guide b. Unlock the printer and open the printer cover. c. If the printer has the optional multi-hopper, unlock the printer and open the printer supplies access door and the multi-hopper cover. Remove the packing material inserted behind the hopper and inside the cover.

  • Page 5: Load Supplies

    CD820 Instant Issuance System Quick Install Guide 3. Load Supplies Supplies are ordered separately. a. Remove the print ribbon cartridge. b. Load the print ribbon onto the cartridge. CD820 Instant Issuance System...
  • Page 6 CD820 Instant Issuance System Quick Install Guide c. Load the cleaning sleeve onto the ribbon cartridge. d. Install the print ribbon cartridge in the printer. e. Close the printer cover. Press down on the cover ridges to make sure that the cover latches properly on both sides.
  • Page 7 CD820 Instant Issuance System Quick Install Guide Load cards in the hopper. Single Hopper Multi-Hopper g. Close the printer doors and lock the printer. CD820 Instant Issuance System...

  • Page 8: Plug In And Power On The Printer

    CD820 Instant Issuance System Quick Install Guide 4. Plug In and Power On the Printer a. Connect the printer power cord to the printer and to the power supply. b. Plug the power supply cord into the power outlet. c. Press the power button on the front panel to power on the printer.
  • Page 9 CD820 Instant Issuance System Quick Install Guide 5. Activate the Printer Through the Front Panel a. Before you start the activation process, call Datacard Technical Support at 1-800-328-3996 to obtain the activation code. b. Have your printer’s serial number ready when you call.
  • Page 10 CD820 Instant Issuance System Quick Install Guide c. Enter the activation code. CD820 Instant Issuance System...

  • Page 11: Set A Static Ip Address

    CD820 Instant Issuance System Quick Install Guide 6. Set a Static IP Address Datacard CardWizard issuance software requires the ® ® printer to have the same IP address at all times. a. Obtain the following information from your system administrator:...
  • Page 12 CD820 Instant Issuance System Quick Install Guide c. Follow the same process to enter the subnet mask and gateway address. d. Refer to the printer’s Installation and Administrator’s Guide to configure the computer connection to the printer. CD820 Instant Issuance System...
  • Page 13 CD820 Instant Issuance System Quick Install Guide 7. Print a Test Card (Optional) Use the printer’s LCD panel to print a test card: CD820 Instant Issuance System...

  • Page 14: Next Steps

    CD820 Instant Issuance System Quick Install Guide 8. Next Steps • Define the printer to CardWizard software. Refer to the CardWizard and Card Printer Setup Guide for information. • Contact your system administrator to set up the rest of the system.
  • Page 15 CD820 Instant Issuance System Quick Install Guide Notes CD820 Instant Issuance System...
  • Page 16 952.933.1223 • 952.933.7971 Fax www.datacard.com/id Datacard is a registered trademark and service mark of Entrust Datacard Corporation, and Entrust is a registered trademark and service mark, in the United States and other countries. All other trademarks are the property of their respective owners.
