DataCard CD820 User Reference Manual
Hide thumbs
Also See for CD820:
- User manual (72 pages) ,
- Installation and administrator's manual (130 pages) ,
- Quick install manual (17 pages)
Related Manuals for DataCard CD820
Summary of Contents for DataCard CD820

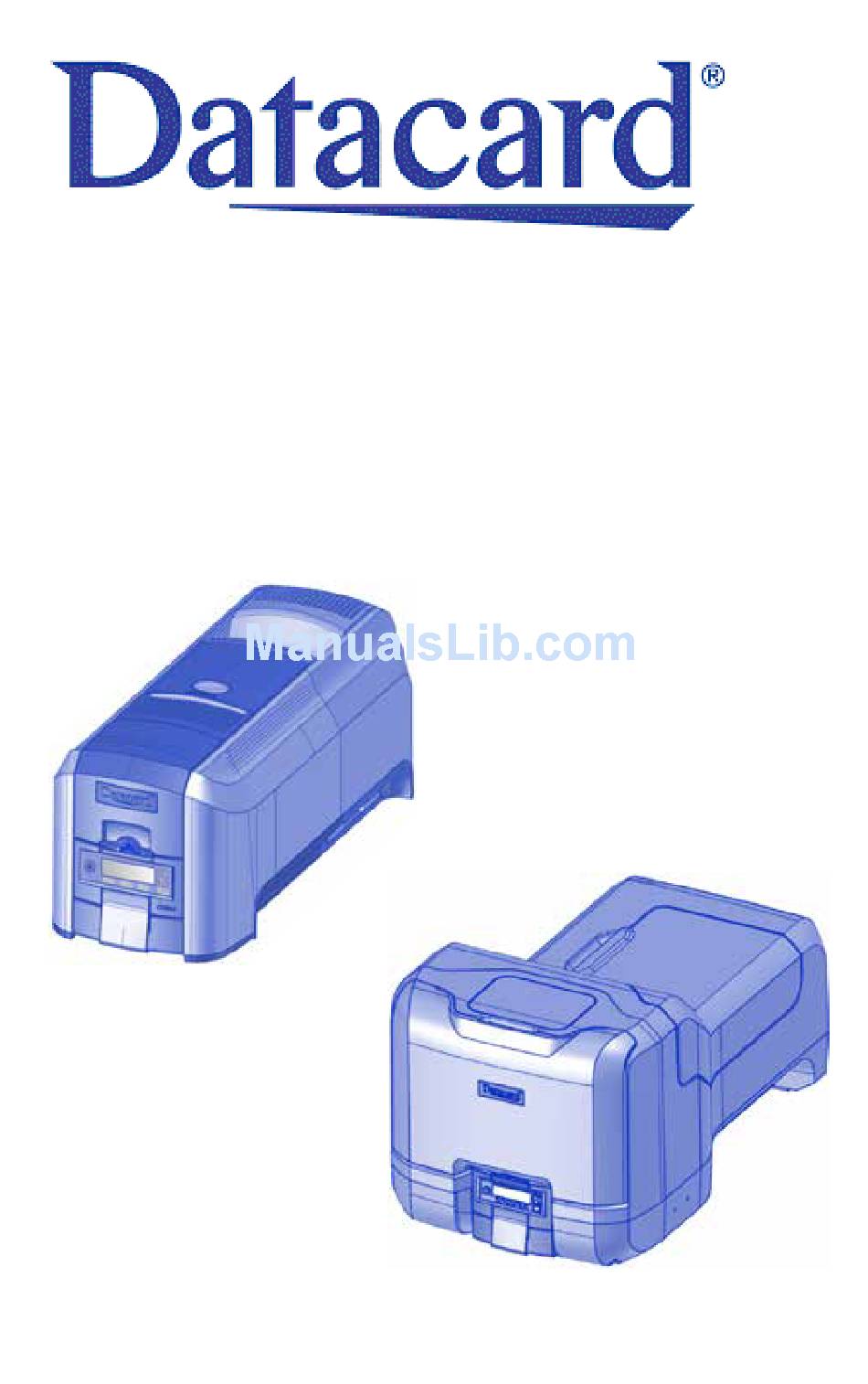

- Page 1 Datacard® CD820™ Card Printer User Reference Guide September 2015 527715-001 Rev A Single-Hopper Printer Multi-Hopper Printer...
-
Page 2: Table Of Contents
Datacard CD820 User Reference Guide The CD820 Card Printer Contents The CD820 Card Printer The CD820 Card Printer ................3 Common LCD Messages ................4 102: Card not in position ..................4 103: Printer problem ................... 4 104: Critical problem ................... 4 105: Magstripe data error ................... -
Page 3: Common Lcd Messages
This section describes some of the common messages that may display. Use magnetic stripe cards that match the printer settings. Refer to “The CD820 Card Printer” on page 3 for the location of the system Make sure that the cards are positioned in the printer correctly. -
Page 4: 114: Cover Opened During Job
Datacard CD820 User Reference Guide Common LCD Messages 172: Insert cleaning card 114: Cover opened during job Cause: The printer is ready to be cleaned. Cause: The printer cover was opened while printing. • If the cleaning card is in the input hopper, press the USER button. -
Page 5: Clean The Printer
Datacard CD820 User Reference Guide Clean the Printer Clean the Printer Clean the Printer Enter the menu system. Prepare the Printer for Cleaning Follow the steps on the LCD panel (refer to the following illustration). Press the USER button to start the cleaning cycle when “Insert cleaning card”... -
Page 6: Clean The Multi-Hopper Rollers
Datacard CD820 User Reference Guide Load Cards Load Cards Clean the Multi-Hopper Rollers Unlock and open the input hopper cover. • Fan the cards to separate the edges. Load cleaning cards into each hopper. • Insert ISO magnetic stripe cards with the stripe facing down and to the right. -
Page 7: Load The Print Ribbon
Datacard CD820 User Reference Guide Replace the Cleaning Sleeve Load the Print Ribbon Replace the Cleaning Sleeve Unlock the printer and open the printer supplies access door (multi-hopper) Unlock the printer and open the printer supplies access door (multi-hopper). Press the latch button to open the printer swingarm. -
Page 8: Empty The Reject Card Tray
Datacard CD820 User Reference Guide Close the Printer Doors Empty the Reject Card Tray Close the Printer Doors Empty the reject card tray regularly. Follow your site’s guidelines to dispose of the The printer cannot process cards while any access doors are open. Make sure that cards removed from the reject card tray. -
Page 9: Check Power Connections
Datacard CD820 User Reference Guide Check Data Connections Check Power Connections Check Data Connections Make sure that all power cables are securely connected. Make sure that all data cables are securely connected. Single-Hopper Power Connections Single-Hopper Printer Network Connection Multi-Hopper Printer... -
Page 10: Notes
Datacard CD820 User Reference Guide Notes Notes... - Page 11 1187 Park Place Shakopee, Minnesota 55379 952.933.1223 • 952.933.7971 Fax www.datacard.com/id © 2015 Entrust Datacard Corporation. September 2015 All rights reserved. 527715-001 Rev A...
