No more than four dryers (three AD-170SE) should be commonly vented.
The individual ducts should enter the bottom or side of the main duct at an angle of not more than 45° in the direction of airflow. The
main duct diameter should increase before each individual duct is added.

Electrical Information (50Hz) ___

Electric installation must be performed by qualified
personnel in accordance with national and local
safety regulations.
The dryer must be electrically earthed (grounded) in accordance
with national and local codes.
Individual earth circuit must be provided to each dryer.
Failure to properly earth the dryer will void the warranty.
An external means of power removal (disconnect device) must
be provided.
Each dryer should be connected to a properly sized, and
independently protected, branch circuit.
The electric supply must match exactly what is specified on
the dryer's rating plate (data badge).
Electrical Connections
The electrical input connections are made into the rear of the
dryer (refer to the Technical Specifications page).
A strain relief must be used where wires enter the dryer.
8
AD-170 can only have
3 units connected with
common venting

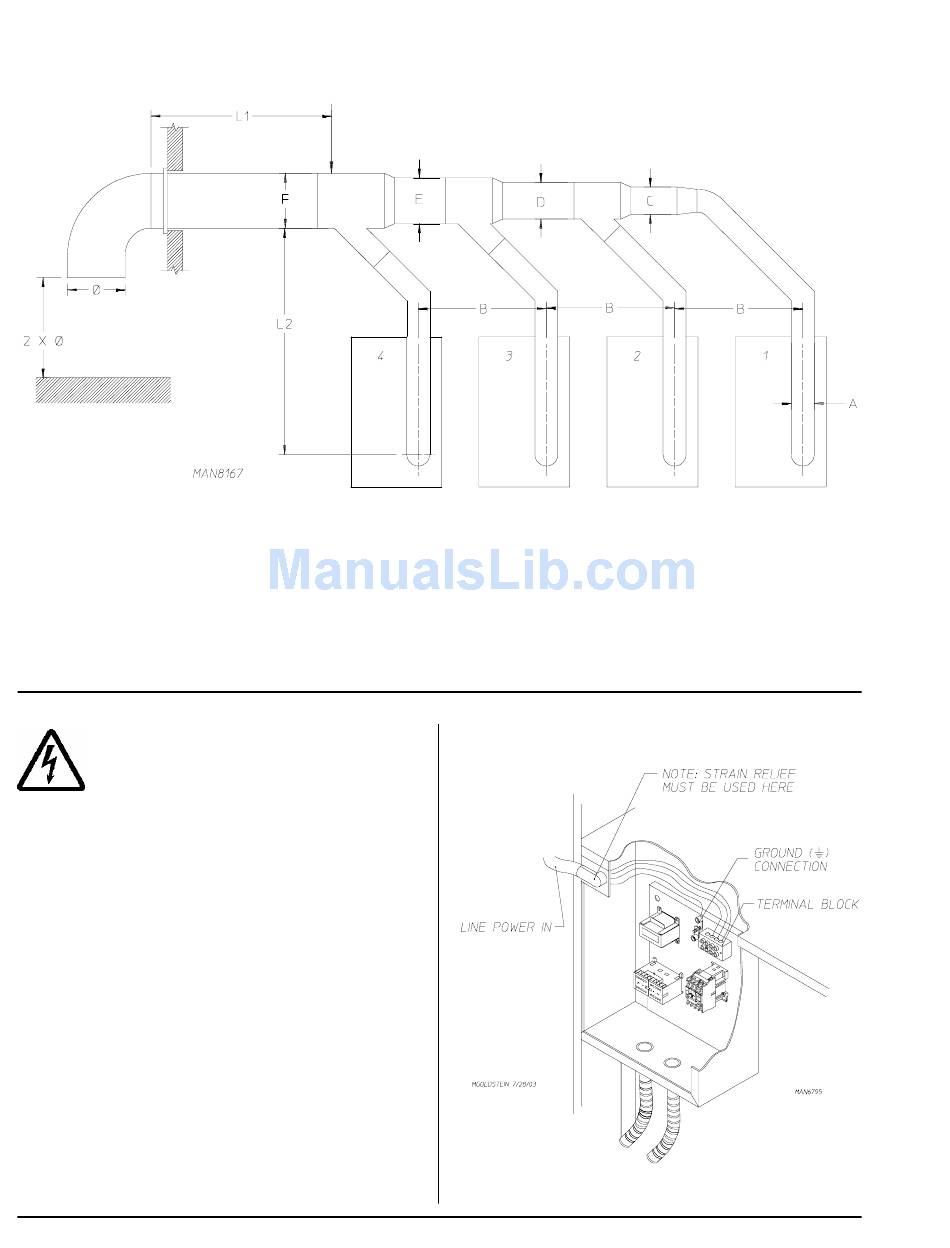

Multiple Dryer Venting – Through End Wall
