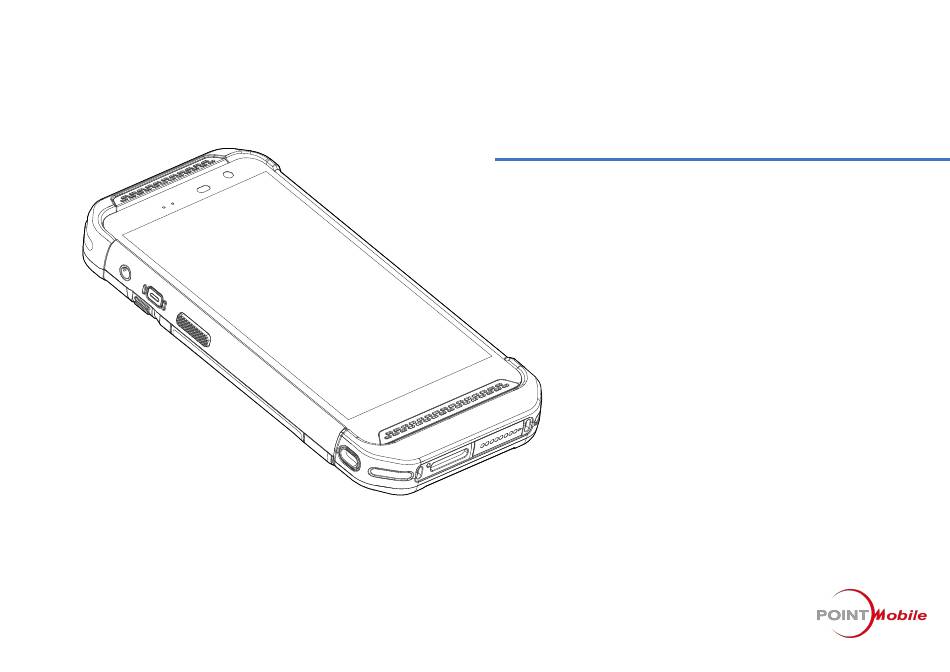

Quick Start Guide
PM86
V1.0, Aug 2023
Copyright © 2023 Point Mobile Co., Ltd. All rights reserved.
Point Mobile Co., Ltd. is the designer and manufacturer of mobile handheld devices.
The Point Mobile logo is a registered trademark and symbol of Point Mobile Co., Ltd.
Features and specifications are subject to change without prior notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Point Mobile PM86
Summary of Contents for Point Mobile PM86
- Page 1 Copyright © 2023 Point Mobile Co., Ltd. All rights reserved. Point Mobile Co., Ltd. is the designer and manufacturer of mobile handheld devices. The Point Mobile logo is a registered trademark and symbol of Point Mobile Co., Ltd. Features and specifications are subject to change without prior notice.
-
Page 2: Device Parts
Device Parts Receiver LED indicator Audio jack Power button Scan button (Left) Microphone I/O connector for cradle Speaker Touch screen Front camera... - Page 3 Device Parts Rear I/O connector Hand strap hole Battery release button Scanner Rear camera & Flashlight Volume buttons Scan button (Right) Battery USB connector...
-
Page 4: Battery Replacement
Product Standard Accessories Battery Replacement Insert Battery 1. Insert the battery from the bottom side (opposite side of the battery release buttons). 2. Push the battery down until it clicks. Confirm that the battery release buttons are completely outward. Battery pack 5V 2A power adapter Remove Battery 1. -
Page 5: Install Sd Card
Supported Cards & Card Slot Cover Install SD Card PM86 provides 1. Gently slide the card holder left, and swing upwards to open the holder. • 1 microSD card slot 2. Put the SD card with the contacts facing down, close the holder, •... -
Page 6: Install Sim Card
< Note > PM86 LTE + SAM SKU includes two SAM slots, on the top and bottom. All direction to open/close the cardholders are opposite each other. The figures indicate the top SAM slot. -
Page 7: Turning On/Off
1. Assemble the AC plug, power adapter and USB cable. 2. Connect the cable to the USB connector of PM86. Press and hold the power button on the left side of the PM86 until SMART BEYOND RUGGED logo displays on the screen. -
Page 8: Led Indicator
LED Indicator Scan a Barcode Scanner is disabled by default, so enable the scanner from ScanSettings first. Check if the scanner icon is placed on the Status bar. Then, press a scan button on the device to scan a barcode. No Indicator Status Indication...
