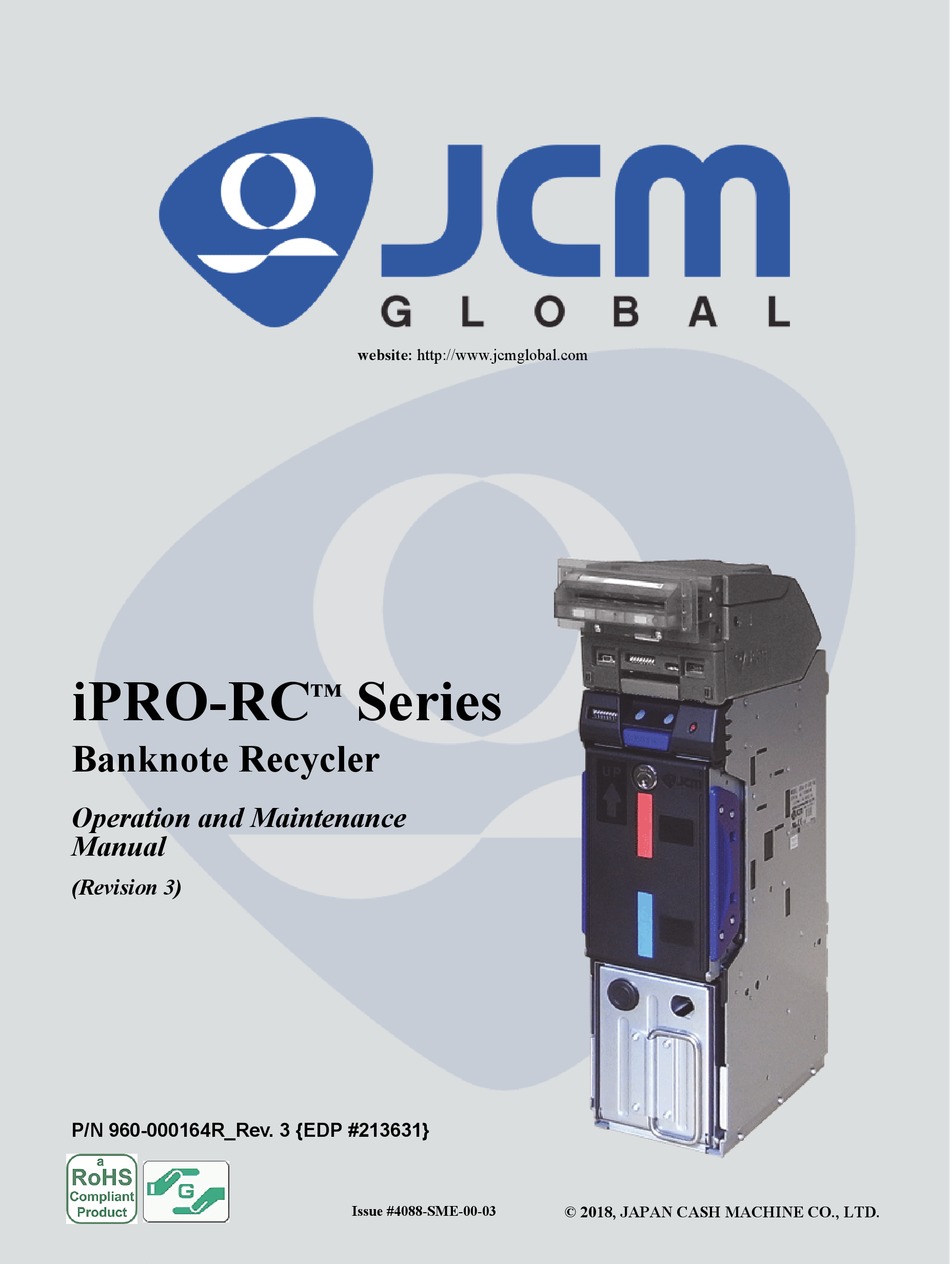

iPRO-RC
Series
™
Banknote Recycler
Operation and Maintenance
Manual
(Revision 3)
P/N 960-000164R_Rev. 3 {EDP #213631}
Issue #4088-SME-00-03
© 2018, JAPAN CASH MACHINE CO., LTD.
