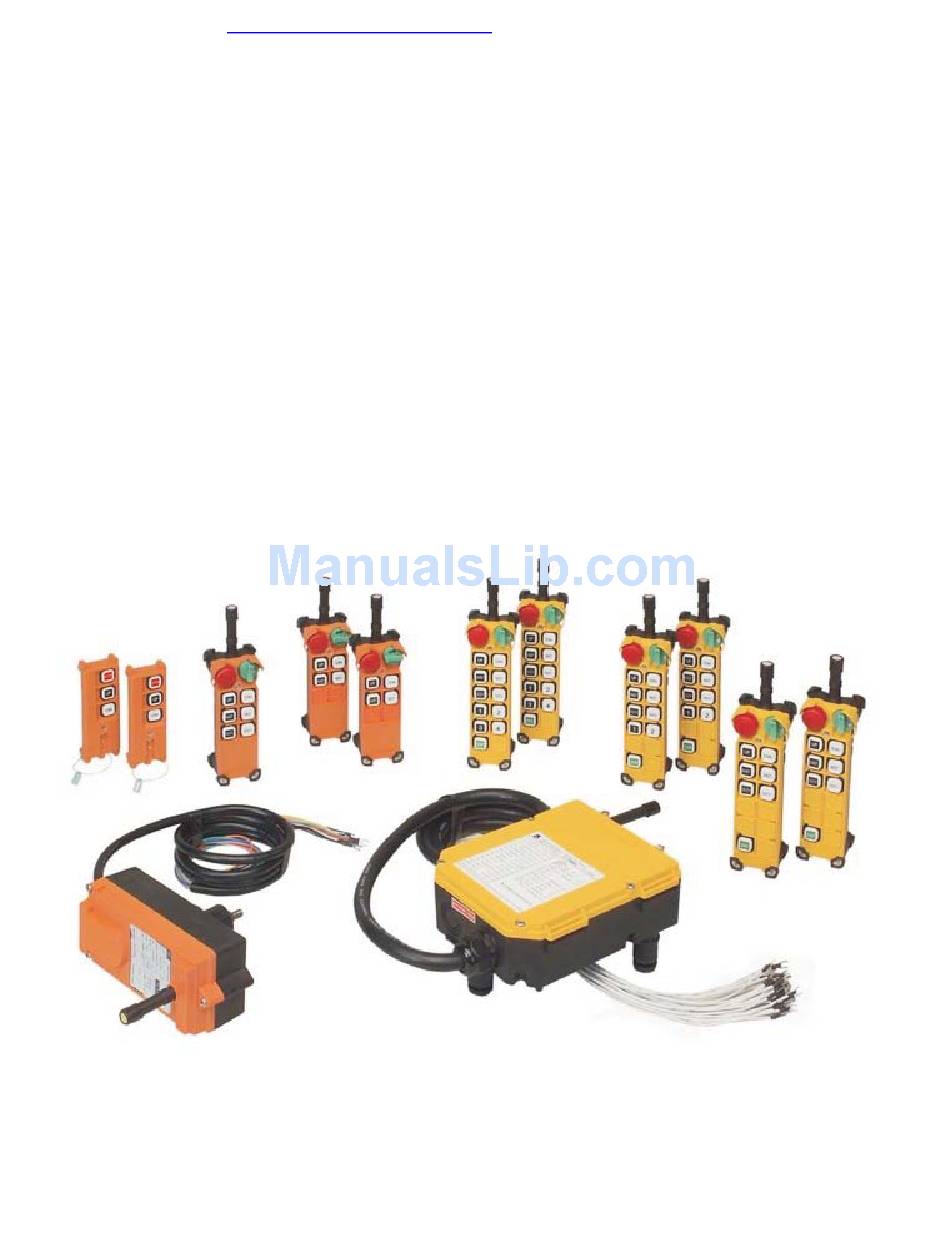

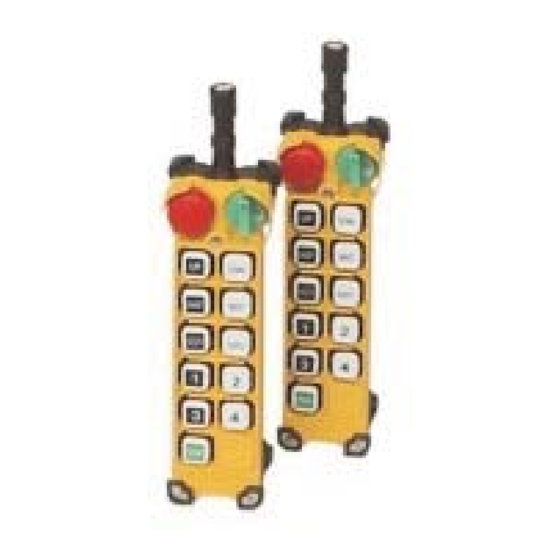

- Page 1 Provided by: www.hoistsdirect.com Telecrane Radio Remote Control F21 Series & F24 Series Manual Rev. 1d June 22, 2006 Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
-
Page 2: Table Of Contents
Telecrane F21 Series & F24 Series Manual Chapter Index Page General Specifications 1.0 Installation Instructions 2.0 Operation Instructions 3.0 Safety 4.0 Troubleshooting on Installation 5.0 Programming 6.0 Product Selection Guide 7.0 Product Options 8.0 Receiver Wiring Diagrams Program and Button Labeling... - Page 3 This Page Intentionally Left Blank...
- Page 4 Technical Specifications for : F21-2S, 2D, 4S, 4D, 6S and F24-6S, 6D, 8S, 8D, 10S, 10D Receiver input voltage: 110 volts AC. Other Input voltages available 220 VAC, 12V AC/DC, 24 VAC/DC Temperature: -35 deg C to 75 deg C (-31 deg F to 167 deg F) Receiver relay ratings: the receiver relays are rated at 10 amps at 250 volts AC.
- Page 5 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following information applies to receivers: Models F21-2S and F21-2D, Models F21-4S and F21-4D, Model F21-6S, Models F24-6S and F24-6D,...
-
Page 6: Installation Instructions
1.0 Installation Instructions: The F21 and F24 receivers should be mounted in a location that is convenient to the control box and is securely attached to the equipment. The F21 receiver measures 7.37” L x 3.37” W x 7.10” D and is mounted by drilling one 5/16” (8mm) hole and the F24 receiver measures 10” L x 6.5”... -
Page 7: Operation Instructions
¼ turn. For protection from fire hazard, damage, or injury, always replace a blown fuse with one of the same rating. 2.3 Start Procedure for the F21-2S and F21-2D: 1. Put the green magnetic safety key into its slot in the front of the transmitter. - Page 8 3. Press the STOP button to stop movement immediately and drop out the mainline contactor, if one is used. 4. Remove the green magnetic safety key whenever the transmitter is not in use to prevent unintentional operation. 2.4 Start Procedures for the F21-4S, F21-4D, F21-6S: 1.
-
Page 9: Safety
Following are a list of safety rules that must be followed when working with TELECRANE products, as well as cranes and industrial equipment in general. This list is not intended to be all- inclusive. - Page 10 The safety key should be removed from the transmitter whenever it is not in use and should only be issued to authorized personnel. All TELECRANE Radio Remote Controls are tested before they leave the factory. However, they should not be used in dangerous situations or in a manner such that damage might result.
- Page 11 Power should be shut off to the crane or equipment before any maintenance begins, unless absolutely required for troubleshooting the unit. When the power is on, use extreme caution. High voltage or unexpected movement could cause death or severe injury. Only certified maintenance personnel should attempt a repair more involved than the swapping of printed circuit boards.
-
Page 12: Programming
5.0 Programming options: 5.1 All units: Auto-shut-down time. An auto-shut-down feature is available on all models. If the radio has not been used for a period of time the receiver automatically drops out the main line contactor. The default setting is 1 hour for the F24 Series and “Never” for the F21 Series. - Page 13 5.4 Other Programming options for the F24 UP/DOWN 2 Step Buttons: − Dual Motor. When the first detent of the button is reached the first step relay turns ON, when the button is fully depressed the second step relay turns ON and the first step relay turns OFF.
-
Page 14: Product Selection Guide
Complete Systems Typical Applications Number of Control Number of Model Motion Buttons Voltage Transmitters & Steps F21-2S Hoist, winch, lifts, doors, 2 button, 1 step 110-220VAC conveyors etc… F21-2S-DC Truck Equipment, winches, 2 button, 1 step 12-24 V hoists, etc…... - Page 15 6.2 F-24 Models Complete Typical Applications Number of Control Voltage Number of Systems Motion Buttons Transmitters Model & Steps F24-6S Overhead cranes, dual hoist 6 button, 1 step 110-220VAC monorails, etc… F24-6D Overhead cranes, dual hoist 6 button, 2 step 110-220VAC monorails, etc…...
-
Page 16: Product Options
(line of sight). Call factory for details. 1-800-382-3558 Cables are available as well for mounting the stock antenna outside an enclosure. Call Factory for details. 1-800-382-3558 F21 & F24 Spare Transmitters Spare Transmitter Works with Models Model Numbers F21-2S-TX F21-2S F21-2S-2TX F21-2S-DC F21-2S-DC-2TX F21-4S-TX F21-4S... - Page 17 This Page Intentionally Left Blank.
- Page 18 F21 & F24 Series Wiring Diagrams F21 Series available in 12-24VDC control input in place of 110VAC standard. Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
- Page 19 This page intentionally left blank.
- Page 20 NOTES: For each button there is a default function setting labeled in bold, if you wish to change any button function check the appropriate circle for that button. If you want to re-label any button, fill in the squares in the appropriate section. Use only the squares available. Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
- Page 21 This page intentionally left blank.
- Page 22 NOTES: For each button there is a default function setting labeled in bold, if you wish to change any button function check the appropriate circle for that button. If you want to re-label any button, fill in the squares in the appropriate section. Use only the squares available. Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
- Page 23 This page intentionally left blank.
- Page 24 NOTES: For each button there is a default function setting labeled in bold, if you wish to change any button function check the appropriate circle for that button. If you want to re-label any button, fill in the squares in the appropriate section. Use only the squares available. Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
- Page 25 This page intentionally left blank.
- Page 26 NOTES: For each button there is a default function setting labeled in bold, if you wish to change any button function check the appropriate circle for that button. If you want to re-label any button, fill in the squares in the appropriate section. Use only the squares available. Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
- Page 27 This page intentionally left blank.
- Page 29 This page intentionally left blank.
- Page 30 NOTES: For each button there is a default function setting labeled in bold, if you wish to change any button function check the appropriate circle for that button. If you want to re-label any button, fill in the squares in the appropriate section. Use only the squares available. Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
- Page 31 This page intentionally left blank.
- Page 32 NOTES: For each button there is a default function setting labeled in bold, if you wish to change any button function check the appropriate circle for that button. If you want to re-label any button, fill in the squares in the appropriate section. Use only the squares available. Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
- Page 33 This page intentionally left blank.
- Page 34 NOTES: For each button there is a default function setting labeled in bold, if you wish to change any button function check the appropriate circle for that button. If you want to re-label any button, fill in the squares in the appropriate section. Use only the squares available. Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
- Page 35 This page intentionally left blank.
- Page 36 NOTES: For each button there is a default function setting labeled in bold, if you wish to change any button function check the appropriate circle for that button. If you want to re-label any button, fill in the squares in the appropriate section. Use only the squares available. Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
- Page 37 This page intentionally left blank.
- Page 38 NOTES: For each button there is a default function setting labeled in bold, if you wish to change any button function check the appropriate circle for that button. If you want to re-label any button, fill in the squares in the appropriate section. Use only the squares available. Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
- Page 39 This page intentionally left blank.
- Page 40 NOTES: For each button there is a default function setting labeled in bold, if you wish to change any button function check the appropriate circle for that button. If you want to re-label any button, fill in the squares in the appropriate section. Use only the squares available. Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
- Page 41 Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM...
