Page 1: Operating Instructions
F24 Series Operating Instructions TELECRANE ® Lee’s Hi-Tech Ent. Co., Ltd. - Page 2 Table of Contents Warranty & Precautions of Operation..………….………..2 F24 Operation………………...……………….…..………3 Appendix I: Definition of Function Terminology…………4...
- Page 3 During the warranty period, TELECRANE is responsible for necessary repairs as long as the product can be proved to be defective. For warranty service or repair this product must be returned to a service facility designated by TELECRANE. Buyer will pay shipping charges to TELECRANE while TELECRANE will pay return shipping charges.
-
Page 4: Transmitter Batteries

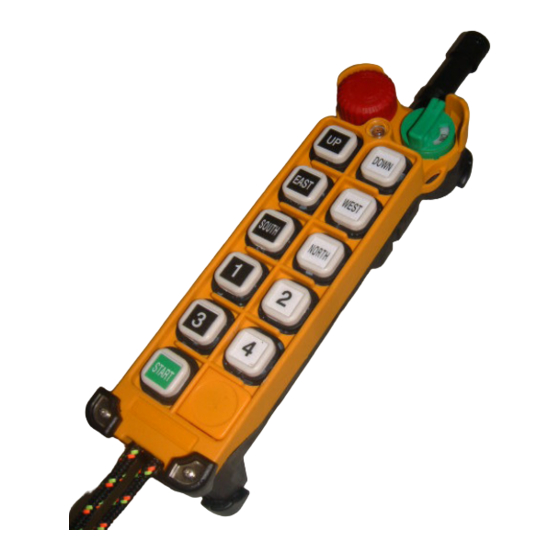

F24 Operation How to start ! Insert 2 AA-size alkaline batteries into battery compartment. Insert rotary key and switch to ON position. Follow the Power-On procedure to energize the main relay inside receiver. Operate normally according to the function settings have been done. After operation, please proceed as following: (1) Press EMS pushbutton /mushroom, (2) remove the key and keep it in safe place, (3) Switch off the equipment’s main power (e.g. - Page 5 (Annex I) Definition of Function Terminology Normal The relative relay is “ON” when the pushbutton is pressed and held; and relay is “off” when the pushbutton is released. Toggle Maintained function: the relay is operated by pressing and releasing; press and release again to turn off the relay.
- Page 6 Interlock Delay Time “Interlock Delay Time” is delay time between 2 opposite pushbuttons are being press one after another. !i.e.: while crane is moving one direction (forward), moving opposite direction (backward) immediately would be dangerous specially when crane is hooking up the heavy object.
- Page 7 Passive Act This function ensures safe operations, including when there are disturbances that may affect the normal operating conditions. This assures that when the machine operates, the control is not subject to temporary and unexpected stops. Possible short interferences are bypassed. The passive act can be select in 2 mode as below, “Ry Off”...
- Page 8 FCC Caution: 1. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
