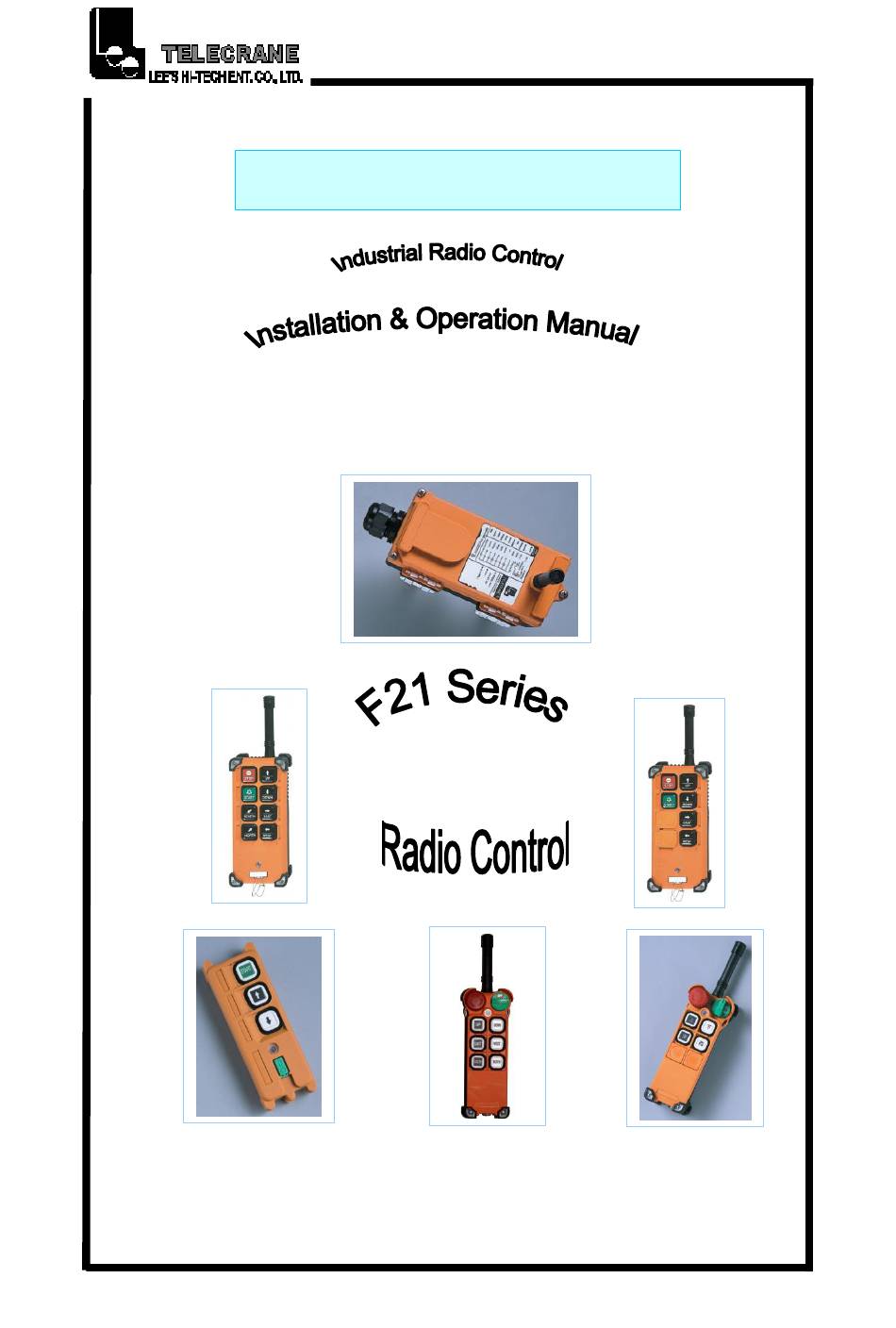

- Page 1 F21-2S/2D/4S/4SB/4D/E1/E1B...
-
Page 2: Table Of Contents
Table of Contents Chapter 1 Warranty ------------------------------------------------ 2 Chapter 2 Attention & Precaution ------------------------------- 3 Chapter 3 Installation & Operation ------------------------------ 4 Chapter 4 Software Installation ---------------------------------- 8 Chapter 5 Software Instruction ---------------------------------- 11 Chapter 6 Supplement -------------------------------------------- 25... -
Page 3: Chapter 1 Warranty
This equipment is warranted against defects in material and manufacturing for a period of one year from the date of shipment. During the warranty period, TELECRANE is responsible for necessary repairs as long as the product can be proven to be defective. -
Page 4: Chapter 2 Attention & Precaution
◎ Never dismantle the equipment by any unauthorized personnel, or it may be damaged. ◎ After finishing operation of TELECRANE shut off main power to the crane, power to receiver, and remove transmitter key. If the transmitter’s power is controlled by a rotary key switch, turn the key to “OFF”... -
Page 5: Chapter 3 Installation & Operation
In case of an Emergency, please follow the steps below and ask a distributor for service immediately. A. Press EMS button. B. Turn the rotary key switch to the “OFF” position and remove the magnetic key out of the transmitter. C. - Page 6 B. There are five different transformer with different voltages for the AC power supply containing AC24/48, 48/110, 48/220, 110/220 and 220/380V, each transformer has two kind of voltage which will be selected by a Jumper set at HI or LO position on the pc board as shown on the following Fig.
- Page 7 (4) Insert the new crystal unit vertically into the PC board. (5) Press the new crystal down into the socket. The frequencies shown on the same Crystal for the transmitter and receiver will be different as below: If this crystal is used for the transmitter, then the frequency is 321MHz for the T: 321MHz transmitter.
- Page 8 LED Malfunction Alert A. TX red LED is flashing quickly when any function pushbutton is pressed, then the problem could be: (a) One of the pushbutton is jammed. (b) The EMS mushroom has not been released. (c) The system is not properly powered on according to the instructions.
-
Page 9: Chapter 4 Software Installation
Chapter 4. Software Installation The installation function will run automatically after inserting the software program CD into CD ROM. Note: If the installation function doesn’t work automatically, please click “SETUP.EXE” in “My Computer” to complete the software program installation. 1-1-1. The software installation process is illustrated below: a. - Page 10 b. Click “OK” and continue the installation. c. Click the Computer-like “icon” and continue the installation.
- Page 11 d. Select a title from “Existing Group” or renew a title in “Program Group” and click ”Continue". e. In process of copying all files of the installation program. f. The software program installation is completed.
-
Page 12: Chapter 5 Software Instruction
1-2. Preparation and Precaution a. Connect one of the end 25-pin interface (program) cable with the RS232 port on PC/Laptop. (Note: it isn’t the PRINT port.) Using the adapter or extending wire cable if necessary. The other end of the 6-pin interface (program) cable will be connected with the Transmitter or Receiver when reading and writing the data. - Page 13 1-2. The main page for Function Setting is shown as below. 1-3. Click “Tools” and go to “Language” to select other one if necessary. 1-4. For instance, select “E1_CHT.ini”.
- Page 14 1-5. The words of Software program are shown in Chinese. 1-6. Select the correct COM PORT. 1-7. It is shown as below after clicking “Read R/C”.
- Page 15 1-8. “Read R/C” is completed. 1-9. The message will pop up if one of the following item is occurred. a. At an incorrect COM PORT b. Interface (program) cable is disconnected. c. Interface (program) cable is loose. d. Interface (program) cable is broken. e.
- Page 16 “YES” to continue or “NO” to stop writing the data. 1-11. In process of writing the data. 1-12. “Write R/C” is completed.
- Page 17 1-13. “File”: Select “load”, “save”, “printer” or “exit”. 1-14. “Tools”: Select “Read setup data”, “Write setup data” or “Language”. 1-15. “Page”: Select “Setup Page” or “User Page”. 1-16. “About”: Check the version of the software program. 1-17. “Function Setting”: Read or write the data. 1-18.
- Page 18 1-20. “Save”: Save the updated data. 1-21. “Printer”: Print out an in-use page. 1-22. “Com Port”: Click and select a Com Port on PC/Laptop the Interface (program) cable is connected with. 1-23. “Start Key Function”: Select “Normal”, “Toggle”, “Inching” or “EMS(STOP)”.
- Page 19 conducted within a certain time, in order to operate with short and precision movement. d. “EMS(STOP): This function is only selected by F21-2S/2D. If set “EMS(STOP), the “Power On Mode” must be set as “Any Pushbutton”; if not, the magnetic key substitutes for the function of “EMS(STOP)”.
- Page 20 b. “Start pushbutton/Key”: Pull out EMS button (mushroom) and turn Rotary key switch to “on” position (for F21-2S/2D/4SB/E1B, release EMS(STOP) button and insert Magnetic key in its slot in the Transmitter), the receiver will be “Power On” once Rotary key switch is turned to “start” position (for F21-2S/2D/4SB/E1B, once Start pushbutton is pressed).
- Page 21 1-28. “Auto Off Time(TX)”: This function is only available when the “YES” mode of “Continuous(TX)” is selected. a. The transmitter will power off itself after a given idle time for saving Transmitter’s battery power. b. Whether the transmitter will send the signal to power off the MAIN relay in the receiver or not, that would be verified by the function of “Auto Off(EMS) set on “YES”...
- Page 22 b. “NO”: The transmitter’s green LED won’t glow when transmitting. But the transmitter’s red LED will glow if an warning occurs. 1-31. “LED Off Time”: This function is only available when the “YES” mode of “LED On/Off” is selected. The interval time can be selected from 0 ~ 4 seconds and the LED glowing time is fixed at 0.4 second a time.
- Page 23 1-36. “Select”: After clicking “Select”, the function modes will appear for selecting. 1-37. The function modes contain “Normal”, “Interlock”, “Non- Interlock”, “Toggle”, “Control by EMS”, “Bypass EMS”, “On”, “Off” and “Combination” etc. a. ”Normal”: The relative relay is “ON” when the pushbutton (rotary key switch) is pressed (turned) and held;...
- Page 24 remain its status as well. g. “On & Off”: Both pushbuttons are used to operate the same relay. Press the “On” pushbutton to activate and the “Off” pushbutton to de-activate the same relay. h. “Combination”: When 2 pushbuttons are being pressed simultaneously, it would result for an additional relay output (as toggle) to suit some of the special application such as lighting...
- Page 25 1-40. “Passive Act”: This function ensures safe operations, including when there are disturbances that may affect the normal operating conditions. This assures that when the machine operates, the control is not subject to temporary and unexpected stops. Possible short interferences are bypassed. The passive act can be selected in 2 modes as below.
- Page 26 1-43. “EXIT”: Click “EXIT” to close software program. Remark: 1. After function settings is done, respectively write the same to both Transmitter and Receiver. 2. Save function-setting and user-information prior to shipment.
-
Page 27: Chapter 6 Supplement
Chapter 6. Supplement Independent COM Line The new F21 crystal series provides the option of independent (separate) COM lines for each model as below: **F21-E1/E1B: 4 independent COM lines (Up/Down, East/West, South/North and R0) **F21-4D: 3 independent COM lines (Up/Down & U/D 2S, East/West &... - Page 28 (b) To avoid any interference during remote setting, place the transmitter to RX as close as possible. (c) Turn off the RX power completely (MAIN SWITCH) for 20 seconds and turn it on again. (d) Complete the remote setting within 4 minutes after turning on the RX.
