Skymsen LAR-15LMB-HD Instruction Manual

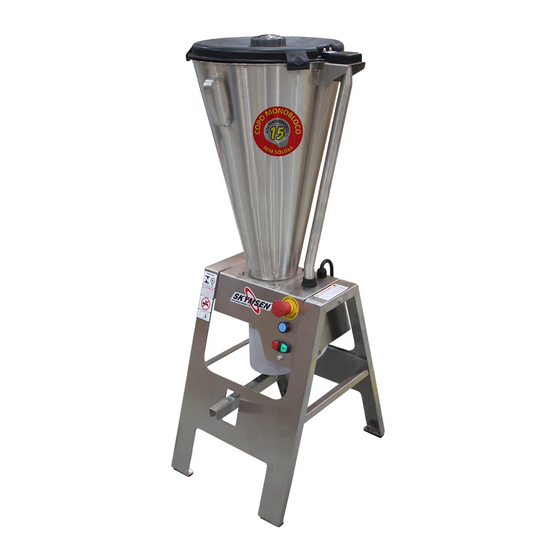

Commercial blender, tilting, stainless steel base and cup, lid with safety system, heavy duty, 15 and 25 liters
Hide thumbs Also See for LAR-15LMB-HD:
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
METALÚRGICA SIEMSEN LTDA.
CNPJ: 82.983.032/0001-19
Rodovia Ivo Silveira - km 12, nº 9525, Galpão 1 - Bairro: Bateas - CEP: 88355-202
Brusque - Santa Catarina - Brasil
Fone: +55 47 3211 6000 - Fax: +55 47 3211 6020
www.siemsen.com.br - comercial@siemsen.com.br
57887.8 - ENGLISH/ESPANOL
Data de Correção: 18/05/2016
- BESIDES THIS EQUIPMENT, A COMPLETE RANGE OF OTHER PRODUCTS ARE MANUFACTURED, CONSULT OUR DEALERS.
- DUE TO THE CONSTANT IMPROVEMENTS INTRODUCED TO OUR EQUIPMENTS,
THE INFORMATION CONTAINED IN THE PRESENT INSTRUCTION MANUAL MAY BE MODIFIED WITHOUT PREVIOUS NOTICE.
COMMERCIAL BLENDER, TILTING, STAINLESS STEEL BASE AND CUP, LID WITH
SAFETY SYSTEM, HEAVY DUTY, 15 AND 25 LITERS
MODELO
LAR-15LMB-HD
LAR-25LMB-HD
