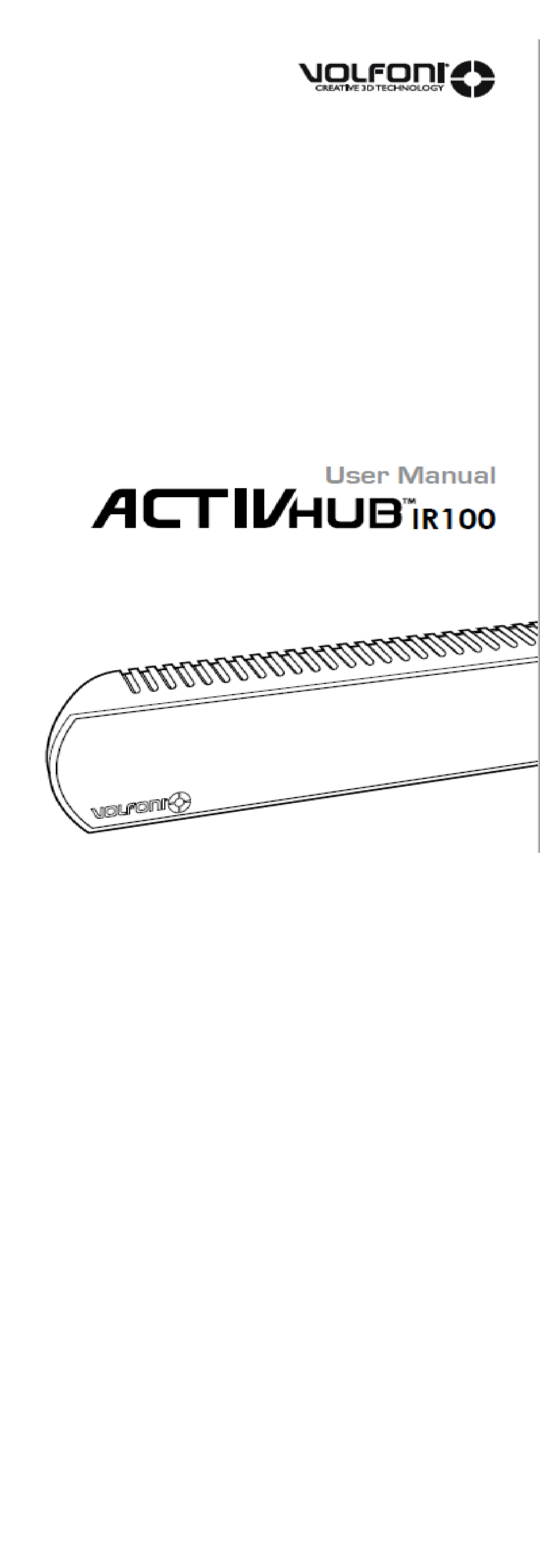

- Page 1 Model VPES-02000-A Document : MUV110065-B00 ActivHub_IR100_User_Manual Compatible with EDGE1.2 glasses (VPEG-01100)
-
Page 2: Table Of Contents
SUMMARY Overview 1.1 General Presentation 1.2 ActivHub IR100 Composition Product Description 2.1 Infra-Red Emitter / Synchronizer 2.1.1 Emitter at a glance 2.1.2 Basic Specification 2.1.3 Direct Infra-Red Spread of The Emitter 2.1.4 Room Configuration ActivHub IR100 Fastening Connection & Synchronization 4.1 System Connection... -
Page 3: Overview

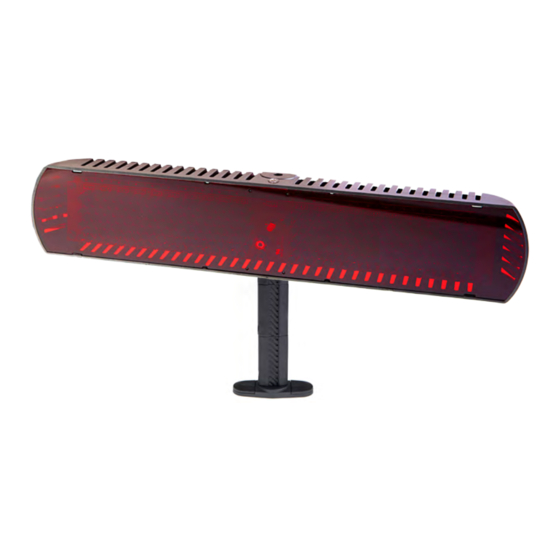

1. Overview 1.1 General presentation The ActivHub IR100 kit allows easy integration in less than 30 min with existing digital theaters using a standard screen system compatible with EDGE1.2 glasses provided by Volfoni. ActivHub IR100: all integrated 3D infra-red emitter... -
Page 4: Product Description
(bar, club, school, museum, events…) and small theater (up to 100 seats). Thanks to its lightweight design, the ActivHub IR100 enhances heat dissipation (LED life protection). It is provided with a universal mounting head for security and is easy to install. -
Page 5: Activhub Ir100 Fastening
3. ActivHub IR100 Fastening INSTALLATION Step Use the wall base to mark each hole to drill with a pencil. Step Drill the holes with the given bit (for wood surface only) Step Insert wall anchors (For solid concrete and drywall... -
Page 6: Connection & Synchronization
HDMI cable SUB-D37 female / SUB-D9 female (3 meters by default - up to 30 meters) Power Supply 24V-240V (3 meters provided) Outlet ActivHub IR100 3D Ready PC System If the graphic card has 3 pin mini-DIN SYNC output port,... -
Page 7: Technical Specifications
CE Certification This device complies with CE Certification. Electrical Safety (IEC 60950-1) This device complies with IEC 60950-1 6. Warranty The ActivHub IR100 is warrantied to the original purchaser for three years according local legislation. Infra-red... - Page 8 Distributed by Volfoni SAS 2474, RD 6007 Le Logis de Bonneau Les Bureaux du Parc 06270 Villeneuve-Loubet France Distributed in USA by Volfoni Inc. 3450, Cahuenga Bd West. Unit 504 Los Angeles, CA 90068 – USA Distributed in Spain by Volfoni Iberia...
