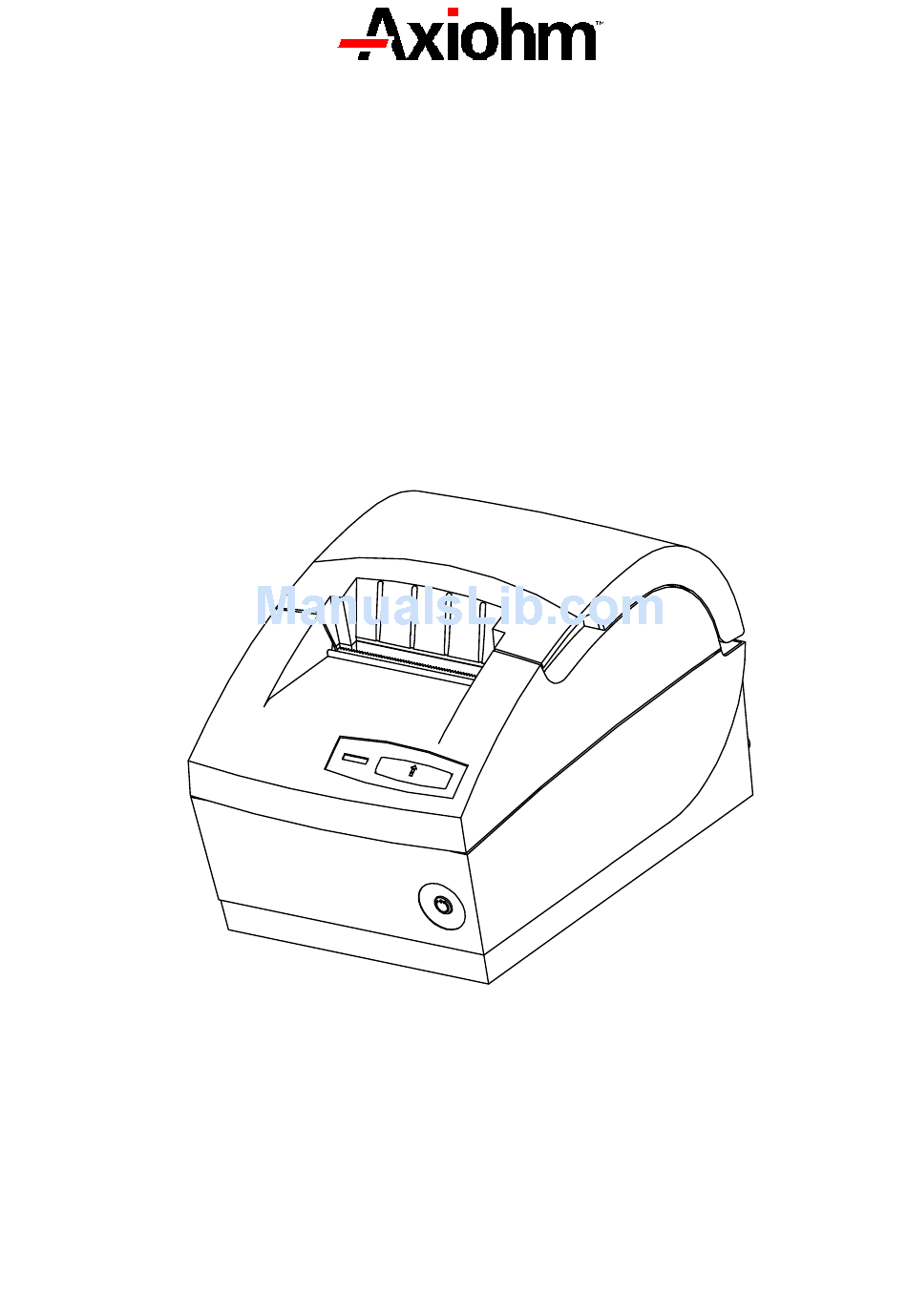

- Page 1 THERMAL PRINTING SOLUTIONS TPOSS001 PRINTER SET-UP GUIDE Reference 3104057 Issue C AXIOHM 1, rue d'Arcueil, BP 820 92542 MONTROUGE CEDEX FRANCE Tel : (33) 1 58 07 17 17, Fax : (33) 1 58 07 17 18...
- Page 2 Connecting the power supply ................. 3 Connecting the printer ..................3 LOADING PAPER ................4 TROUBLESHOOTING............... 5 Light indicator....................5 Problems & Solutions ..................5 CLEANING YOUR PRINTER ............5 TPOSS001 Printer Set-up guide 1 / 5 Reference: FDE-3104057 Issue C page...
- Page 3 The printer should be set on a stable holder in a place where the following conditions are achieved: temperature from 0 to 50°C for operating (- 20 to 60 for storage) no risk of water exposure no mechanical vibration or stress TPOSS001 Printer Set-up guide 2 / 5 Reference: FDE-3104057 Issue C page...
- Page 4 Connections have to be set at the rear of printer: open the rear door and set the power supply and interface cables as shown on the following drawing. Interface cable connector Rear opening door Power supply cable connector TPOSS001 Printer Set-up guide 3 / 5 Reference: FDE-3104057 Issue C page...
- Page 5 Cut the small length left with the tear bar. Your paper roll is set. Notes: The paper used should be recommended by AXIOHM The paper width must be 58 mm The maximum paper roll diameter is 90 mm Roll setting...
- Page 6 (ethanol, methanol, or IPA) but do not touch the print head with your fingers! Allow the solvent to dry and close the cover. *N.B.: AXIOHM can provide cleaning kits, part n°: CK60000A. TPOSS001 Printer Set-up guide 5 / 5...
