A794 Thermal Printer
5AJKF/KE@A
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A794 and is the answer not in the manual?

Questions and answers

Related Manuals for Axiohm A794

Summary of Contents for Axiohm A794

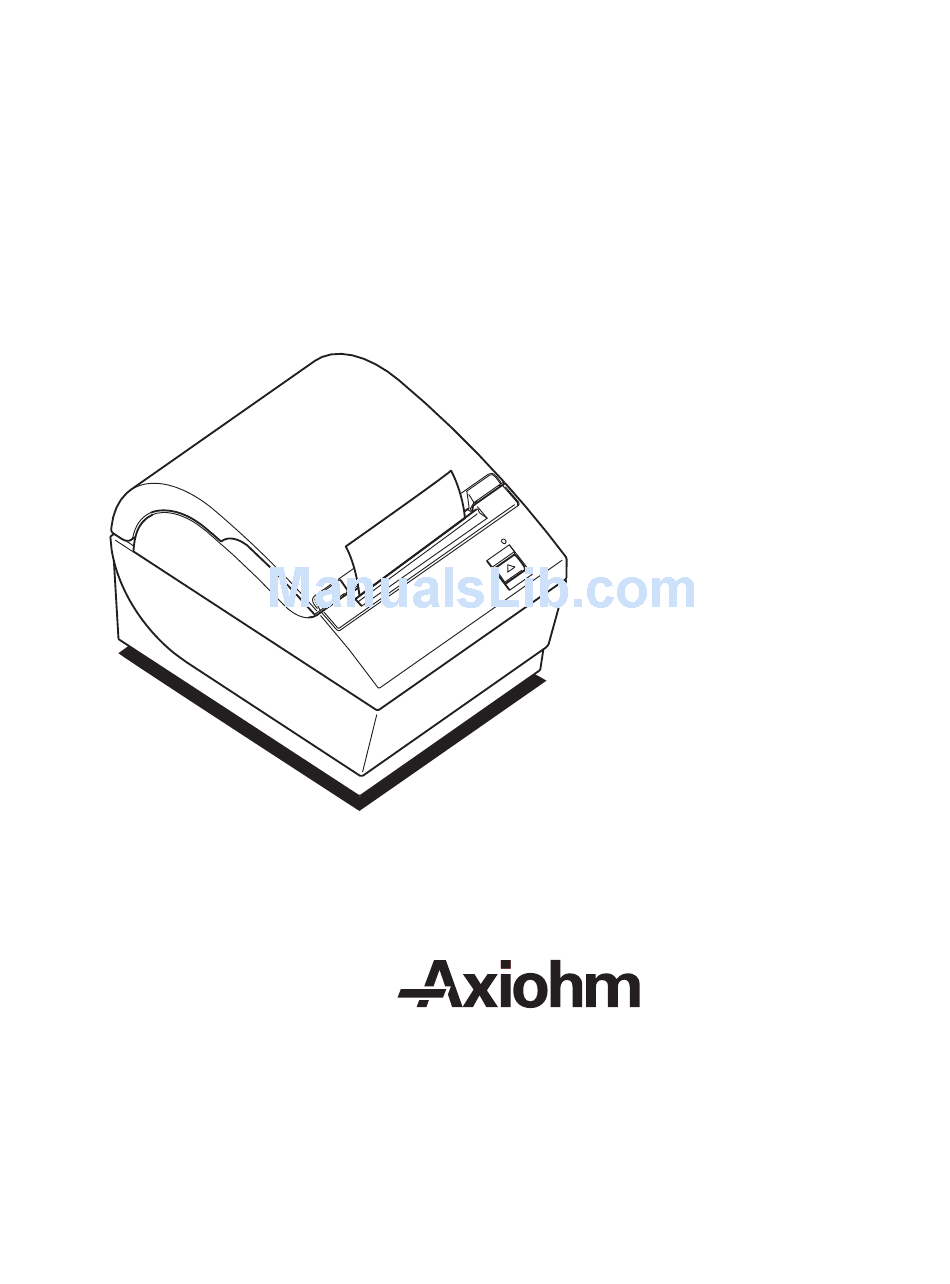

  • Page 1 A794 Thermal Printer 5AJKF/KE@A...

  • Page 2: Unpacking The Printer

    Save all packing materials in case you need to repack the printer. Check that the materials shipped with the printer match what is shown in the illustration. To report any missing materials, or to report a printer that was damaged during shipping, call your Axiohm representative at 1-800-732-8950. Setup...

  • Page 3: Choosing A Location

    Choosing a Location You can set up the printer three ways: set it flat on any level surface, mount it vertically on any level surface, or mount it on a wall. Either way, be sure to leave room to open the cover and access the cables. To mount the printer vertically: OPEN 1.50 in.

  • Page 4: Connecting The Cables

    Connecting the Cables Caution: Connect the cables to the printer before plugging in the power supply. If power is received from the host computer, turn it off before connecting any cables. Back of Printer Communication Pass Through Strain Power Cash Strain Connector Connector...
  • Page 5 3. Close the cover. 4. Remove the excess paper by tearing it against the tear-off blade.

  • Page 6: Printer Controls

    Printer Controls LED (Green) Paper Feed Button Reset Button Testing the Printer Run this test to check the printer. The test prints a list of various printer settings. The test printout may vary depending on the printer model. To change the default settings, enter the configuration menu. The printout may be useful to a service representative if there is a problem.

  • Page 7: Configuring The Printer

    Configuring the Printer If you need to select certain functions, or change settings, use the scrolling menu feature. This feature prints instructions on the receipt for selecting and changing any of the functions and parameters, including A793 and APOS emulations. Caution: Be extremely careful changing any of the printer settings to avoid changing other settings that might affect the performance of the printer.
  • Page 8 100-240 Vac, 1.5/0.8 A, 50/60 Hz, output rated 24 Vdc, 2.3 A. Use of this product with a power supply other than the Axiohm power supply will require you to test the power supply and Axiohm printer for FCC and CE mark certification.
