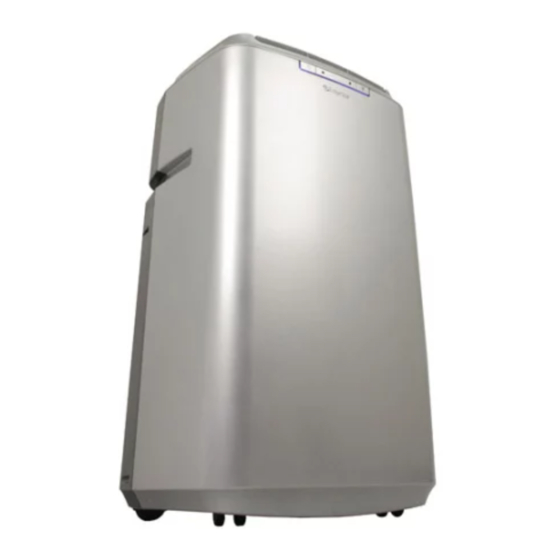

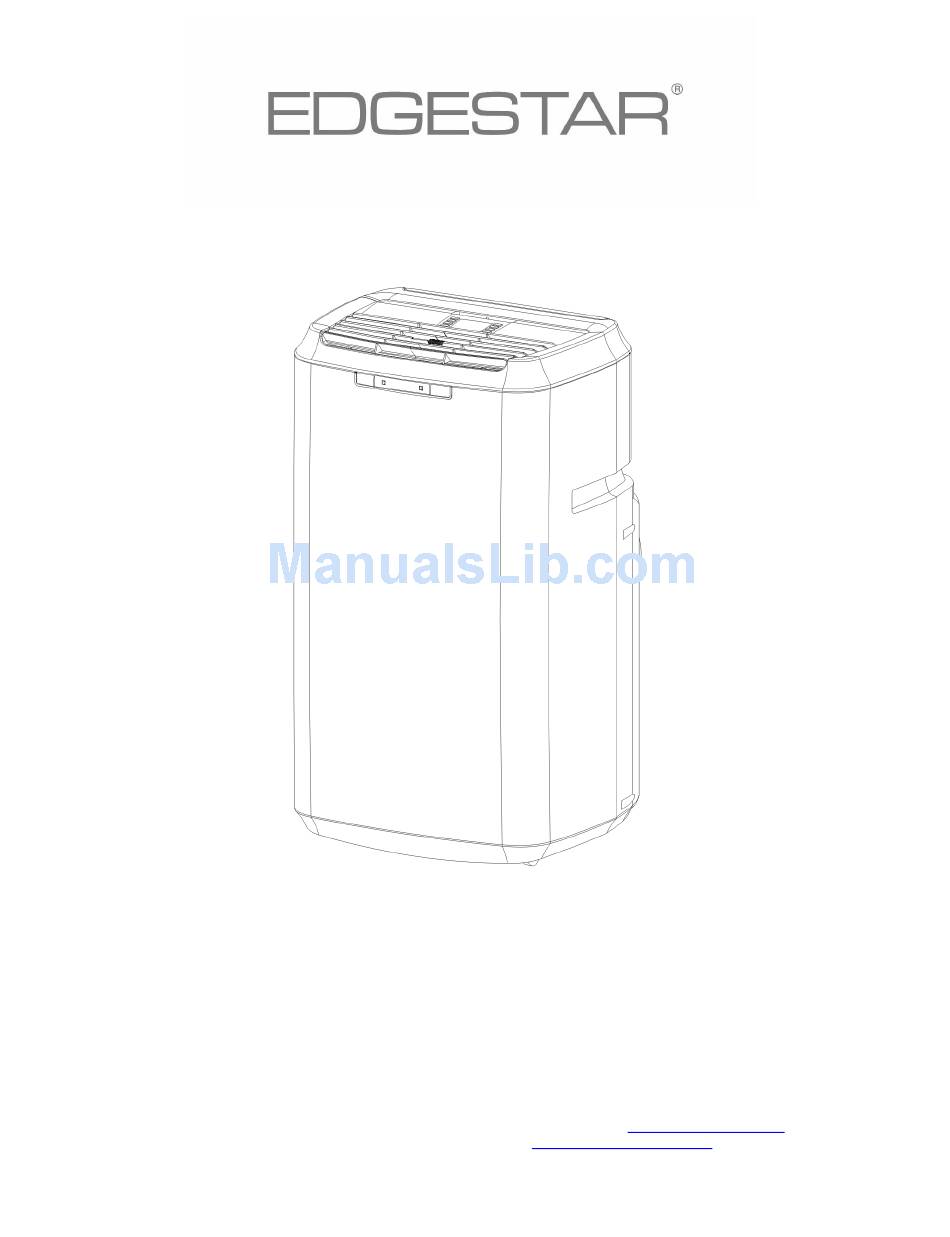

- Page 1 Portable Air Conditioner AP14009COM-1 Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com V2.4-12012017...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the appliance and / or to the user. This portable air conditioner is not intended for use by children. Children should be supervised to ensure that they do not play with this product. Improper handling can cause serious damage to the appliance and/or to the user. -
Page 3: Operation Of Safety Plug
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support. RESET TEST DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS. -
Page 4: Table Of Contents
MAINTENANCE ................................19 Cleaning the Unit ................................19 Cleaning the Pre-filter ..............................19 Preparation for Storage ..............................19 TROUBLESHOOTING..............................20 SPECIFICATIONS ................................ 22 NEW PORTABLE AIR CONDITIONER BTU’S ......................23 What is SACC? ................................23 EDGESTAR LIMITED WARRANTY ..........................24... -
Page 5: Introduction
Introduction Thank you for purchasing this EdgeStar portable air conditioner. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Caution: Make sure the drain plug is firmly installed before using the unit to prevent leaking. Front View Back View... -
Page 7: Installing The Carbon Filter
Installing the Carbon Filter Your portable air conditioner ships with a pre-filter and an activated carbon filter. The carbon filter will help remove contaminates and odors from the air. It is recommended that you replace the carbon filter every two to three months, or as needed. It is necessary to clean the pre-filter periodically. -
Page 8: Window Kit Installation Instructions
Window Kit Installation Instructions Preparations for Installing the Window Kit You must vent your portable air conditioner when running it in cooling mode. Your unit includes a window exhaust kit that can be used to vent the unit out a window. Before you begin, make sure you have all the parts necessary for installation. -
Page 9: Installing The Grated Adapters
If you have multiple windows, choose one that is near an electrical outlet that will be able to provide sufficient power to your unit. See the power requirements listed on the product label printed on the side, or on the back of your portable air conditioner. Your window kit can be installed on a horizontal or vertical sliding window as shown in the following images. -
Page 10: Installing The Window Plates
2. Secure the grated adapters by fastening the screws from the flat side of the window kit plate to the holes on the grated adapters. Installing the Window Plates 3. Open your window and place the window kit on the window sill with the grooved side facing outward. -
Page 11: Attaching The Duct Connectors To The Exhaust Hose
Caution: Secure your window with window locks. Please contact your EdgeStar retailer to purchase window locks. Attaching the Duct Connectors to the Exhaust Hose 5. -
Page 12: Connecting The Duct Connector To The Unit
6. Roll the unit towards the window kit. Leave at least 20 inches between the unit and the wall. Connecting the Duct Connector to the Unit 7. Align the slots on the duct connector to the tabs on the unit and snap the duct connector into the back of the unit. -
Page 13: Notes About The Exhaust Hose
After you have installed the exhaust hose and the window kit, you can plug in your portable air conditioner and start using it. Notes About the Exhaust Hose Your portable air conditioner is designed to exhaust condensate water that is collected from the air. -
Page 14: Draining The Unit
Draining the Unit When the portable air conditioner is in cooling mode, or dehumidify mode, it will remove moisture from the air. The condensed water from the air will be collected in an internal reservoir and will be evaporated and exhausted out of the exhaust hose. However, in very humid conditions, the internal reservoir may fill completely. -
Page 15: Remote Control Overview
Remote Control Overview Note: To use the remote, reach directly behind the display and pull the remote up and out to detach it from the unit. Button Function This powers the unit on or off. Power This sets the Fan Speed. The Automatic , High , Medium , or Low... -
Page 16: Installing The Batteries
Installing the Batteries 1. Remove the cover on the back of the remote control. 2. Insert the batteries with the (+) and (-) ends pointing in the correct directions. 3. Slide the cover back on to the remote. Caution: Use only AAA batteries. Remove the batteries if the remote control will not be used for one month or longer. -
Page 17: Operating The Remote Control
Mode Indicator Function In Automatic mode, the unit will cool, dehumidify, or heat (some models) Automatic depending on the ambient temperature. The mode and fan speed will change automatically. The front panel lights will change to reflect the running mode. In Cool mode the unit will cool the room. - Page 18 Dehumidifying Mode During the Dehumidifying mode, the unit will condense water out of the air and exhaust it through the exhaust hose. The ambient temperature in the room will probably drop by a few degrees while using the Dehumidifying mode. The front panel lights will illuminate yellow. To operate the unit in dehumidifying mode: 1.
- Page 19 Fan Speed The Fan Speed button is used to change the fan speed while in Cooling and Fan Only modes. Press the Fan Speed button to select the fan speed. Automatic , High , Medium or Low speed can be selected, Note: You will not be able to change the fan speed if the unit is in Automatic or Dehumidify mode.
-
Page 20: Front Panel Lights And Controls
Timer The timer can be used to either turn the unit on or off after a set number of elapsed hours. The timer is adjustable between 1-24 hours in one hour increments. How to Set the Unit to Automatically Turn On 1. -
Page 21: Front Panel Controls
Front Panel Controls The front panel has an emergency power switch. The power switch can be used when the unit needs to be shut off or turned on without the remote control. You can turn off the front panel lights by pressing the Lamp Off switch. Energy Saving Guide Read and follow the guide below to get the best performance and efficiency from your portable air conditioner:... -
Page 22: Maintenance
Clean the pre-filter periodically. If the unit is used in a dusty environment you may need to clean it on a weekly basis. Note: The activated carbon filter is not washable. You should replace it every 2-3 months or as needed. Contact EdgeStar retailers for replacement filters. Warning: Never operate the unit without the filters. Preparation for Storage... -
Page 23: Troubleshooting
Troubleshooting Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause Solution My air conditioner is not The unit is not receiving Make sure the unit is plugged functioning at all. power. The LCDI power cord is Press the Reset button on the tripped. - Page 24 Issue Possible Cause Solution My air conditioner is not cooling The unit is not operating in Set the unit to run in cooling at all. cooling mode. mode, and lower the set temperature (pg. 13). The compressor is not on. The compressor may take up to 3 minutes to turn on, or longer if it is too warm.
-
Page 25: Specifications
Specifications Description of product Portable Air Conditioner Model AP14009COM-1 Voltage / Frequency 115 V / 60 Hz Input Power 1250 W Current 10.8 A Cooling Capacity (SACC) 8500 BTU Cooling Capacity (ASHRAE) 14000 BTU Color Silver Coolant R-410A Timer 24 Hour ”... -
Page 26: New Portable Air Conditioner Btu's
New Portable Air Conditioner BTU’s You may notice that the cooling capacities (in British Thermal Units or BTU’s) labeled on portable air conditioners (PAC’s) are now lower than on models produced prior to October 1, 2017. This is because the labeling on new productions of PAC’s must follow a new federal test standard that was established by the Department of Energy: 10 CFR 430, subpart B, appendix The SACC rating shown on your new PAC is a result of this new standard. -
Page 27: Edgestar Limited Warranty
WHAT IS COVERED: For a period of ONE (1) YEAR from the date of original retail purchase, EdgeStar will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Labor will be performed free of charge at an authorized EdgeStar repair facility and EdgeStar will supply new, rebuilt, or refurbished parts free of charge.
