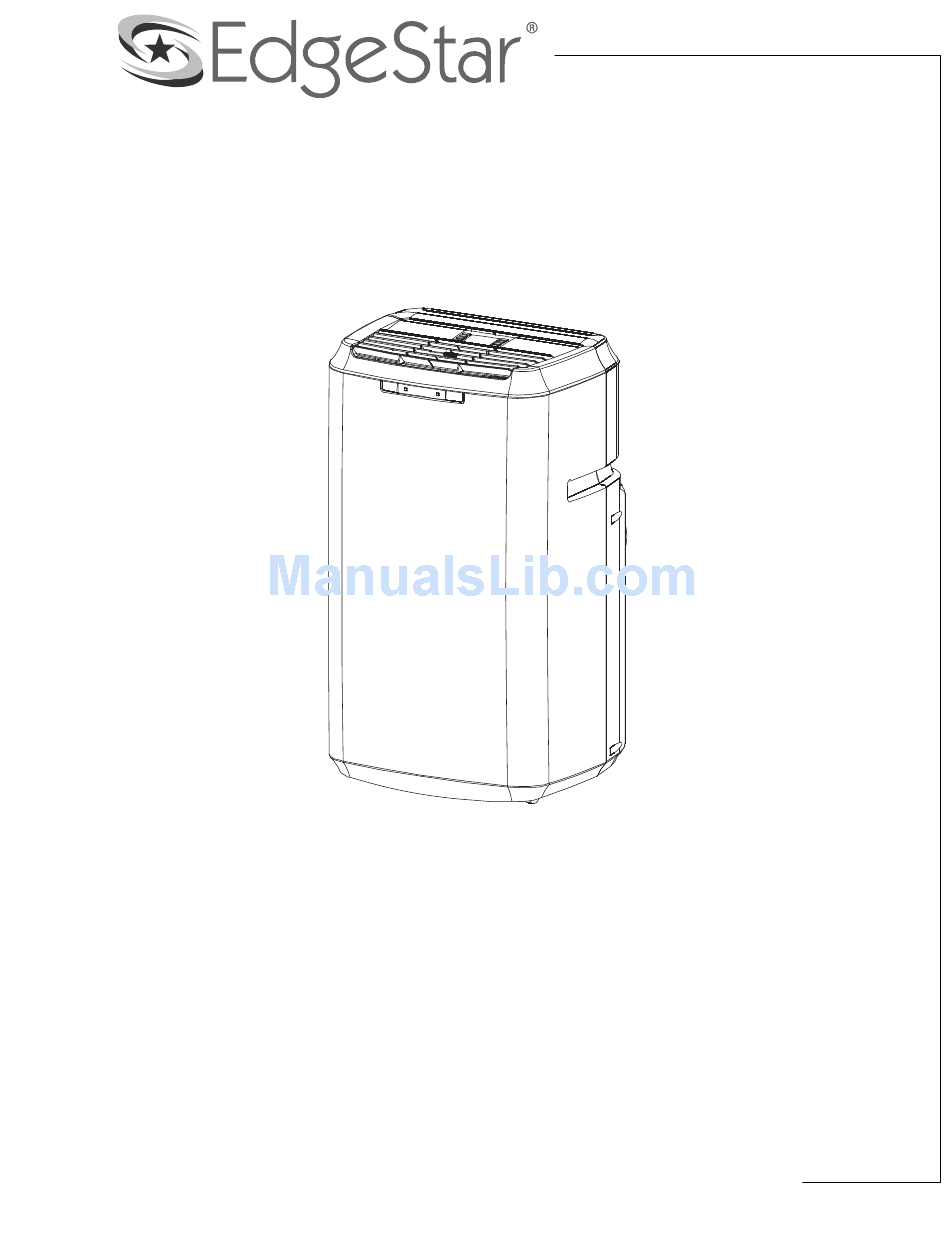

- Page 1 Portable Air Conditioner AP14009COM Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support. -
Page 3: Table Of Contents
LEANING THE UNIT ... 16 LEANING THE PRE FILTER ... 16 REPARATION FOR TORAGE TROUBLESHOOTING ... 17 ROUBLESHOOTING CONTINUED SPECIFICATIONS ... 19 EDGESTAR LIMITED WARRANTY ... 20 ... 4 ... 5 ... 6 ... 7 ... 8 ... 8 ... 18... -
Page 4: Introduction
Introduction Thank you for purchasing this EdgeStar portable air conditioner. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
Parts Identification Front View Remote Control Power Button Indicator Light Button Handle Back View Pre-filter Air Intake Exhaust Outlet Air Intake Caster Power Cord Drain Port EdgeStar Portable Air Conditioner... -
Page 6: Installing The Carbon Filter
Pre-filter Installing the Carbon Filter Your portable air conditioner ships with a pre-filter and an activated carbon filter. The carbon filter will help remove contaminates and odors from the air. It is recommended you replace the carbon filter every two to three months, or as needed. -
Page 7: Window Kit Installation Instructions
EdgeStar Portable Air Conditioner Window Kit Installation Instructions You must vent your portable air conditioner when running in it cooling mode. Your unit includes a window exhaust kit that can be used to vent the unit out a window. -
Page 8: Installing The Grated Adapter
Installing the grated adapter 1. Insert the round grated adapters through the back grooved side of the window kit plate with holes. 2. Secure the grated adapters by fastening the screws from flat side of the window kit plate to the holes on the grated adapter. -
Page 9: Installing The Window Plates
Please contact your EdgeStar retailer to purchase window locks. EdgeStar Portable Air Conditioner 3. Open your window and place the window kit with grooved side facing outward on the window sill. Then, slide the window kit plate to fit the width of the window. You can use screws to secure the window kit plate from sliding. -
Page 10: Attaching The Duct Connectors To The Exhaust Hose
Attaching the duct connectors to the exhaust hose 5. Attach the connectors to the hose: A. Extend the ends of the exhaust hose B. Thread the duct connector on by turning it clockwise until it stops. 6. Roll the unit towards the window kit. Leave a space that is at least 20 inches to the wall. -
Page 11: Connecting The Duct Connector To The Unit
8. Align the slots on the duct connector to the tabs on the grated adapter and snap in place. After you have installed the exhaust hose and window kit, you can plug in your portable air conditioner and start using it. -
Page 12: Draining The Unit
However, in very humid conditions, the internal reservoir may fill completely. This causes the air conditioner to turn off to avoid overflowing the internal reservoir. The WATER indicator will light up on the Control Panel. -
Page 13: Remote Control Overview
Do not attempt to recharge batteries not designed to be recharged. All batteries should be replaced at the same time. Do not mix old and new batteries. Do not dispose of batteries in a fire as they may explode. EdgeStar Portable Air Conditioner Remote Control Overview Power Button... -
Page 14: Remote Control Lcd Indicators
Temperature Setting Indicator Remote Control LCD Indicators Transmitter Indicator Speed Indicators Mode Indicators Indicators Transmitter Fan Speed Mode Temperature Setting Fahrenheit and Celsius Clock Timed Hours Timer Mode Indicator Automatic Cooling Dehumidify Fan Only Clock Indicator Appears when the Power or Timer button is signaling the unit. -
Page 15: Auto-Restart:
The unit will remember the last used mode/settings if you shut down and restart. Auto-Restart: If power to the unit is interrupted, the air conditioner will restart itself in its last used mode/settings once power is restored. The compressor will restart after 3 minutes. -
Page 16: Fan Only Mode
Fan Only Mode NOTE: Fan Only mode does not require that the exhaust hose be attached. Automatic Mode Fan Speed Clock TIP: Use the Chart below: 12-Hour 24-Hour 1:00 PM 13:00 2:00 PM 14:00 3:00 PM 15:00 4:00 PM 16:00 5:00 PM 17:00 6:00 PM... -
Page 17: Timer
The unit will automatically turn off after the selected time elapses. Front Panel Lights and Controls Your portable air conditioner has a front panel that lights up different colors depending on the mode it is running. Cooling mode will display a blue light. -
Page 18: Energy Saving Guide
Energy Saving Guide Read and follow the guide below to get the best performance and efficiency from your portable air conditioner: Do not cover the air outlet (exhaust) while in use. Do not place the unit in front of curtains or drapes- to ensure they do not obstruct the air intake. -
Page 19: Maintenance
Clean the air conditioner and filters regularly to maximize performance and efficiency, and prolong the unit’s life. Be sure to always unplug the air conditioner from the power outlet before cleaning. Use a soft dry cloth to wipe the body clean. If necessary, use lukewarm water to dampen a cloth to clean the unit. -
Page 20: Troubleshooting
Troubleshooting Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause My air conditioner is Unit is not receiving not functioning at all power LCDI power cord is tripped Insufficient power Water reservoir is full Control panel is... -
Page 21: Troubleshooting Continued
EdgeStar Portable Air Conditioner Troubleshooting continued Issue Possible Cause My air conditioner is Unit is not operating in... -
Page 22: Specifications
Specifications Description of product Model Voltage/Frequency Input Power Current Color Coolant Timer Dimensions H x W x D Weight Portable Air Conditioner AP14009COM 115V/60Hz 1250W 10.8A Silver R410A 24 Hour 32.7” x 20.1” x 16.75” 77 lbs... -
Page 23: Edgestar Limited Warranty
If a product is replaced, it will carry the remaining warranty of the original product. After the one (1) year period, EdgeStar will no longer be responsible for labor charges incurred. All defective products and parts covered by this warranty will be repaired or replaced on a mail- in basis to an EdgeStar authorized repair facility. - Page 24 Web: http://www.edgestar.com E-mail: service@edgestar.com Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. EdgeStar Products Box 81336...
