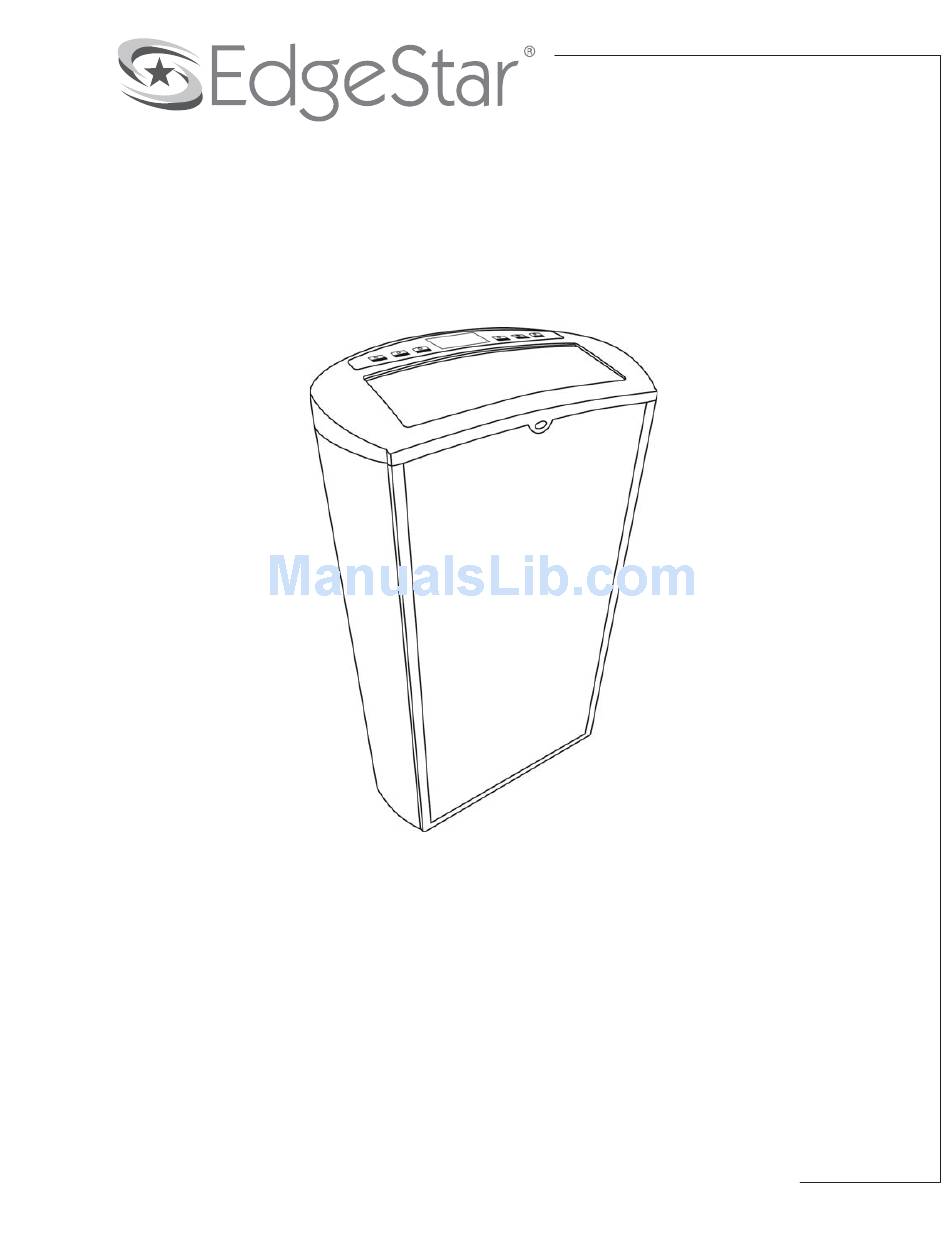

- Page 1 Portable Air Conditioner AP14002HS Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support. -
Page 3: Table Of Contents
Energy Saving Guide ..................9 MAINTENANCE ....................10 ................... 10 LEANING THE UNIT ................. 10 LEANING THE PRE FILTER ................10 REPARATION FOR TORAGE TROUBLESHOOTING ..................11 ................. 12 ROUBLESHOOTING CONTINUED SPECIFICATIONS ....................13 EDGESTAR LIMITED WARRANTY ..............14 EdgeStar Portable Air Conditioner... -
Page 4: Introduction
Introduction Thank you for purchasing this Edgestar portable air conditioner. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
4. Remote Holder 5. Upper Air Filter Grille (Intake) 6. Handle 8. Power Cord Hooks 9. Power Cord 10. Air Outlet (Heat Exhaust) 11. Lower Air Filter Grille (Intake) Power Cord 12. Drain Plug Back View EdgeStar Portable Air Conditioner... -
Page 6: Window Kit Parts List
Window Kit Parts List: Suggested Tools- Phillips Screw Driver (Medium sized), Tape Measure/Ruler, Scissors, Saw (In the event that your window panel needs to be cut down in size for installation). Window Kit Installation Instructions For this portable air conditioner to operate correctly, the hot air from the back of the unit must be vented to the outside. -
Page 7: Preparations For Installing The Window Kit
Lower the window to secure the window kit in place. You may need to use duct tape to better secure the window kit. EdgeStar Portable Air Conditioner... - Page 8 Connect Exhaust Hose to unit by screwing the hose to the Air Outlet until you have a tight connection. Connect your Exhaust Hose to the Exhaust Hose Adapter by screwing the hose to the adapter until you have a tight connection. Lastly connect the Exhaust Hose Adapter to the Adjustable Window Panel by screwing in until you have a tight connection.
-
Page 9: Notes About The Exhaust Hose
2. Unscrew the water plug and unplug the water blocker. 3. Once unit is fully drained insert the water blocker and screw on the water plug. Please note that this unit has no drain pump; all water will drain with gravity only, i.e., only “downhill.” EdgeStar Portable Air Conditioner... -
Page 10: Control Panel Overview
Control Panel Overview Timer Down-Decrease Power Mode Up-Increase Fan Speed Control Panel Operating Instructions Power- Press once and the unit will turn and be indicated by a sound and will automatically enter cooling mode. Press again and the unit will shut off. Mode- Press mode button to cycle between the different modes- Cooling, Heating, Fan, Energy Saver, or Dehumidifying. -
Page 11: Remote Control Overview
Energy Saver Mode- Any key pressed on Display will turn dark after only 10 seconds to save on energy consumption. Dehumidifying Mode- during the Dehumidifying mode, the unit will condense water out of the air and exhaust it through the exhaust hose. EdgeStar Portable Air Conditioner... -
Page 12: Energy Saving Guide
Replacing the Batteries 1) Remove the cover on the back of the remote control. 2) Insert the batteries with the (+) and (-) ends pointing in the correct direction. 3) Install the cover on the remote. CAUTION: Use only AAA batteries. Remove the batteries if the remote control will not be used for one month or longer. -
Page 13: Maintenance
2) Power off the unit, and clean or change the filters. 3) Unplug and carefully wind the power cord. 4) Remove the exhaust hose and duct connectors and keep them in a safe place. EdgeStar Portable Air Conditioner... -
Page 14: Troubleshooting
Troubleshooting Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause Solution My air conditioner is Unit is not receiving Make sure the unit is not functioning at all. power. plugged in to a grounded outlet. LCDI power cord is Press the Reset button tripped. -
Page 15: Troubleshooting Continued
The filter may be dusty Clean the filter and or blocked. replace it if needed. Dirty condenser coils. Carefully vacuum the coils clean. Obstructed air intake Remove anything or exhaust ports. blocking the ports. EdgeStar Portable Air Conditioner... -
Page 16: Specifications
Specifications Description of product Portable Air Conditioner Model AP14002HS Voltage/Frequency AC 115V~60Hz Input Power (Cooling) 1332W Input Power (Heating) 1255W Current 14,000 Color Silver with Stainless Steel Front Coolant/Quantity R-410A/21.5oz Timer 24 Hour Dimensions 18 ½” W x 33 ¼”H x 13” D... -
Page 17: Edgestar Limited Warranty
Once an EdgeStar authorized representative has confirmed that your product is defective and eligible for warranty service, the product must be returned to an EdgeStar authorized re- pair facility. EdgeStar is not responsible for damage resulting from shipper mishandling or improper packaging. Do not return a defective product to the place of purchase. - Page 18 Web: http://www.edgestar.com E-mail: service@edgestar.com Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2012 Living Direct, Inc. All rights reserved.
