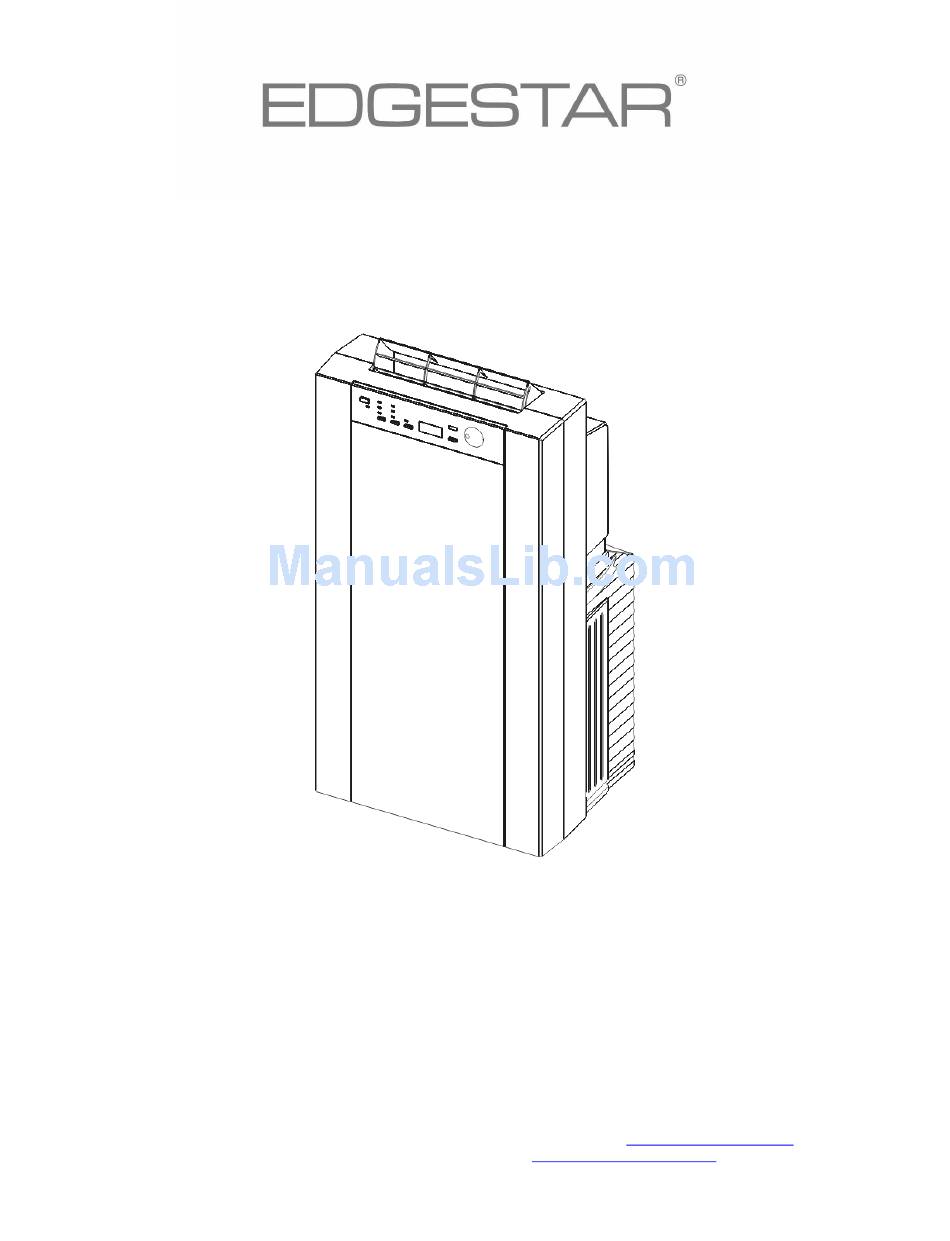

- Page 1 Portable Air Conditioner AP14001HS Owner’s Manual For more information on other great EdgeStar products on the web, go to https://www.edgestar.com To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com V2.4-12012017...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the appliance and / or to the user. This portable air conditioner is not intended for use by children. Children should be supervised to ensure that they do not play with this product. Improper handling can cause serious damage to the appliance and/or to the user. -
Page 3: Operation Of Safety Plug
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support. DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS. -
Page 4: Table Of Contents
MAINTENANCE ................................14 Cleaning the Unit ............................... 14 Cleaning the Pre-filter ..............................14 Preparation for Storage ............................. 14 TROUBLESHOOTING..............................15 SPECIFICATIONS ................................ 17 NEW PORTABLE AIR CONDITIONER BTU’S ......................18 What is SACC? ................................18 EDGESTAR LIMITED WARRANTY ..........................19... -
Page 5: Introduction
Introduction Thank you for purchasing this EdgeStar portable air conditioner. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Front View Back View... -
Page 7: Installing The Carbon Filter
Installing the Carbon Filter Your portable air conditioner ships with a pre-filter and an activated carbon filter. The carbon filter will help remove contaminates and odors from the air. It is recommended that you replace the carbon filter every three to six months, or as needed. It is necessary to clean the pre-filter periodically. -
Page 8: Window Kit Installation Instructions
Window Kit Installation Instructions Window Kit Parts list: 1. Adjust the plastic slider kit to the width or height of your window and tighten the two (2) screws that are attached to the panel. 2. Push the round window adapter through the rear of the plastic slider. Line up the holes and tighten the adapter with four (4) of the included screws. -
Page 9: Installing The Grated Adapter
Note: This unit can be used with one or two vent hoses. The exhaust hose should always be used in cooling and heating (HS model) mode. The air intake hose can be used to increase the cooling efficiency of the unit. If the air intake hose is not used, simply cover one of the grated adapters on the window kit with a vent cap. -
Page 10: Installing The Window Plates
2. Secure the grated adapter by fastening the screws from the flat side of the window kit plate to the holes on the grated adapter. Installing the Window Plates 3. Open your window and place the window kit on the window sill with the grooved side facing outward. -
Page 11: Attaching The Duct Connectors To The Exhaust Hose
4. Lower the window to secure the window kit in place. You may need to use duct tape to better secure the window kit. Caution: Secure your window with window locks. Please contact your EdgeStar retailer to purchase window locks. -
Page 12: Connecting The Duct Connector To The Unit
6. Roll the unit towards the window kit. Leave at least 20 inches between the unit and the wall. Connecting the Duct Connector to the Unit 7. Align the slots on the duct connector to the tabs on the unit and snap the duct connector into the back of the unit. -
Page 13: Notes About The Exhaust Hose
After you have installed the exhaust hose and the window kit, you can plug in your portable air conditioner and start using it. Notes About the Exhaust Hose Your portable air conditioner is designed to exhaust condensate water that is collected from the air. -
Page 14: Control Panel
Control Panel : Set Temperature Display : Timer with Auto On/Off Switch Display : Sleep Pattern Display Power Control The power button turns the unit on or off. Warning Light Condensed water may accumulate in the unit. The Warning light will turn on to indicate that the internal tank is full. -
Page 15: Fan Speed Control
Dehumidify Mode In dehumidify mode, air is dehumidified as it passes through the unit, while some cooling continues to occur. If the room temperature is higher than 77°F, the fan speed can be adjusted. Otherwise the fan speed will be maintained at “Low.” Note: The warm air exchange hoses must vent inside the room when using Dehumidify Mode, not outside as they do when cooling. -
Page 16: Remote Control Overview
Remote Control Overview Note: Batteries are not included. The remote control has the same functions as the touch control panel. All key functions can be accessed from the remote control or from the control panel on the unit. Button Function Power This button powers the unit on and off. -
Page 17: Installing The Batteries
Installing the Batteries 1. Remove the cover on the back of the remote control. 2. Insert the batteries with the (+) and (-) ends pointing in the correct directions, as indicated in the image above. 3. Slide the cover back on to the remote. Caution: Use only AAA or IEC R03 1.5V batteries. -
Page 18: Maintenance
Maintenance Clean the air conditioner and filters regularly to maximize performance and efficiency, and to prolong the unit’s life. Always be sure to unplug the air conditioner from the power outlet before cleaning. Cleaning the Unit Use a soft dry cloth to wipe the body of the air conditioner clean. If necessary, use lukewarm water to dampen a cloth to clean the unit. -
Page 19: Troubleshooting
Troubleshooting Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause Solution My air conditioner is not The unit is not receiving Make sure the unit is plugged functioning at all. power. The LCDI power cord is Press the Reset button on the tripped. - Page 20 Issue Possible Cause Solution My air conditioner is not cooling The unit is not operating in Set the unit to run in cooling at all. cooling mode. mode, and lower the set temperature. The compressor is not on. The compressor may take up to 3 minutes to turn on, or longer if it is too warm.
-
Page 21: Specifications
Specifications Description of product Portable Air Conditioner Model AP14001HS Voltage / Frequency 115V / 60Hz Input Power 1200 W Cooling 1200 W Heating Cooling Capacity (SACC) 8600 BTU Cooling Capacity (ASHRAE) 14000 BTU Current 10.8 A Cooling 10.8 A Heating... -
Page 22: New Portable Air Conditioner Btu's
New Portable Air Conditioner BTU’s You may notice that the cooling capacities (in British Thermal Units or BTU’s) labeled on portable air conditioners (PAC’s) are now lower than on models produced prior to October 1, 2017. This is because the labeling on new productions of PAC’s must follow a new federal test standard that was established by the Department of Energy: 10 CFR 430, subpart B, appendix The SACC rating shown on your new PAC is a result of this new standard. -
Page 23: Edgestar Limited Warranty
WHAT IS COVERED: LABOR: For a period of NINETY (90) DAYS from the date of original purchase, labor will be performed free of charge at an authorized EdgeStar repair facility. At its option, EdgeStar will repair the product with new or remanufactured parts, or exchange the defective product with a new, refurbished, or remanufactured product.
