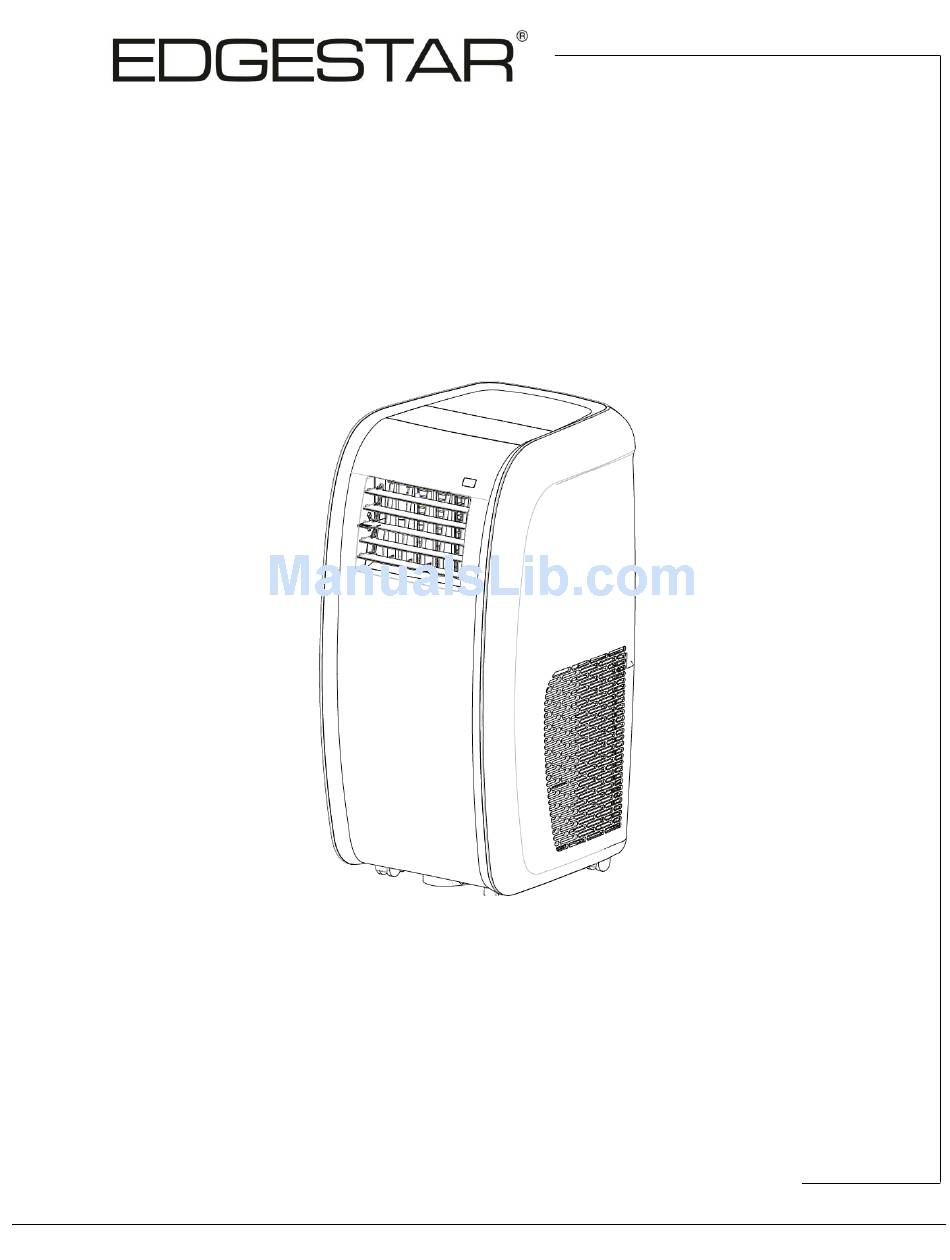

- Page 1 Portable Air Conditioner AP13500HG Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support. -
Page 3: Table Of Contents
ODES AND EATURES ENERGY SAVING GUIDE ................... 18 MAINTENANCE ....................19 ................19 LEANING THE ILTERS ................... 19 LEANING THE XTERIOR ................20 REPARATION FOR TORAGE TROUBLESHOOTING ..................21 ERROR CODES ....................23 SPECIFICATIONS ....................24 EDGESTAR LIMITED WARRANTY ..............25... -
Page 5: Introduction
Introduction Thank you for purchasing this EdgeStar portable air conditioner. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 6: Parts Identification
Front View 1. Air outlet (Louver) 2. Control panel 3. Remote Control Sensor 4. Caster 5. Handle 6. Upper air inlet grille 7. Air exhaust outlet 8. Lower air inlet grille 9. Power Cord Back View EdgeStar Portable Air Conditioner... -
Page 7: Parts Included
Parts Included Suggested Tools- Phillips Screw Driver (Medium sized), Tape Measure/Ruler, Scissors, Saw (In the event Window Exhaust Protective Grille Flexible Exhaust Adjustable Window that your window panel Adapter (baffle) Hose Slider needs to be cut down in size for installation) Foam Seal “Joint A”... -
Page 8: Window Kit Installation Instructions
If the inner width of the window is between 36” and 64” wide: o Attach the extension panel to the window panel. o Slide the adjustment panel to fit the window frame width. EdgeStar Portable Air Conditioner... - Page 9 Attach Foam Seal to Window Panel There are 2 types of foam seal strips included with your window panel kit. Locate the foam seal that has the adhesive backing. This will be used to minimize air leakage on the top and bottom edges of the window panel.
- Page 10 Insert between the top of the inner window and outer window to create a proper seal. Note: The sash seal is thicker than the window panel seal and does not include an adhesive backing. EdgeStar Portable Air Conditioner...
-
Page 11: Installation In A Sliding Window
Installation in a Sliding Window Attach Grille Attach the protective grille (baffle) to the window panel. Push the grille firmly to ensure that its four raised tabs are attached firmly into the window panel. Assemble Window Panel To assemble with window panel, start by measuring the width of the window opening where the window panel will be installed. - Page 12 24” and 36” wide, attach window panel to window sill with 3 wood screws. If the inner width of the window is between 36” and 64” wide, attach window panel to window sill with 4 wood screws. EdgeStar Portable Air Conditioner...
- Page 13 Close Window Sash Slide the window sash firmly against the window panel. Attach Window Lock Bracket Ensure window sash is closed firmly against Window Panel. Ensure window sash is closed firmly against Window Panel. Place Window Lock Bracket as shown in image.
-
Page 14: Installation Of The Exhaust Hose
Press downward until the tabs click securely in place. To remove, press each of the locking tabs and lift upward. EdgeStar Portable Air Conditioner... -
Page 15: Notes About The Exhaust Hose
Notes about the Exhaust Hose Your portable air conditioner is designed to exhaust condensate water that is collected from the air. This water, in either gaseous or droplet form, will be expelled out the exhaust port of the unit. Please take this into account when deciding how to vent it. 1. -
Page 16: Draining The Unit
Attach one end of the drain hose to the drain port with the pipe hoop provided. Insert the rubber plug into the other end of the drain hose, secure with pipe hoop and attach to drain pipe clip. EdgeStar Portable Air Conditioner... -
Page 17: Manually Drain The Unit
Manually Drain the Unit When the internal tank is full the LED window will display error code “H8”. When this occurs, the tank must be drained manually into a drain pan. To drain the tank manually: 1. Remove drain pipe from pipe clip on back of unit. 2. -
Page 18: Operating Instructions
Heat Mode, the Sleep function will slowly lower the Temp Control by 4° degrees Fahrenheit over the initial 2 hour Sleep Mode period. When the Sleep Mode is active, the LCD will continue to display the Sleep Mode status. Edgestar Portable Air Conditioner... -
Page 19: Remote Control Overview
Remote Control Overview The remote control is used to operate all of your portable air conditioner’s functions. Use the remote control to change modes, fan speed, timer, and temperature settings. NOTE: Be careful to not drop the remote control. Do not place the remote control in a location exposed to direct sunlight. -
Page 20: Modes And Features
The heat pump will not selected, the heat pump turns on again. The Heat Indicator will be work properly if ambient lit. You can press the “+” or “-“ to increase or decrease the set temperature is below 50F. temperature. EdgeStar Portable Air Conditioner... - Page 21 Modes (Continued) TIMER: Pressing the Timer will activate the Timer Mode settings. Pressing "+" or "-" buttons the adjust the timer setting in increments of ½ hour up to 10 hours and then in increments of 1 hour up to 24 hours while using the remote control.
-
Page 22: Energy Saving Guide
To prolong the compressor's life, please wait at least 3 minutes before turning the unit back on after shutting it off. Inspect and keep the pre-filters clean by cleaning regularly. Perform routine maintenance. EdgeStar Portable Air Conditioner... -
Page 23: Maintenance
Maintenance Clean the air conditioner and filters regularly to maximize performance and efficiency, and prolong the unit’s life. Be sure to always unplug the air conditioner from the power outlet before cleaning. Cleaning the Pre-Filters Your portable air conditioner ships with pre-filters to help remove dust and other particles from the air. -
Page 24: Cleaning The Exterior
2) Power off the unit, and clean or change the filters. 3) Unplug and carefully wind the power cord. 4) Remove the exhaust hose and duct connectors and keep them in a safe place. EdgeStar Portable Air Conditioner... -
Page 25: Troubleshooting
Troubleshooting Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause Solution My air conditioner is Unit is not receiving Make sure the unit is not functioning at all. power. plugged in to a grounded outlet. LCDI power cord is Press the Reset button tripped. - Page 26 Remove anything or exhaust ports. blocking the ports. My air conditioner is The heat pump will Use heat function when not heating properly. not work properly if temperatures rises ambient temperature above 50F. is below 50F. EdgeStar Portable Air Conditioner...
-
Page 27: Error Codes
Error Codes The air conditioner may display an error code if it is not operating correctly. Below are the list of error codes and their description. Water reservoir is full Drain and empty the water reservoir. If “H8” continues please contact customer service Malfunction of ambient Please contact customer service... -
Page 28: Specifications
Portable Air Conditioner w/ Heat Pump Model AP13500HG Voltage/Frequency 115V~60Hz Input Power 1465W Cooling 1250W Heating Current 11.5 A Color Grey Coolant R-410A Timer 24 Hour 30 1/2” x 14 3/4” x 17 3/8” Dimensions HxWxD Weight 78.3 lbs. EdgeStar Portable Air Conditioner... -
Page 29: Edgestar Limited Warranty
EdgeStar authorized repair facility. PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. - Page 32 Web: http://www.edgestar.com E-mail: service@edgestar.com Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2016 Living Direct, Inc. All rights reserved.
