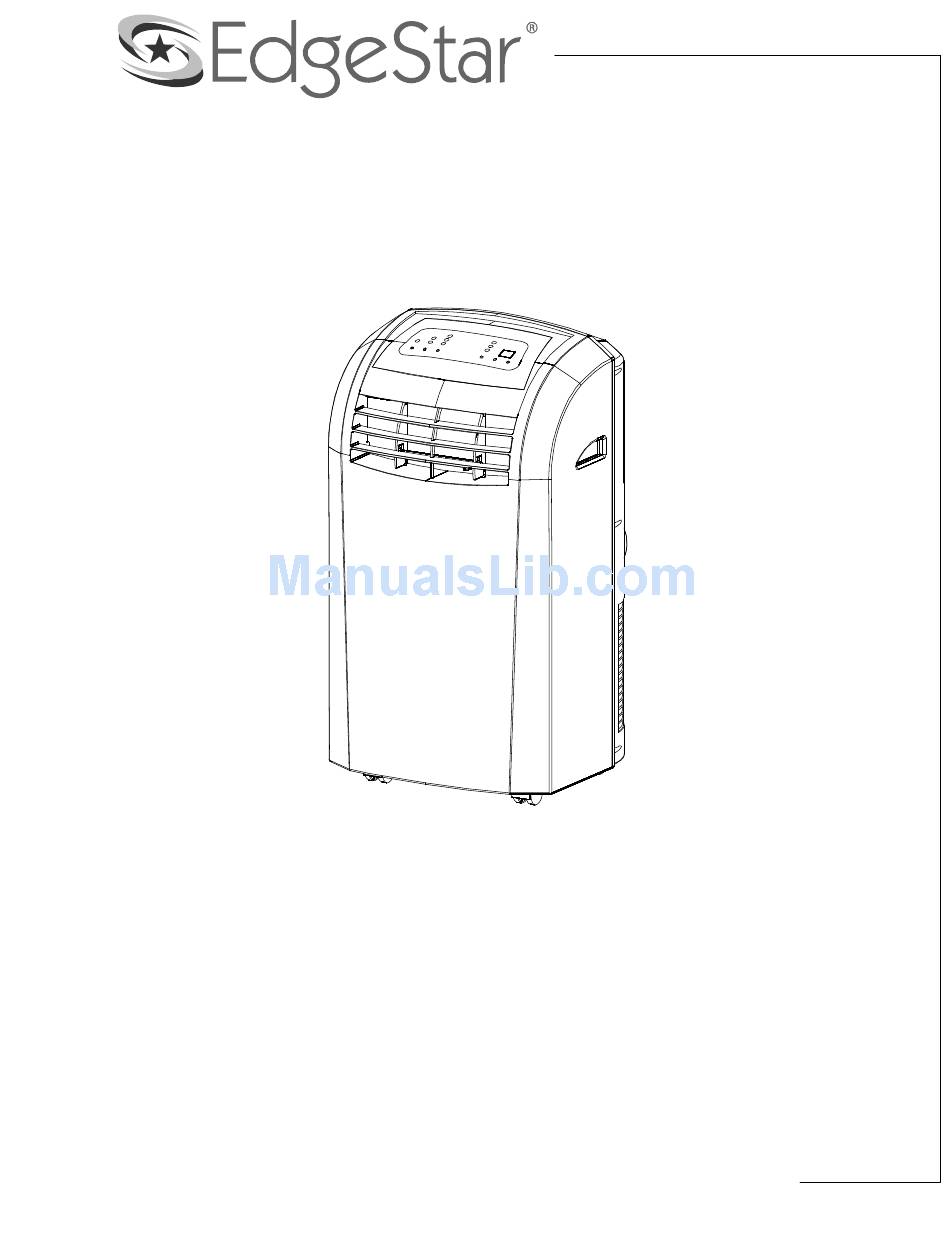

- Page 1 Portable Air Conditioner AP12000HS Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support. -
Page 3: Table Of Contents
... 15 LEANING THE PRE FILTER ... 15 REPARATION FOR TORAGE TROUBLESHOOTING ... 16 ROUBLESHOOTING CONTINUED SPECIFICATIONS ... 18 EDGESTAR LIMITED WARRANTY ... 19 ... 4 ... 5 ... 6 ... 7 ... 8 ... 8 ... 9 ... 17 ... -
Page 4: Introduction
Introduction Thank you for purchasing this EdgeStar portable air conditioner. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
Parts Identification Control Panel Front View Front Air Vent Handle Caster Pre-filter Back View Air Intake Exhaust Outlet Power Cord Drain Valve EdgeStar Portable Air Conditioner... -
Page 6: Installing The Carbon Filter
Filter frame Pre-filter Installing the Carbon Filter Your portable air conditioner ships with a pre-filter and an activated carbon filter. The carbon filter will help remove contaminates and odors from the air. It is recommended you replace the carbon filter every two to three months, or as needed. -
Page 7: Window Kit Installation Instructions
EdgeStar Portable Air Conditioner Window Kit Installation Instructions You must vent your portable air conditioner when running in it cooling mode. Your unit includes a window exhaust kit that can be used to vent the unit out a window. -
Page 8: Installing The Grated Adapter
Installing the grated adapter 1. Insert the round grated adapter through the back grooved side of the window kit plate with hole. 2. Secure the grated adapter by fastening the screws from flat side of the window kit plate to the holes on the grated adapter. -
Page 9: Installing The Window Plates
Please contact your dealer to purchase window locks. EdgeStar Portable Air Conditioner 3. Open your window and place the window kit with grooved side facing outward on the window sill. Then, slide the window kit plate to fit the width of the window. You can use screws to secure the window kit plate from sliding. -
Page 10: Attaching The Duct Connectors To The Exhaust Hose
Attaching the duct connectors to the exhaust hose 5. Attach the connectors to the hose: A. Extend the ends of the exhaust hose B. Thread the duct connector on by turning it clockwise until it stops. 6. Roll the unit towards the window kit. Leave a space that is at least 20 inches to the wall. -
Page 11: Connecting The Duct Connector To The Unit
8. Align the slots on the duct connector to the tabs on the grated adapter and snap in place. After you have installed the exhaust hose and window kit, you can plug in your portable air conditioner and start using it. -
Page 12: Notes About The Exhaust Hose
However, in very humid conditions, the internal reservoir may fill completely. This causes the air conditioner to turn off to avoid overflowing the internal reservoir. The WATER indicator will light up on the Control Panel. -
Page 13: Control Panel Overview
EdgeStar Portable Air Conditioner Control Panel Overview Indicator Lights Cooling High Dehumidify Medium WATER Fan Only POWER Mode Speed Power Button Mode Button Speed Button Infrared Sensor Button Function Power Powers the unit on or off. Mode Changes between cool, dehumidify heat and fan modes. -
Page 14: Operating The Control Panel
3) Press the Mode button until the LED indicator next to “Dehumidify” lights up. Your air conditioner can work as a heat pump. It must be vented for it to expel the cold air out the exhaust. To operate the unit in heat mode: 1) Make sure the power cord is plugged into a power outlet. -
Page 15: Fan Only Mode
Timer button or Power button. LCD Display Water Light EdgeStar Portable Air Conditioner Fan Only mode is used to circulate the air in your room. No temperature setting is needed. To operate the unit in Fan Only mode: 1) Make sure the power cord is plugged into a power outlet. -
Page 16: Using The Remote Control
Using the Remote Control The remote control can be used instead of the control panel to remotely operate your portable air conditioner. The functions on the remote are the same as on the control panel. Power Button... -
Page 17: Energy Saving Guide
EdgeStar Portable Air Conditioner Energy Saving Guide Read and follow the guide below to get the best performance and efficiency from your portable air conditioner: Do not cover the air outlet (exhaust) while in use. Do not place the unit in front of curtains or drapes- to ensure they do not obstruct the air intake. -
Page 18: Maintenance
Clean the air conditioner and filters regularly to maximize performance and efficiency, and prolong the unit’s life. Be sure to always unplug the air conditioner from the power outlet before cleaning. Use a soft dry cloth to wipe the body clean. If necessary, use lukewarm water to dampen a cloth to clean the unit. -
Page 19: Troubleshooting
EdgeStar Portable Air Conditioner Troubleshooting Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause My air conditioner is Unit is not receiving not functioning at all power LCDI power cord is tripped Insufficient power Water reservoir is full... -
Page 20: Troubleshooting Continued
Troubleshooting continued Issue Possible Cause My air conditioner is Unit is not operating in not cooling at all cooling mode The compressor is not The ambient... -
Page 21: Specifications
EdgeStar Portable Air Conditioner Specifications Description of product Model Voltage/Frequency Input Power Current Color Dehumidifying capacity Coolant Timer Dimensions WxHxD Weight Portable Air Conditioner AP12000HS AC 115V~60Hz 950W 8.0A Silver 81 Pints/Day 12 Hour 17 1/10” 30 9/10” x15” 66 lbs... -
Page 22: Edgestar Limited Warranty
EdgeStar authorized repair facility. PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. - Page 23 Web: http://www.edgestar.com E-mail: service@edgestar.com Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. EdgeStar Products Box 81336...
