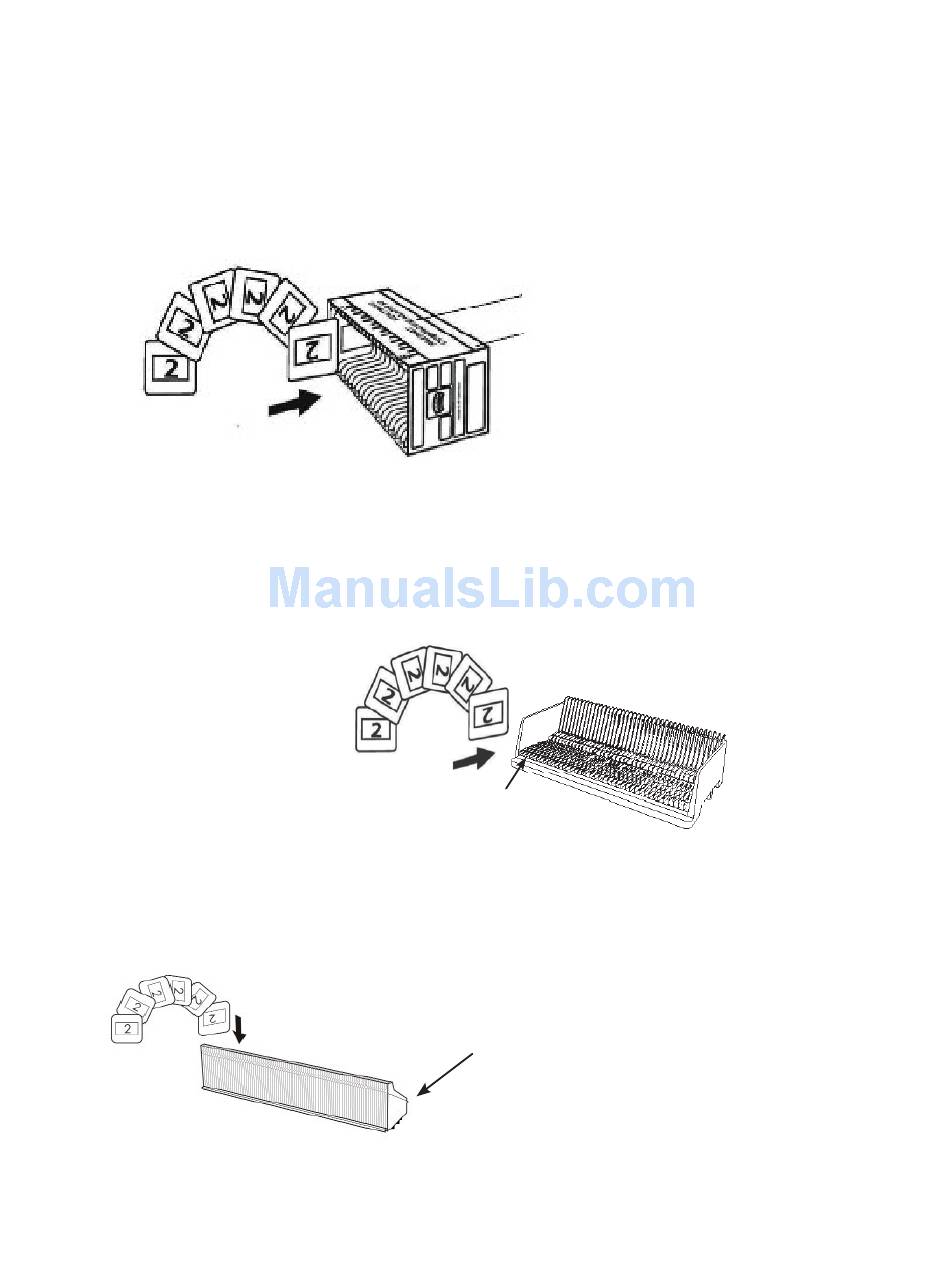

Loading slide(s) into aftermarket magazines
Paximat Compact Magazine (1.8-2.0mm slides)
a. As illustrated below, turn the magazine with the embossed lettering "COMPACT
MAGAZINE 50" and the white strip on the right facing towards the top.
b. Hold the slide right side up, facing forward so the image is NOT reversed.
Rotate the slide as illustrated and Insert each slide, one at a time, into the
magazine.
CS Magazine (European)
a. Locate the numbering sequence text on the CS slide magazine indicating
b. Hold the slide right side up, facing forward so the image is NOT reversed.
CS Magazine
LKM Magazine (US & Europe)
a. Locate the numbering sequence text on the front of the LKM
b. Hold the slide right side up, facing forward so the image is NOT
the slide order. The numbers should be facing up and starting from the
left.
Rotate the slide as illustrated and Insert each slide, one at a time, into
the magazine.
Numbering
slide magazine indicating the slide order. The numbers should
be facing forward and starting from the right
re- versed. Rotate the slide as illustrated below (180 deg) and
Insert each slide into the slots, one at a time, into the magazine.
Lettering
Compact Magazine
White Strip
Numbering
5
