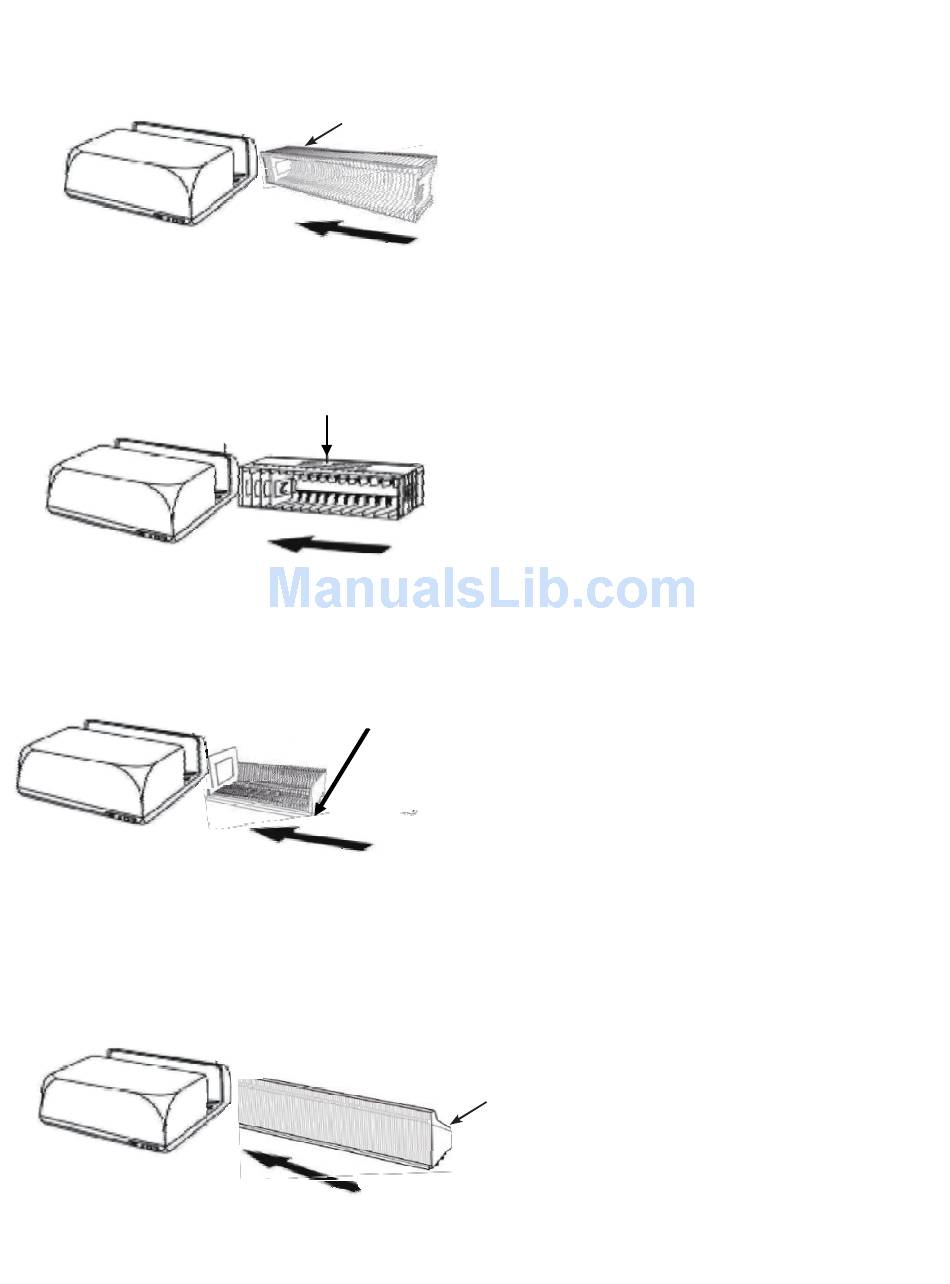

Loading the magazine(s) into the scanner
Paximat/Bundled Magazine
Numbering
Slide order numbers printed on top of magazine the
large opening you load the slides into faces the back of
the device., This tray needs to be level otherwise it will
not insert and appear to be blocked by a small black tab
on the bottom of the tray area, if it hits this the tray is
not level, it needs to guide in straight and touch the
"Slide Transport" Tappet scanning arm
Numbering
Compact Magazine
Insert with the Embossed letters facing up
and the white stripe near the front panel of
the scanner.
CS Magazine
Numbering
Slide order numbers printed on
magazine facing towards the back of
the scanner.
LKM Magazine
Turn the slide tray around so the numbers face the
front of the device and the open slots face the back,
before inserting
Numbering
