Mirage D-1010-ATVN Instruction Manual

D-1010-ATVN Instruction Manual

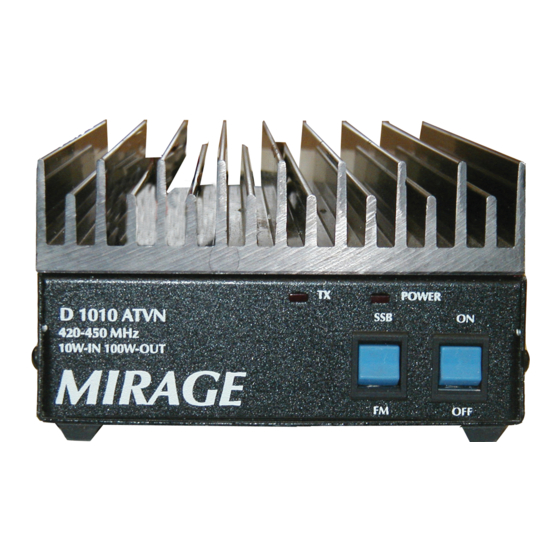

The MIRAGE D-1010-ATVN represents the latest in 430-450 MHz Power amplifiers. It incorporates
features that make it the most versatile and useful amplifier available today. The D-1010-ATVN will
amplify FM, SSB, and CW signals. It has variable SSB delay, remote Keying, over-temperature protection,
and remote control operation when using the optional RC-1, Remote.

SPECIFICATIONS

FREQUENCY RANGE .................... 430-450 MHz
POWER............................................. INPUT: 3-15 watts
MODES............................................. FM, SSB, CW, ATV with modifications
DC POWER ...................................... 13.6 VDC @ 20 amps nominal
FUSE ................................................. 35 AMP (internally mounted)
IMPENDANCE................................. 50 Ohm input and output
DUTY CYCLE.................................. Intermittent-internal overtemp
SIZE................................................... 12" x 3" x 5-1/2"
WEIGHT ........................................... 5 LBS

INSTALLATION

The D-1010-ATVN may be mounted using the brackets (supplied when request is
returned via warranty card) or simply placed in a convenient operating position. The D-
1010-ATVN must have adequate ventilation for the finned heat-sink. Use #8 or larger
wire to connect the D-1010-ATVN to the battery is recommended. RG-8U, or the
equivalent, should be used between the D-1010-ATVN and the antenna. The antenna
should be matched to better than 1.5:1 for best performance. SWR greater than 3:1 may
cause damage to the amplifier voiding and warranty.

FRONT PANEL FUNCTIONS

POWER ON/OFF.............................. This switch turns the power amplifier ON and OFF.
SSB/FM............................................. Selects the relay time-delay for the mode of
LED (Power/On) ............................... This LED will go out if the amplifier overheats. It
LED (Tx) ........................................... This LED will light during transmitting periods.
D-1010-ATVN
430-450 MHz AMPLIFIER
OUTPUT: Min of 100 watts with 10W in
operation. In either the SSB or FM position, the
amplifier is still biased for linear operation.
will come back on when the amplifier cools.
430-450 MHz Power Amplifier
1
