MIRAGE BD-35
DUAL BAND POWER AMPLIFIER

INTRODUCTION:

The Mirage BD-35 is a 45/35 watt dual band power amplifier for use with
today's dual band handie talkies operating in the 144/440MHz bands. We
have succeeded in the development of a cross-band full duplex function and
have incorporated it into this design.
amplifier unit employs the new "two band / one RF power transistor"
technique. The BD-35 is a remarkable and useful dual band power amplifier
for the discriminating Amateur Radio operator.

FEATURES:

•
High output power
Up to 45 watts at 144MHz or up to 35 watts at 440MHz. 30 to 35
watts is achieved with 2 to 6 watts input.
•
Input power from 0.3 to 7 watts
With an input power of 7 watts maximum, the Mirage is compatible
with most modern hand-held tranceivers.
•
Small size
This amplifier's size makes it the perfect companion for field operation
without the added weight.
•
Automatic Frequency selection and control circuit
This allows the amplifier to have only one input connector and makes
for a perfect match for today's dual band radios and dual band
antennas.
•
Reverse DC power polarity protection circuit
Protects the amplifier from accidental reversing of the power leads.
•
"ON-AIR" indicator
Lets you know that you are transmitting.

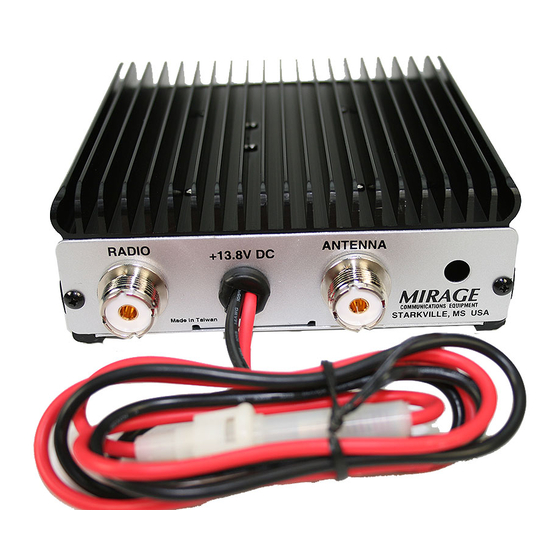

MIRAGE BD-35 Dual Band Amplifier
The compact design of the power
