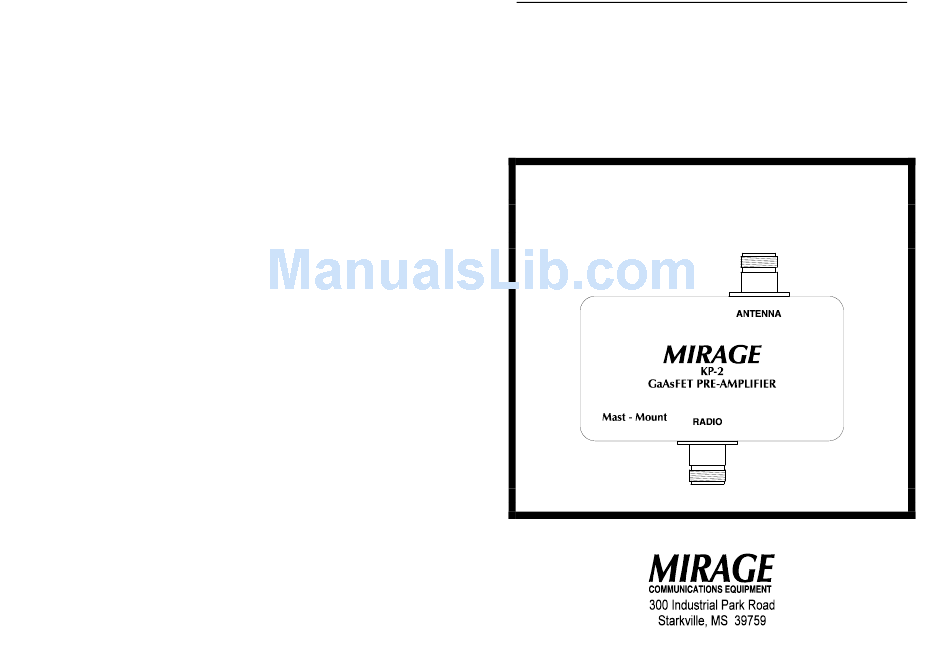

- Page 1 MIRAGE KP-2 Pre-Amplifier Instruction Manual MAST-MOUNT GaAsFET PRE-AMPLIFIER KP-2 Series 10M, 6M, 2M, 1-1/4M, 70 CM Version A Copyright © 1996, MIRAGE Communications Before operating this unit, please read these instructions completely.
- Page 2 MIRAGE KP-2 Pre-Amplifier MIRAGE KP-2 Mast-Mount Pre-Amplifier General Information This in-line GaAs-FET receive pre-amp provides high gain and low noise amplification for weak receive signals. The KP-2 also has automatic RF- switching, which disengages the pre-amp any time it detects a transmission signal being emitted by the tranceiver.
- Page 3 1 3.5mm Coax plug 1 RCA Phono plug KP-2 Pre-Amplifier Installation The MIRAGE KP-2 is designed to be easily mounted on your 1-3/4" diameter antenna mast: Place the supplied 1-3/4" U-bolt around your antenna mast and slip the supplied 1-34" cradle onto it.
- Page 4 Connect a short length of good quality 50 Ohm coax cable from the ANTENNA output of your Radio to the 'N'-Connector on the right side of the KP2RC Control Unit (the side with the RCA phono connector). MIRAGE KP-2 Pre-Amplifier and Control Unit Figure 1...
- Page 5 Reseal the cover with a small bead of silicone or other appropriate sealing material. The MIRAGE KP-2 Pre-Amplifier is now ready to go! Apply power to the KP-2 by placing the POWER switch on the KP2RC Control Unit in the ON position.
