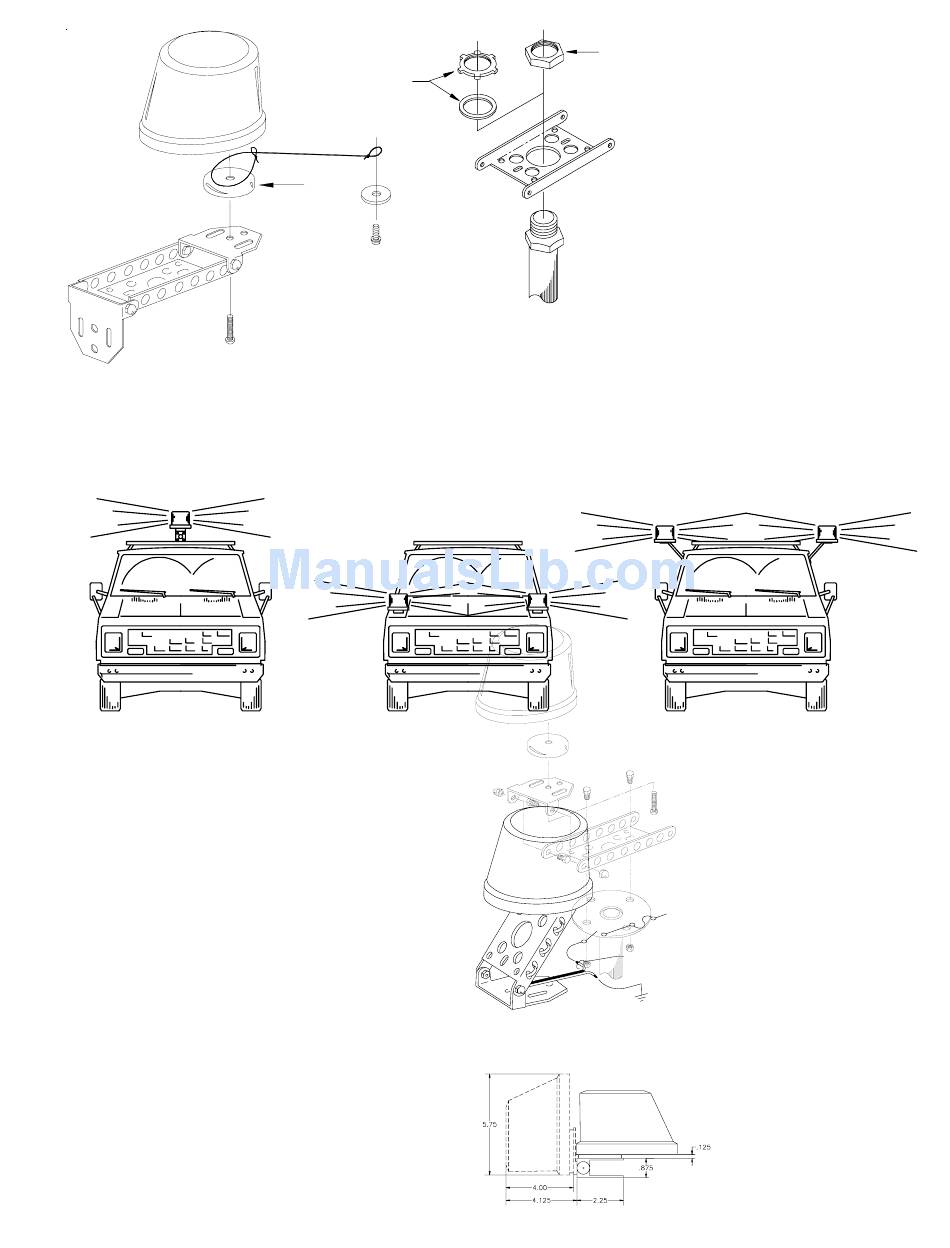

Pole or Stanchion Mounting

The mounting kit can be used to mount the DashLaser
plumbing hardware (see illustrations).

Direct Wiring

If you wire the DashLaser directly to a power
source instead of using the cigarette plug, be
sure the wire from the DashLaser is positive,
and connects to the +12 volt power supply.
The smooth wire is the ground (earth) wire. It
is advisable to put a 10 amp in-line fuse on the
ribbed wire between the DashLaser and the
power source.
Permanently mounted units can be tipped to
remove lens. Clearances are shown here.
ELECTRICAL
CONDUIT
HARDWARE
Tether Cord
MAGNET
ACTS AS
SPACER
FIGURE 9
FIGURE 10
6
PLUMBING
HARDWARE
®
to a 1/2" or 3/4" pipe by using standard electrical (1/2") or
CUSTOMER SUPPLIED
SWITCH AND 10AMP FUSE
RIBBED WIRE IS
POSITIVE
SOLID CHASSIS
GROUND (EARTH)
+12V
FIGURE 11
