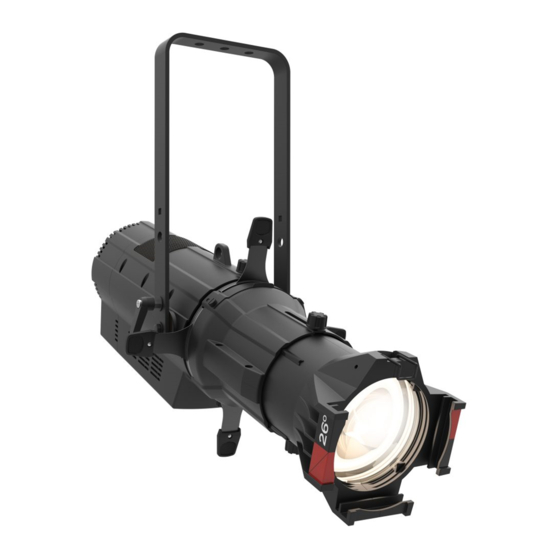

- Page 1 User Manual * Lens tubes sold separately Model ID: OVATIONE930VW...
- Page 2 Ovation E-930VW. Trademarks Chauvet, the Chauvet logo, Ovation, and Ovation E-930VW are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies..
-
Page 3: Table Of Contents
Static Mode ........................Red Shift ........................Master/Slave ........................Dimmer Curve ........................ Dimmer Profiles......................White Balance ........................ LED Frequency ......................Fan Mode ........................Back Light ........................System Information ......................Factory Reset......................... Preset Color Temperature Chart..............17 Ovation E-930VW User Manual Rev. 7... - Page 4 DMX Values ....................18 18Ch / 15Ch / 11Ch ....................... 8Ch / 6Ch / 5Ch / 3Ch....................5. Maintenance................Product Maintenance ..................20 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................22 Ovation E-930VW User Manual Rev. 7...
-
Page 5: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Ovation E-930VW User Manual Rev. 7... -
Page 6: Safety Notes
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it. • In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. Ovation E-930VW User Manual Rev. 7... -
Page 7: Fcc Statement Of Compliance
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Ovation E-930VW User Manual Rev. 7... -
Page 8: Introduction
2. Introduction Description The Ovation E-930VW is a high-performance, variable white ellipsoidal-style fixture that uses Chauvet’s unique six-color LED system. The fixture projects a bright and beautifully flat field of light in nearly any temperature of white with high CRI and CQS. Each color temperature can be further adjusted for +/- green to perfect the field of light. -
Page 9: Product Overview
3-in patterns. B-Size holder for 2.5-in and 2.75-in patterns, sold separately Accessory slot Beam focus knobs (x2) Gel frame holder Barrel rotation knobs (x2) Lens tube (sold separately) Barrel assembly Light engine Ovation E-930VW User Manual Rev. 7... -
Page 10: Product Dimensions
Introduction Product Dimensions 25 in 636 mm 28 in 800 mm 13.5 in 344 mm 23 in 590 mm Ovation E-930VW User Manual Rev. 7... -
Page 11: Setup
AC Ground Green/Yellow Green/Yellow Green Power Linking It is possible to power link Ovation E-930VW products. See the table below for the current draw at each voltage and frequency: 120 V, 60 Hz 208 V, 60 Hz 230 V, 50 Hz Current Draw 1.2 A... -
Page 12: Remote Device Management
Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Procedure The Ovation E-930VW comes with a double-bracketed yoke that can be used as a floor stand or to which mounting clamps can be attached for hanging. Mounting clamps must be purchased separately. Ensure that the clamps can support the weight of this product. -
Page 13: Manual Beam Focus Control
Bracket adjustment knob Manual Beam Focus Control The Ovation E-930VW has a manual focus, which is adjusted as follows: Locate the beam focus knobs at the top and bottom of the barrel assembly. Loosen the knobs by turning them counter-clockwise. -
Page 14: Accessory Slot
Ovation E-930VW. Soft Focus Filter The Ovation E-930VW comes with a soft focus filter. To keep the soft focus filter in good condition: • Ensure that no fingerprints are left on the filter, as this may cause the filter to heat unevenly and eventually warp. -
Page 15: Operation
Navigates downward through the menu list or decreases the numeric value when in a <DOWN> function Control Options Set the Ovation E-930VW starting address in the 001-512 DMX range. This enables control of up to 10 products in the 18-channel personality. Programming Refer to the Menu Map to understand the menu options. -
Page 16: Menu Map
18-channel: dimmer, fine dimmer, red, fine red fine, orange, fine orange, green, 18Ch fine green, royal blue, fine royal blue, blue, fine blue, lime, fine lime, strobe, color temperature, hue, control Ovation E-930VW User Manual Rev. 7... - Page 17 Color Mixer Royal Blue color (0–100%) Blue Lime Red Shift Mimics halogen lamp dimming Receives DMX signal from the DMX Master controller (master) Master/ Slave Receives DMX signal from the master Slave unit Ovation E-930VW User Manual Rev. 7...
- Page 18 Shows total LED hours Information Version V_._ Shows current firmware version _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID Reset Resets the product to factory default Factory settings Ovation E-930VW User Manual Rev. 7...
-
Page 19: Standalone Configuration
Select the desired option (Linear, Square, I Squa, or SCurve). Dimmer Profiles This setting determines how fast the output of the Ovation E-930VW changes when the output value is modified. It provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 20: White Balance
Keep a safe distance from flammable objects. Back Light This setting allows for selection of the amount of time the backlight on the Ovation E-930VW’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. -
Page 21: Preset Color Temperature Chart
8000K Note: The color temperatures above are simulated renditions of the color output produced as compared to a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy. Ovation E-930VW User Manual Rev. 7... -
Page 22: Dmx Values
Dimmer Mode 2 088 095 Dimmer Mode 3 096 103 Fan Auto 104 111 Fan On 112 119 Fan Off 120 127 Fan Silent 128 255 No Function Ovation E-930VW User Manual Rev. 7... -
Page 23: 8Ch / 6Ch / 5Ch / 3Ch
0–100% 000 010 No function – – Strobe 011 255 Strobe, slow to fast Color – – 000 255 Refer to Preset Color Temperature Chart Temperature 000 000 No function Ovation E-930VW User Manual Rev. 7... -
Page 24: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Ovation E-930VW User Manual Rev. 7... -
Page 25: Technical Specifications
I/O Connector Channel Range 3- and 5-pin XLR 3, 5, 6, 8, 11, 15, and 18 channels Ordering Product Name Item Code UPC Number Ovation E-930VW 03121411 781462217594 UL 1573 CSA C22.2 No. 166 E113093 Ovation E-930VW User Manual Rev. 7... -
Page 26: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Ovation E-930VW User Manual Rev. 7...
