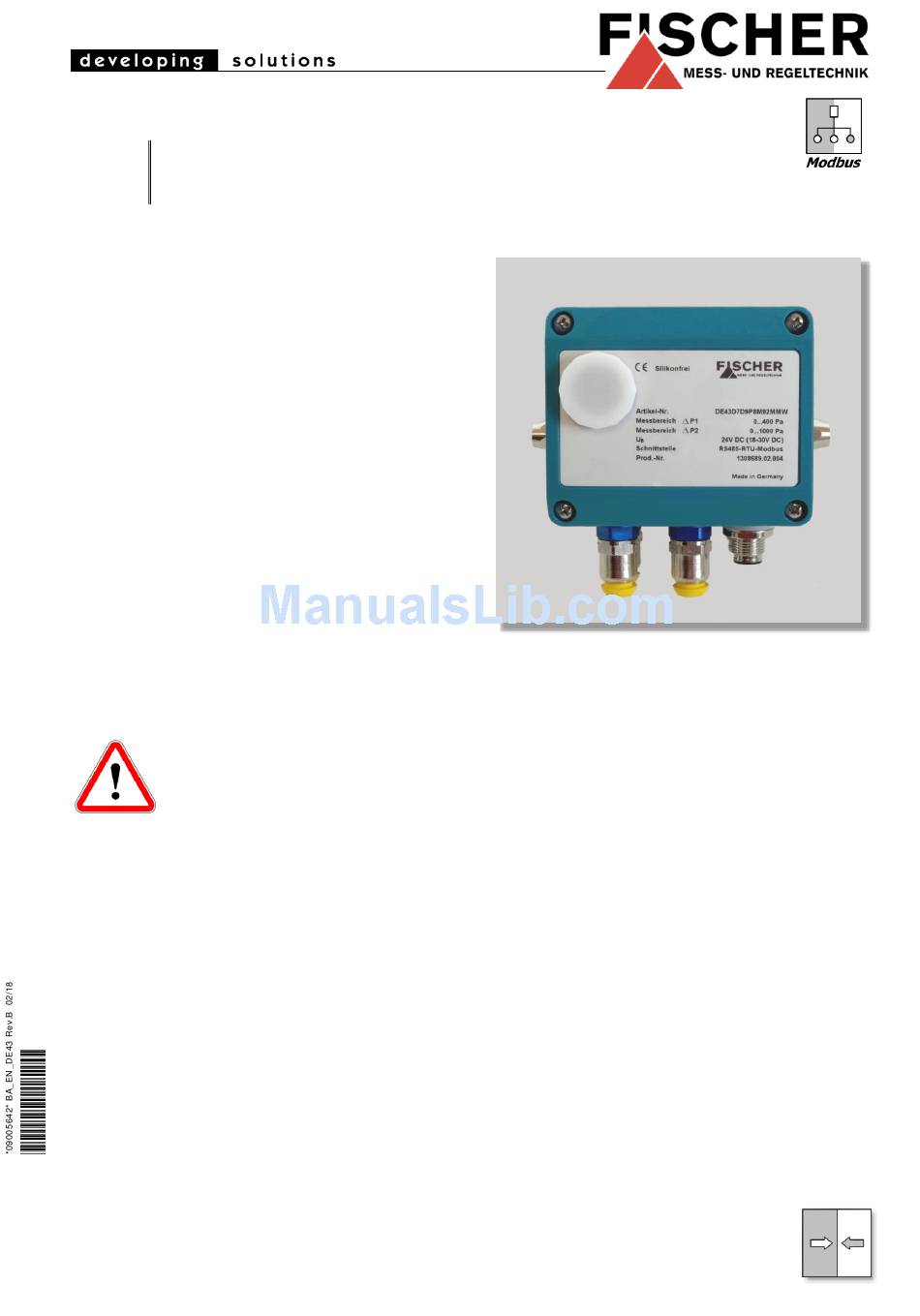

FISCHER DE43 Operating Manual

Digital 2-channel transmitter for direct connection to bus-capable automation devices
Hide thumbs Also See for DE43:

Advertisement

Quick Links

Operating Manual
DE43
Digital 2-channel transmitter for direct
connection to bus-capable automation devices
Table of contents
1
Safety instructions
2
Application purpose
3
Description of the product
4
Installation and assembly
5
Commissioning User guide
6
Maintenance
7
Transport
8
Service
9
Accessories
10 Disposal
11 Technical data
12 Dimensional drawings
13 Order Codes
14 Declaration of conformity
1
Safety instructions
1.1
General
This operating manual contains in-
structions fundamental to the installa-
tion, operation and maintenance of
the device that must be observed un-
conditionally. It must be read by the
assembler, operator and the specialized personnel
in charge of the instrument before it is installed and
put into operation. This operating manual must be
kept in an easily accessible place at the place of in-
stallation.
The subsequent sections on general safety instruc-
tions (1.2 - 1.7) as well as the following special in-
structions in particular about assembly, commis-
sioning and maintenance (2 to 10) contain im-
portant safety instructions, the non-observance of
which can endanger persons, animal and physical
objects.
1.2
Personnel Qualification
Staff assigned to assembly, operating, maintenance
and inspection tasks shall be adequately qualified
for this work and must be sufficiently instructed and
trained to meet the requirements of assembly, op-
erating, maintenance and inspection work.
1.3
Risks due to Non-Observance
of Safety Instructions
Non-observance of these safety instructions, the in-
tended use of the device or the limit values given in
the technical specifications can be hazardous or
cause harm to persons, the environment or the
plant itself. Fischer Mess- und Regeltechnik GmbH
will not be liable for damage claims if this should
happen.
1.4
Safety Instructions for the Operating
Company and the Operator
The safety instructions governing correct operation
of the instrument must be observed. The operating
company must make them available to the installa-
tion, maintenance, inspection and operating per-
sonnel. Dangers arising from electrical components,
energy discharged by the medium, escaping medi-
um and incorrect installation of the instrument must
be eliminated. For more information, please see the
applicable national and international regulations,
such as DIN, EN, accident prevention regulations
(UVV) and - for industry-specific individual applica-
tions - also in the industry guidelines issued by the
DVWG, Ex, GL, etc. as well as VDE and local EVUs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DE43 and is the answer not in the manual?

Questions and answers

Summary of Contents for FISCHER DE43

  • Page 1 Fischer Mess- und Regeltechnik GmbH conditionally. It must be read by the will not be liable for damage claims if this should assembler, operator and the specialized personnel happen.
  • Page 2: Application Purpose

    This also applies to replacement parts. Any modifica- tions / alterations required must be carried out by Fischer Mess- und Regeltechnik GmbH only. Inadmissible Modes of Operation The operational safety of this instrument can only be guaranteed if it is used as intended.
  • Page 3: Electrical Connection

    The max. number of bus participants per supply cir- cuit depends on the number of existing digital inputs. The power draw of a DE43 is calculated as follows: ���������� �������������� = 0,055�� + ����. ���� �������������������������� ∗ 0,0045�� Signal name...
  • Page 4: Commissioning User Guide

    4.2.6 Terminating resistors We recommend terminating both end points of the Modbus RTU network with 120Ω resistors, which are availa- ble separately, to guarantee error-free data transmission. Commissioning 5.2.1 Setting the Baud rate, parity and stopbit User guide Remove the screw cap on the front of the device. You are now in a position to reach the DIP switches Requirements required for configuration.
  • Page 5 Baud rate Parity If, for example, you want to set the address 24, you Set the baud rate as follows using the switches need to set the switches S4 and S5 whilst the other S1 ... S3: switches are at "OFF". Baud rate 1200 Priority...
  • Page 6 The function code 43/ 14 can be used to call up in- Data type Description formation about the device via the Modbus interface. The DE43 supports the categories Basic and Regu- Boolean Digital input 1 0 / 1 lar. The following contains an overview of the avail-...
  • Page 7: Maintenance

    Take adequate preventive measures. If required, the de- The DE43 is ready for operation vices must be cleaned thoroughly. very The DE43 sends an answer to the short master via the Modbus Accessories 1 x long Pressure sensor 1: •...
  • Page 8: Technical Data

    11 Technical data Positive ranges 0… ± ranges mbar ±2.5 ±4 ±6 ±10 ±16 Measurement range 1000 1600 ±250 ±400 ±600 ±1000 ±1600 ±0.25 ±0.4 ±0.6 ±1 ±1.6 Max. stat. operating pressure mbar Bursting pressure mbar max. Characteristic curve de- viation typ.
  • Page 9: Dimensional Drawings

    12 Dimensional drawings (all dimensions in mm unless otherwise specified) Model with hose screw connection Wall mounting plate Rear view without wall mounting plate 2 x M12 connector socket CuZn, nickel-plated Boreholes for tapping Aluminium hose screw connections or screws diam. 3.5 mm hose 6/4mm and 8/6mm Model with pneumatic plug connector Type plate...
  • Page 10: Order Codes

    13 Order Codes Digital 2-channel transmitter for direct connection to bus-capable automation devices DE43 Channel 1 - measuring allowed stat. operating range pressure 0 … 4 mbar ..50 mbar ....> 0 … 6 mbar ..50 mbar ....>...
  • Page 11 Order Codes (Continued) Digital 2-channel transmitter for direct connection to bus-capable automation devices DE43 Discharge port Aluminium screw connection for 6 / 4 mm hose ..........> 4 Aluminium screw connection for 8 / 6 mm hose ..........> 4...
  • Page 12: Declaration Of Conformity

    Technische Änderungen vorbehalten • Subject to change without notice • Changements techniques sous réserve Fischer Mess- und Regeltechnik GmbH • Bielefelder Str. 37a • D-32107 Bad Salzuflen • Tel. +49 5222 9740 • Fax +49 5222 7170 eMail: info@fischermesstechnik.de • www.fischermesstechnik.de...
