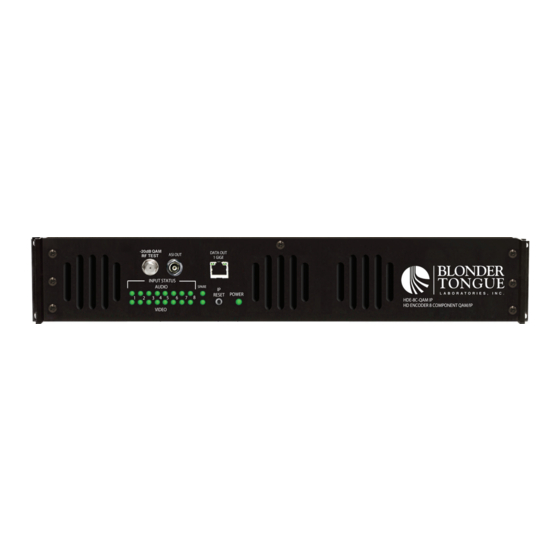

MPEG-2 HD Encoder
HDE-8C-QAM/IP/Opt 2
8xComponent/Composite + 1xSpare inputs
4xQAM + 1xASI outputs + 8xIP
EAS compatible
©2015 Blonder Tongue Laboratories, Inc. All rights reserved. Specifications are subject to change without notice. Trademarks are the property of their respective owner.
Status
Date
Active
June 4, 2015
800-523-6049
www.blondertongue.com
Document No.
Issue No.
651239000A
-
Stock
No. 6370-IP-2
User Manual
IP Option
Addendum
Author
KK
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blonder tongue HDE-8C-QAM/IP/Opt 2
Summary of Contents for Blonder tongue HDE-8C-QAM/IP/Opt 2
- Page 1 4xQAM + 1xASI outputs + 8xIP EAS compatible Status Date Document No. Issue No. Author Active June 4, 2015 651239000A 800-523-6049 www.blondertongue.com ©2015 Blonder Tongue Laboratories, Inc. All rights reserved. Specifications are subject to change without notice. Trademarks are the property of their respective owner.
- Page 2 LED is off = indicates (i) AC power is not connected, or (ii) AC power is connected but the power supply is defectiv RJ45 connector for GigE (1000Base-T Ethernet) interface for SPTS or MPTS output streams. The unit must be sent to blonder Tongue for repair for condition (ii). The unit must be sent to blonder Tongue for repair for condition (ii).
- Page 3 "Main > Status" Screen The “Main > Status” screen is a “read only” screen and displays Input, PID and Output information of each of the four (4) transport streams (TS). Each TS contains two (2) programs: "Main > Status" Screen In the section entitled “Input”...
- Page 4 "Main > Output > IP" Screen The “Main > Output > IP” screen is a “read and write” screen to assign the IP parameters for the TS: “Main > Output > IP” Screen Destination IP: allows user to assign the IP address of the equipment to which the GigE output is streamed to. The Destination IP Address must be present before streaming occurs, otherwise the session is aborted. For Multicast applications, the IP address must be in the range 224.0.0.0 through 239.255.255.255.
