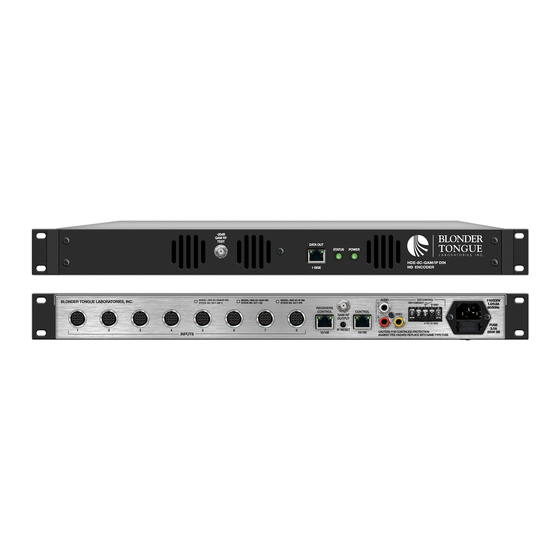

HDE-8C DIN SERIES
STEP 1 - Connect the Inputs
H25 Receiver
H25 Receiver
#1
#2
HD MPEG-2 Encoding
• Locate the blank receiver labels in the plastic bag supplied with the encoder. Number each label
with UNIT numbers 1 through 8.
• Find the receiver ID number label on the first receiver. Write the last 4 digits of the ID on label #1
(RX1_####__) and place on the front of the receiver.
• Repeat for all 8 satellite receivers.
Now connect each receiver output with DIN cables (Stk#3703) to the encoder inputs, making
1
sure that receiver #1 (RX#1) is connected to #1 component input on the encoder. Repeat this
process for remaining receivers.
2

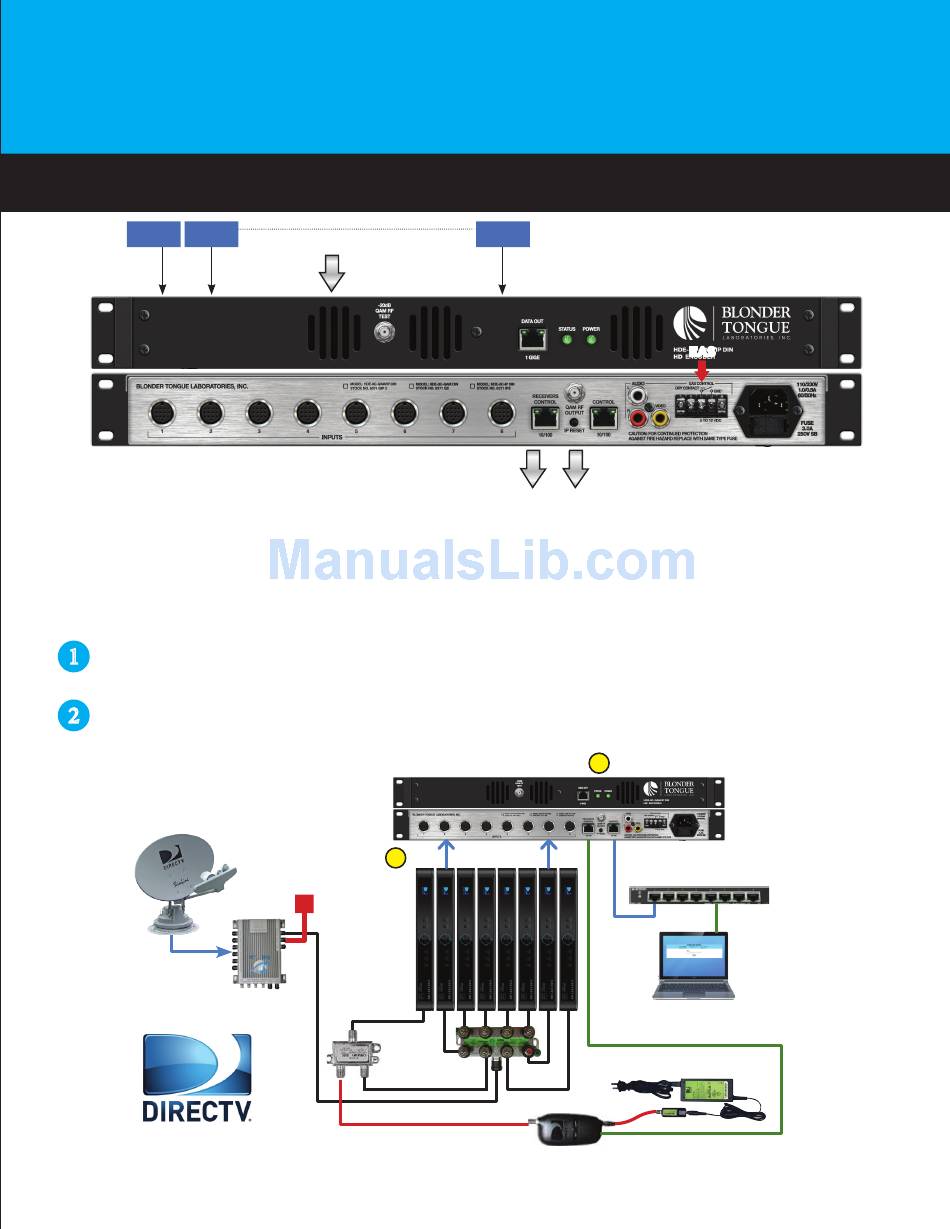

Connect the 8 satellite receivers and the BBDECA as shown below.
• Power up the receivers and the encoder.
Connect the equipment as follows:
Refer to DIRECTV
installation procedures
www.blondertongue.com
QUICK GUIDE
8xDIN
(Component Video)
(8 HD Programs)
1
RX#1
PS
SWS-8WBMC
H25 Receiver
#8
8xIP*
4xQAM*
2
DIN Cables
RX#8
BBDECA
DC to RF Adapter
Document#651243700A
EAS
* Model dependent
Control & Monitoring
DT-16PT100M-RM
PC with web browser
CAT5
DECA Power Supply
Ethernet Port
Stock #6371 QIP 2 | #6371 Q 2 | 6371 IP 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blonder tongue HDE-8C
Summary of Contents for Blonder tongue HDE-8C
- Page 1 HDE-8C DIN SERIES QUICK GUIDE STEP 1 - Connect the Inputs H25 Receiver H25 Receiver H25 Receiver 8xDIN (Component Video) HD MPEG-2 Encoding (8 HD Programs) * Model dependent 8xIP* 4xQAM* • Locate the blank receiver labels in the plastic bag supplied with the encoder. Number each label with UNIT numbers 1 through 8.
- Page 2 STEP 2 - Login • Log in to the HDE-8C-QAM DIN, using a standard web browser. • This can be done through the Control 10/100 port, next to the Receiver Control port. Either go directly from a computer or through an Ethernet switch •...
- Page 3 Assign the Destination IP, Encapsulation protocol, Destination and Source Ports for each transport stream. Verify the Stuffing is set to “Disabled” and the Output is “Enabled” Click “SAVE” to apply the settings. NOTE: The IP Output Tab is only available on the HDE-8C-QAM/IP DIN and the HDE-8C-IP DIN models.
- Page 4 Manual (PDF document). First time website visitors are required to complete a short registration process prior to accessing product information. Once signed in, you can quickly navigate to the product page using search by entering the HDE-8C DIN model name. The Instruction Manual can be found under the “Documents” tab of each product page.
