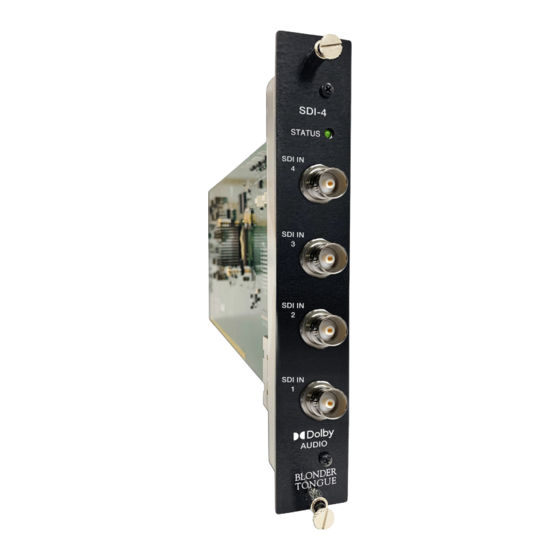

4 Channel HD-SDI Video Encoder
MPEG-2 / H.264 (AVC) / H.265 (HEVC)
Stock #
6734
© Blonder Tongue Labs, Inc.
All Rights Reserved. Specifications subject to change without notice. All trademarks are property of their respective owners.
PRELIMINARY
S U B J E CT TO C H A N G E
Model Name
Description
NXG-SDI4
4 Channel SDI Encoder Module
ISO 9001:2015 Certified
NXG-SDI4
User Manual
P/N: 651xxxxxxA | Rev: 102521
Advertisement
Table of Contents
Related Manuals for Blonder tongue NXG-SDI4
Summary of Contents for Blonder tongue NXG-SDI4
- Page 1 Model Name Description 6734 NXG-SDI4 4 Channel SDI Encoder Module P/N: 651xxxxxxA | Rev: 102521 © Blonder Tongue Labs, Inc. ISO 9001:2015 Certified All Rights Reserved. Specifications subject to change without notice. All trademarks are property of their respective owners.
- Page 2 Returning Product for Repair (or Credit) A Return Material Authorization (RMA) Number is required on all products returned to Blonder Tongue, regardless if the product is being returned for repair or credit. Before returning product, please contact the Blonder Tongue Service www.blondertongue.com Department at 1-800-523-6049, Ext.
-
Page 3: Table Of Contents
NXG-SDI4 Module User Manual Table of Contents SECTION 1 – GENERAL & SAFETY INSTRUCTIONS ....................... 4 SECTION 2 – PRODUCT SUMMARY ..........................5 2.1 PRODUCT APPLICATION & FEATURES ........................5 2.2 MODULE SPECIFICATION ............................6 SECTION 3 – MODULE STATUS AND GENERAL MANAGEMENT ................. 7 3.1 “4CH SDI ENCODE MODULE: STATUS”... -
Page 4: Section 1 - General & Safety Instructions
å Do not use accessories or attachments not recommended by Blonder Tongue, as they may cause hazards, and will void the warranty. -
Page 5: Section 2 - Product Summary
Application: The NXG-SDI4 module will encode up to 4 channels in MPEG-2, H.264 (AVC), or H.265 (HEVC) video to IP SPTS onto the NXG mainframe backplane for further NXG processing with optional QAM modulation, DRM/CAS, or IPTV multicast or unicast output. -
Page 6: Module Specification
6 NXG-SDI-4 Module User Manual 2.2 Module Specification Input Output Encoding Connector 4x BNC SDI SPTS to NXG Mainframe Backplane SD-SDI TS Format ISO 13818-1 SPTS on UDP/IP Video Bit Rate 270 Mbps Video Resolution 480i Video Format MPEG-2, H.264 , H.265 (59.94, 60 FPS) (AVC) -
Page 7: Section 3 - Module Status And General Management
NXG-SDI4 Module User Manual Section 3 – Module Status and General Management 3.1 “4Ch SDI Encode Module: Status” Tab The “4Ch SDI Encode Module: Status” tab (Figure 3.1a) displays the general health and module information at a glance. The information is provided as a quick way to monitor the module or assist with troubleshooting issues that may arise. -
Page 8: 4Ch Sdi Encode Module: System" Tab
8 NXG-SDI-4 Module User Manual 3.1 “4Ch SDI Encode Module: Status” Tab (continued) 176 °F 185 °F Temperature: Indicates the temperature each module 80 °C 85 °C encoder input is currently running at. The temperatures are displayed in both Fahrenheit and Celsius. (Figure 3.1b) Normal Temperature Normal Temperature Warning... -
Page 9: Section 4 - Configuring The Encoders
NXG-SDI4 Module User Manual Section 4 – Configuring the Encoders 4.1 “Encode: Status” Screen The “Encode: Status” Tab (Figure 4.1) is a “read-only” screen which indicates the status of each encoder. A visual status of the pipeline is also shown on the left side. When hovering over an encode block, the corresponding status table, to the right, highlights. -
Page 10: Encode: Settings" Screen
10 NXG-SDI-4 Module User Manual 4.2 “Encode: Settings” Screen The “Encode: Settings” Tab (Figure 4.2) allows the user to configure each encoder (EC) and displays status information about the input and output streams. A visual status of the pipeline is also shown on the left side. When hovering over an encode block, the corresponding status table, to the right, highlights. -
Page 11: Section 5 - Firmware Updates
Figure 5d - Completed Update Please Note: An update can be applied and finalized by using the reboot control through the NXG-SDI4 system page, the master controller system page, or by power-cycling a module (ie. pulling the module out of a NXG system). -
Page 12: Section 6 - Troubleshooting
12 NXG-SDI-4 Module User Manual Section 6 – Troubleshooting For technical support please contact us at 1-800-523-6049 between the hours of 8am and 5pm EST. - Page 13 NXG-SDI4 Module User Manual NOTES...
- Page 14 14 NXG-SDI-4 Module User Manual NOTES...
- Page 15 NXG-SDI4 Module User Manual NOTES...
- Page 16 Limited Warranty Limited Warranty Seller will at its sole option, either repair or replace (with a new or factory reconditioned product, as Seller may determine) any product manufactured or sold (or in the case of software, licensed) by Seller which is defective in materials or workmanship or fails to meet the applicable specifications that are in effect on the date of shipment or such other specifications as may have been expressly agreed upon in writing: (i) for a period of one (1) year (and for all BIDA products a period of eight (8) years) from the date of original purchase for all stock hardware products (ii) for a period of one (1) year from the date of original purchase (or such shorter period of time as may be set forth in the license agreement specific to the particular software being licensed from Seller) with respect to all software products licensed from Seller (other than Core...
