Summary of Contents for Stryker TP600

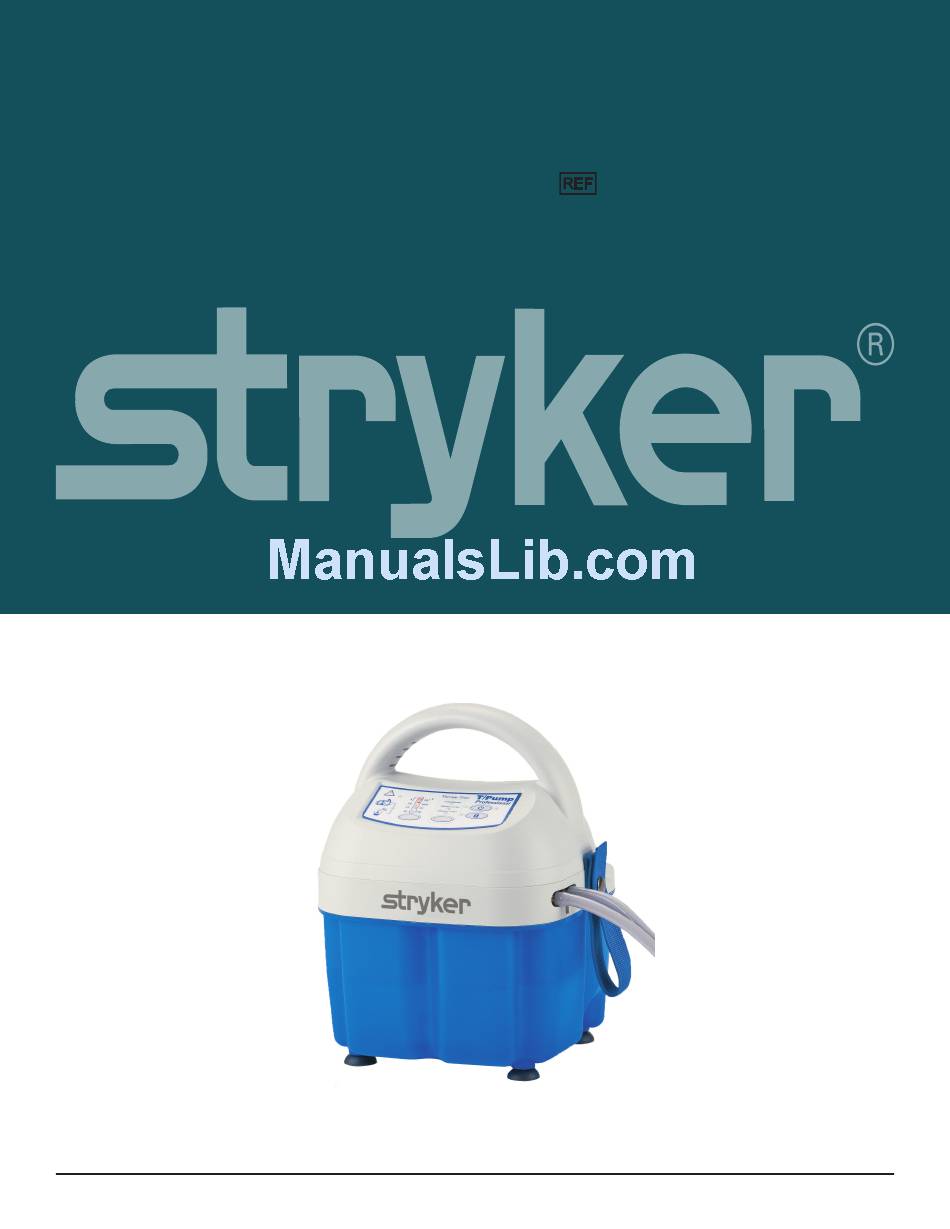

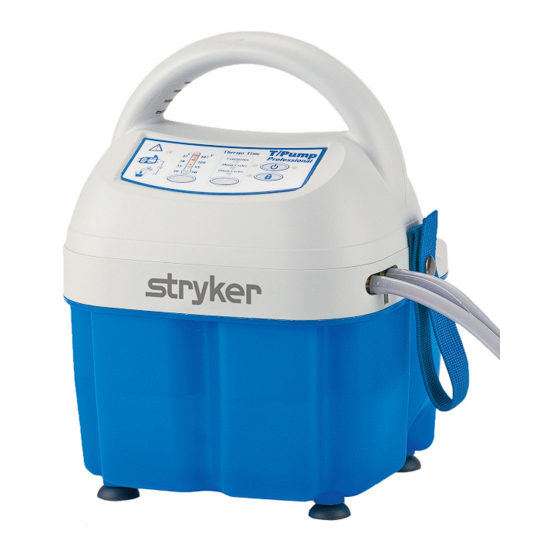

- Page 1 T/PUMP® Series Localized Temperature Therapy System TP600 & TP700 Service Manual 2014/06 E.3 101176 REV E...
-
Page 3: Symbols And Definitions
Symbols and Definitions SYMBOLS General Warning Caution Warm Water Fill Line Cold Water Fill Line Attention, consult Operator’s Manual Water Levels Water Flow Dangerous Voltage Type BF Applied Part Do not penetrate with sharp object Medical Electrical Equipment with Respect to Electrical Shock, Fire, and Mechanical hazards in ac- cordance with UL 60601-1, and CAN/CSA C22.2 No. -
Page 4: Table Of Contents
Keypad Features TP600 Series ........ -
Page 5: Safety Precautions
Modifying the product aslo voids the product warranty. • Do not use accessories other than those specified by Stryker. Using competitor accessories may result in unpredictable operation resulting in injury to the patient or operator or damage to the product. -
Page 6: Introduction
Any claims for shortage or damage must be filed with the delivering carrier by the purchaser. Do not return pumps that were damaged in shipment to Stryker without contacting our Technical Service Department for advice (see phone numbers below). If damaged goods are returned to Stryker without notifying the carrier, Stryker will assume the repairs will be made at the customer’s expense. -
Page 7: Introduction
Modifying the product aslo voids the product warranty. • Do not use accessories other than those specified by Stryker. Using competitor accessories may result in unpredictable operation resulting in injury to the patient or operator or damage to the product. -
Page 8: Catalog Descriptions
: 18"w x 26"l (33cm x 46cm) Nonwoven fabric on each side with quick disconnect. 10 per carton *Non-CE Products To order any of these products contact your dealer or Stryker’s Customer Service Department at: Telephone: 1-800-327-0770 Or, visit our website at www.stryker.com... -
Page 9: Features
1B, page Flow indicator Indicates no flow. Turns off heater if pump is tipped. Three setpoints on the TP600 series. Warm/Cool Delivery Four temperature setpoints on the TP700 series. Therapy Cycles (TP700 Choose from 20-minute, 30-minute, or Continuous cycles. -
Page 10: Keypad Features Tp600 Series
Features KEYPAD FEATURES TP600 SERIES Figure 3: TP600 Series Keypad Indicator/ Warning Light See the Troubleshooting section on page Water Flow Check hoses and clamps for kinks or occlusions. Water Level Check water level. Press the button at the bottom of the setpoint indicator to Setpoints toggle through the three setpoints. -
Page 11: Keypad Features Tp700 Series
Features KEYPAD FEATURES TP700 SERIES Figure 4: TP700 Series Keypad Indicator/ Warning Light See the Troubleshooting section on page Water Flow Check hoses or clamps for kinks or occlusions. Water Level Check water level. Setpoints Press the button at the bottom of the setpoint indicator to toggle through the four setpoints. -
Page 12: Keypad Features Tp702 Series
Features KEYPAD FEATURES TP702 SERIES Figure 5: TP702 Keypad Indicator/ Warning Light See the Troubleshooting section on page Water Flow Check hoses or clamps for kinks or occlusions. Water Level Check water level. Setpoints Press the button at the bottom of the setpoint indicator to toggle through the four setpoints. -
Page 13: Specifications
Specifications 120V Models 230V Models Electrical Classification Class I equipment with Type BF applied part suitable for continuous operation. Not classified for protection against ingress of liquid. Not classified for use in the presence of flammable anesthetics. Size (approx.) 11.5” x 8” x 8” 29.2cm x 20.3cm x 20.3cm Weight 6.5 lbs (2.9 kg) when empty... -
Page 14: Operating Instructions
Operating Instructions CLIK-TITE CONNECTORS The TP600 & 700 Series T/Pump is supplied with Clik-Tite ® connectors. To connect and disconnect Clik-Tite ® connectors from hose to pad: Insert male fittings into female fittings with a twisting motion (Figures 6A and 6B). -
Page 15: Quick Disconnects
Operating Instructions QUICK DISCONNECTS To connect and disconnect quick disconnects to a pad: Push the male coupling onto the female coupling. When you hear an audible click, the connectors are joined (Figure 7A). To open or close the hose pinch clamps: • Open the clamp by pushing the serrated end (Figure 7B). -
Page 16: Start-Up Procedure
Operating Instructions START-UP PROCEDURE WARNING • Pump must be filled with water prior to operation. • To avoid the risk of shock, unplug the unit before filling the reservoir. Before filling the pump, attach a pad to the connector hose. Make sure that there are no kinks in the hose or pad. -
Page 17: Cleaning
Cleaning STORAGE / CLEANING Storage (Short term) Less than 1 day Close the hose clamps. Disconnect the pad. Connect ends of the connector hoses together, where applicable. Open the hose clamps. Leave water in the reservoir. Coil and fasten the hose using the tube set strap and wrap the power cord around the unit. Storage (Long term) Drain the pump. -
Page 18: Institutional (Hospital) Cleaning Instructions
• Phenolic Disinfectant or 10% bleach solution. Note: If water is contaminated or not changed for a month, please follow the internal cleaning procedure below. Prepare a germicidal solution according to the manufacturer’s instructions. Stryker, product catalog MTA33. Drain the pump. -
Page 19: Water Temperature Control
Water Temperature Control WATER TEMPERATURE CONTROL There are three devices that control the operation of the heater in the Stryker T/Pump: • The temperature is thermistor controlled (Figure 8, item 8). This temperature is selectable from the operator’s keypad (Figure 8, item 10). To prevent unauthorized temperature setting changes, a lockout key is available on the TP700 / TP702 “Professional”... -
Page 20: Theory Of Operation
Theory of Operation Item Description PC Board (Temperature Controller) Manifold Backup Limit Thermostat Pump Motor Tray Assembly Cartridge Heater Brass Manifold Block Return Hose Fitting Temperature Sensor Housing Front Assembly Ribbon to Front Keypad Figure 8: T/Pump Components 101176 REV E... -
Page 21: Functional Check
P/N 77926000) • Stop Watch • Mul•T•Pad • Test Probe, T/Pump P/N:100925000 • Current Leakage meter • Ohm Meter Note: To order a TPT9, Test Probe and Mul•T•Pad, contact your dealer or Stryker's Customer Service Department. NOTE: If the flow meter is T/Pad, size "12" or connected in reverse, the flow "22": Be sure pad meter will indicate no flow. - Page 22 If at any time the expected result can not be verified, press the On/Standby button to stop the test, then restart the procedure. If after a second attempt the expected result can not be verified, press the On/Standby button to stop the test, then unplug the T/Pump and call your dealer or Stryker’s Technical Service Department for assistance.
- Page 23 Functional Check BACKUP LIMIT THERMOSTAT TEST This test is used to insure the temperature at the pad stays below a safe level in an over temperature condition. Figure 10: Connection of Test Temperature Sensor Test Procedure: To perform this test you will need to separate the upper housing from the center tray assembly by removing 4 screws (reference #13 parts illustration (1) screw by power cord, (1) screw by hose strap and (2) screws in front corners to install the Test probe, as shown in figure 10).
- Page 24 Record the highest reading. Disconnect leakage meter setup. This completes the recommended functional test for the Stryker T/Pump. If the pump passes all the requirements of this section and the Functional Check and Safety Inspection Form, the pump should be considered operational and suitable for return to service.
- Page 25 Functional Check Inspection forms vary from hospital to hospital. The following sample form is intended as a guide so that the important parameters are recorded. T/Pump Functional Check and Safety Inspection Form Date:_______________ Model Number:___________________ Serial Number:___________________ Item Value Okay Action Action Needed?
-
Page 26: Disassembly / Reassembly
Disassembly / Reassembly RESERVOIR • Unplug the Unit. • Drain the Reservoir. • Remove the nine (9) screws which retain the Reservoir to the Tray assembly. • Lift the Tray assembly from the Reservoir and set aside. Note: Be careful to keep the Upper Housing with the tray. It can be lifted from the tray, but there are wires connecting the two parts. - Page 27 Disassembly / Reassembly HEATER ASSEMBLY Perform the Steps for Reservoir and Upper Front & Rear Housing disassembly. Remove the 2 wires from the Cartridge Heater. One goes to the PC-Board, the other goes to a neutral wiring connector. Remove the (2) brass fittings on the bottom of the Tray assembly which holds the brass manifold block to the tray. To assemble, reverse the disassembly steps.
-
Page 28: Troubleshooting
Troubleshooting Problem Possible Cause Remedy Insert the plug fully into the properly T/Pump will NOT Turn ON. The electrical cord is NOT plugged into a properly grounded Hospital Grade grounded Hospital Grade receptacle. receptacle. Visually check the power cord for any Damaged cord or plug. - Page 29 Troubleshooting Problem Possible Cause Remedy Unit detected a Flow warning for more Reference “Flow indicator light is ON” Flow indicator and Standby indicator are ON with than 5 minutes, thus goes to Standby. (see below). T/Pump NOT pumping. Correct the problem, and press the On/ Standby to put the unit back into Run mode.
- Page 30 Troubleshooting Problem Possible Cause Remedy Reservoir is EMPTY. Refill with room temperature water to T/Pump will NOT Heat. proper level. Reference “Flow indicator light is ON” Flow is BLOCKED. above. Therapy Cycle is OFF. Wait for Therapy Cycle ON. Check if the Set Point is set too low. Heater is NOT receiving Power, or is defective.
-
Page 31: Troubleshooting
Troubleshooting Figure 12: Wiring Diagram 101176 REV E... -
Page 32: Parts Illustration
Parts Illustration Figure 13: Parts Illustration for Kits 101176 REV E... -
Page 33: Parts Illustration
Parts Illustration 43 44 Figure 14: Parts Illustration Continued 101176 REV E... -
Page 34: Replacement Parts List
Replacement Parts List Item Description 100822002 KIT: Upper front & Rear Housing. Includes both Front & Rear plastic housing, Label, Membrane Panel (TP650(c)). 100822001 KIT: Upper front & Rear Housing. Includes both Front & Rear plastic housing, Label, Membrane Panel (TP700(c)). - Page 35 Replacement Parts List 100129000 Tray Assembly (TP650(c), TP700(c) ) Tray Assembly ( TP702 ) 100129001 Impeller/Magnet Assembly 101157000 100132000 Impeller Housing Bottom 100133000 Impeller Housing Top 100134000 Pin, Impeller 100139000 Housing, Front Assembly 100152000 O-Ring, Reservoir Motor/Plate Assembly (TP650(c), TP700(c) ) 100261000 Motor/Plate Assembly (TP702 ) 100261001...
-
Page 36: Warranty
Except for such warranty, Stryker disclaims all other expressed and/or implied warranties including, but not limited to, the implied warranties of merchantability and of fitness for a particular purpose.
