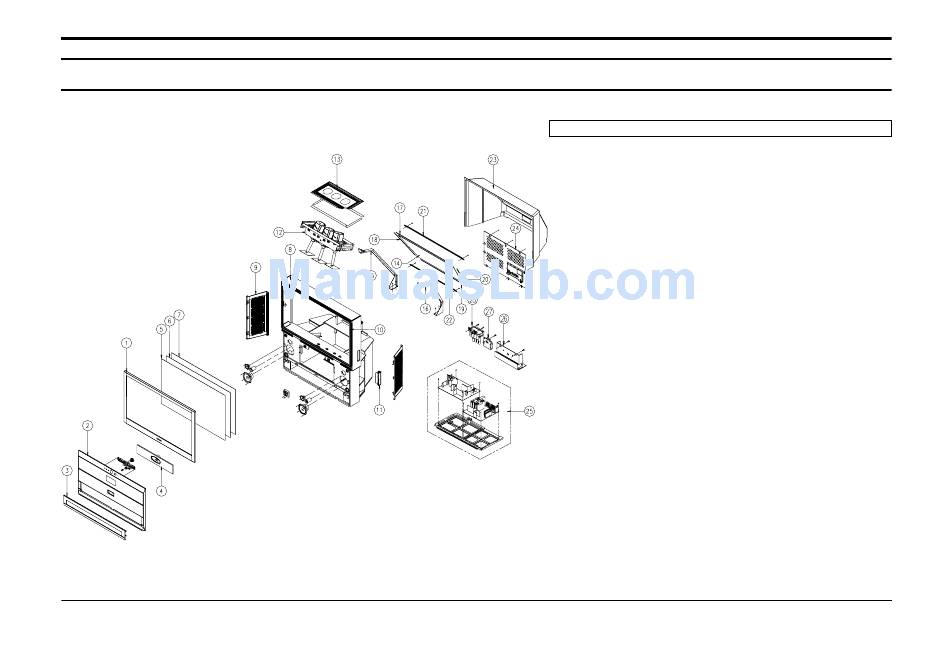

6. Exploded View & Parts List
6-1 ST55W3PCX/XAX
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
Samsung Electronics
No Code No Description;Specification
1 AA64-02059S CABINET FRONT-MASK;55W3,HIPS,HB,G4309,SV
2 AA91-00842Q ASSY-FRONT BOT;DP,BP64-00260B,55W3,SVM11
3 AA91-00774L ASSY-DOOR RACK;DP,AA64-02066L,SVM1132,HI
4 AA61-00859B PLATE-CENTER;W3,WOOD,T12,MDF
5 AA67-00132A SUN SCREEN-AG;55W,-,T=82%,1251*712*2,-,-
6 AA67-00124B SCREEN-FRESNEL;55W,T2,1251*712
7 AA67-00200A SCREEN-TINT;55W,1249*710,T=0.73,P=0.52
8 BP96-00106E ASSY MISC P-CABINET WOOD;55W3,WOOD,XAC
9 AA64-02065B CABINET-BACK,SIDE;47.55W3,HIPS HB,BLK,DO
10 BP61-00275B HOLDER-SCREEN TB;ABS HB,W3,L1282,BLK,CAN
11 AA91-00762R ASSY-JACK SIDE;W3,SVM1132,P55A,XAC
12 BP91-00491A ASSY PRT;HCM5525WX/XAA,P55A
13 AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE V0(9
14 AA67-00206A MIRROR-FRONT;55W9,FSM,1027*799*540
15 BP61-00032A BRACKET-F/MIRROR(L);DP,55W3,61-01091A
16 BP61-00031A BRACKET-F/MIRROR(R);DP,55W3,61-01090A
17 AA63-00021L SPACER-MIRROR;TOP,50J6,PVC,BLK,HB L1020
18 AA63-00021K SPACER-MIRROR;50J6,PVC,BLK,HB L500
19 AA63-00021M SPACER-MIRROR,BOT;50J6,PVC,B,L799,BLK
20 AA63-00021K SPACER-MIRROR;50J6,PVC,BLK,HB L500
21 BP61-00033A BRACKET-MIRROR(TOP);DP,553W,61-01092A
22 BP61-00034A BRACKET-MIRROR(BOT);DP,553W,61-01093A
23 BP64-00033A CABINET-BACK,TOP;DP,55W3,BP64-00048A,92K
24 AA64-02266B CABINET-BACK,BOT;PJTV,HIPS,HB,BLK,P55A
25 BP91-00929A ASSY CHASSIS;SP55W3PC,P55A,KAWA
26 BP94-00155A ASSY PCB MISC-CG-AMP;DP,HCM4215W3S/XAA,P
27 BP94-00239A ASSY PCB MISC-DY-JACK;DP,HCM4215W3S/XAA,
28 AA26-00101A TRANS FBT;FWZ50A001E,-,-,-,-,-,-,-,-,-,-
Exploded View& Part List
Q'ty Remark S.N.A
1 CFM
1 CF/BOT
1 A/DOOR
1 PLATE
1 SUN/SCRE
1 S/FRES
1 S/TINT
1 A/CW
2 C/BSIDE
2 H/SCREENTB
1 A/JACK
1 A/PRT
1 SCDUST
1 M/FRONT
1 BRA/ML
1 BRA/MR
1 S/MIRRT
1 S/MIRROR
1 S/MIRRB
1 S/MIRROR
1 BRA/MT
1 BRA/MB
1 CB/TOP
1 C/BBOT
1 A/CHASS
1 A/CGAMP
1 A/DYJACK
1 D/B
