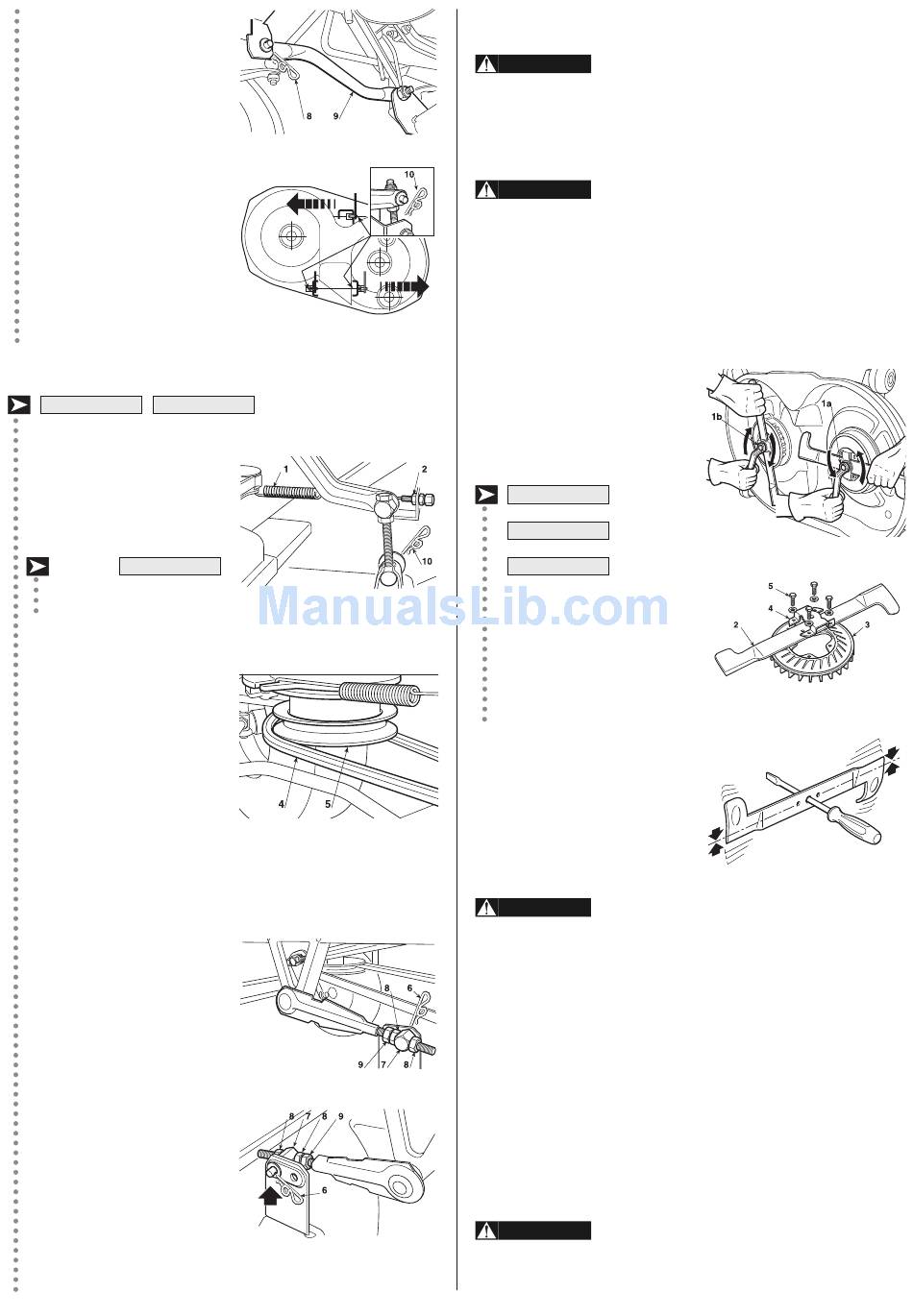

Release the three cotter pins
(10) holding the pins onto the
lifting lever, being careful not to
touch the nuts or locknuts in or-
der to keep them parallel for as-
sembly.
Having checked that there is
nothing in the way, the deck can
be removed, taking it out to-
wards the left so that all the pins
come out of their positions.
When assembling, perform the
operations described above in
reverse while making sure that
the front terminal of the collec-
tor channel properly fits into the
exit of the cutting deck.
HF24••◊•• HF26••◊••
Put the cutting height adjust-
ment lever into the notch at po-
sition «1».
HF24••◊••
Only for
release the spring (1) of the
blade engagement.
Loosen the engagement cable
register (2) and extract it from
the seat.
Free the blades belt (4) from
the clutch pulley (5).
Remove the two cotter pins (6) from the two front connecting rod
pins (7), without loosening or changing the position of the nuts (8)
and locknuts (9).
Remove the two cotter pins (10)
of the rear pins.
After checking that there are no
obstructions, remove the deck
in such a way that all the pins
come out of their housings.
When assembling, ensure that
the two rear holes of the corner
joints are used for fixing the
pins (7). Perform the operations
described above in reverse
while making sure that the front
terminal of the collector channel
properly fits onto the exit of the
cutting deck.
:
b) Dismantling, sharpening and balancing blades
WARNING!
All operations on the blades (dismantling,
sharpening, balancing, remounting and/or replacing) require
a certain familiarity and special tools. For safety reasons, go
to a specialized centre if you do not have the right tools or ex-
perience.
WARNING!
Wear heavy gloves when handling the bla -
des.
To remove a blade, hold it firmly and undo the central bolt (1a - 1b)
(use 15 mm wrench) in the direction indicated by the arrow for
each blade, noting that one of the fixing bolts has a right-hand
thread and the other one has a left-hand thread.
1a = screw with right thread
(loosen anti-clockwise)
1b = screw with left thread
(loosen clockwise)
HF2315HM•
HF2417◊••
HF2620◊••
The blade (2) is attached to the
fan (3) by a bracket (4) and four
screws with washers (5).
Use a 10 mm key to loosen the
four screws (5) and free the
blade (2) from its bracket (4).
Sharpen the two cutting edges us-
ing a medium grade grinding
wheel and check the balance by
holding the blade up with a screw
driver inserted in the central hole.
WARNING!
Damaged or bent blades must always be re-
placed; never try to repair them! ALWAYS USE MANUFAC-
TURER'S GENUINE BLADES!
Only the following pairs of blades can be used on this machine:
HF 2315 SB: 2b 82004354/0 – 82004353/0
HF 2315 HM: 2b 82004345/1 – 82004344/1
HF 2417: 2b 82004341/1 – 82004340/1
HF 2620: 2b 82004343/0 – 82004342/0
WARNING!
The blades (2) and fans (3) differ and are
contra-rotating. When installing them, make sure that they are
correctly positioned.
2a
2a
2a
2a
