Page 1: User Manual

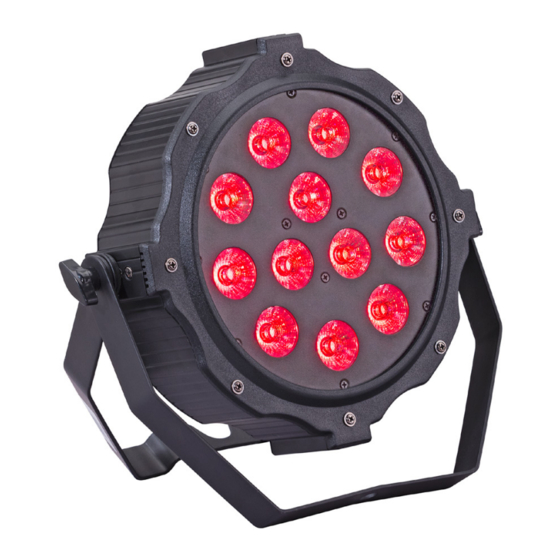

QUARTETTO SeRIES RGBW 4in1 SLIM PAR USER MANUAL Please read this manual carefully and properly take care of it... - Page 2 ENGLISH Dear customer, First of all thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy all possible needs of musical instrument and professional audio users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible improvements to introduce in the next future.
-
Page 3: Table Of Contents
ENGLISH Quartetto Series User manual TABLE OF CONTENTS 1. INTRODUCTION ......................7 1.1. Accessories ................................7 2. OVERVIEW ........................7 3. PRODUCT SPECIFICATION ..................8 4. MAINS CONNECTIONS .....................8 5. DMX CONNECTION ....................8 5.1. DMX Terminator ..............................10 5.2. 3-Pin vs 5-Pin DMX cables ..........................10 6. - Page 4 ENGLISH Quartetto Series User manual IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating con- ditions, which may be sufficient to constitute the risk of electric shock or death.
- Page 5 ENGLISH Quartetto Series User manual TAKING CARE OF YOUR PRODUCT f Read these instructions f Keep these instructions f Heed all warning f Follow all instructions Water / Moisture The apparatus should be protected from moisture and rain and can not be used near water;...
- Page 6 ENGLISH Quartetto Series User manual 8) Power Supply In case of external power supply, the apparatus should be connected to the power sup- ply only of the type as marked on the apparatus or described in the manual. Failure to do could result in damage to the product and possibly the user.
-
Page 7: Introduction
1.1. Accessories SOUNDSATION can supply a wide range of quality accessories that you can use with your SPIRE Series moving head, like Cables, Splitters, DMX controllers, and a wide range of other fixtures. All products in our catalogue has been long tested with this device, so we recommend you to use Genuine SOUNDSATION Accessories and Parts. -
Page 8: Product Specification
ENGLISH Quartetto Series User manual according to the internal temperature and allows them to be used even in situations where low noise is required. The advanced dimmer system provides various adjustment curves to fit the device to different requirements. 3. PRODUCT SPECIFICATION f 12x10W LED Source( 4 IN 1) f 25°... - Page 9 ENGLISH Quartetto Series User manual DMX Termonator DMX use of 3-Pin XLR Connectors INPUT OUTPUT 3-Pin XLR Unit 1 Unit 2 Last Unit Pin 1: GND Pin 2: DMX - Pin 3: DMX + DMX 512 Connect fixtures using shielded 2-conductor twisted pair cable with 3-pin XLR male to female connectors.
-
Page 10: Dmx Terminator
ENGLISH Quartetto Series User manual 5.1. DMX Terminator DMX is a resilient communication protocol, however errors still occasionally occur. In order to prevent electrical noise from disturbing and corrupting the DMX control signals, a good habit is to connect DMX output of last fixture in the chain to a DMX terminator, especially over long signal cable runs. -
Page 11: Connections Panel
ENGLISH Quartetto Series User manual 6. CONNECTIONS PANEL DMX INPUT 3 PINS 2. DMX OUTPUT 3 PINS 3. POWER OUTPUT 4. POWER INPUT 7. REAR CONTROL PANEL LED WASH LIGHT MENU DOWN ENTER Menu Button This button allows to scroll all the device’s functions. 2) UP Button Using this button, it is possible to increase the function’s value 3) DOWN Button... -
Page 12: Function Chart
ENGLISH Quartetto Series User manual 8. FUNCTION CHART FUNCTION N° DESCRIPTION NAME DMX 11 channel control(need connecting controller) DMX 6 channel control(need connecting controller) r000 to r255: RED, from dark to bright G000 to G255: GREEN, from dark to bright b000 to b255: BLUE, from dark to bright n000 to n255: WHITE, from dark to bright pr01 to pr25: 25 kinds of built in colors:... -
Page 13: Channel Charts (11 Ch / 6 Ch)
ENGLISH Quartetto Series User manual 9. CHANNEL CHARTS (11 CH / 6 CH) FUNCTION 11CH DIMMER - 0-255: R G B W linear adjustment, from dark to bright R Dimmer - 0-255: RED linear adjustment, from dark to bright G Dimmer - 0-255: GREEN linear adjustment, from dark to bright B Dimmer - 0-255: BLUE linear adjustment, from dark to bright W Dimmer - 0-255: WHITE linear adjustment, from dark to bright STROBE: 0-5: no function;... -
Page 14: Dimmer Curves
ENGLISH Quartetto Series User manual FUNCTION DIMMER - 0-255: R G B W linear adjustment, from dark to bright R Dimmer - 0-255: RED linear adjustment, from dark to bright G Dimmer - 0-255: GREEN linear adjustment, from dark to bright B Dimmer - 0-255: BLUE linear adjustment, from dark to bright W Dimmer - 0-255: WHITE linear adjustment, from dark to bright Strobe: Color strobe speed ,from slow to fast... -
Page 15: Troubleshooting
ENGLISH Quartetto Series User manual 11. TROUBLESHOOTING PROBLEM Probable Cause(s) Remedy No power to fixture Check power cables No response from fixture when Primary fuse blown Replace fuse power is applies Secondary fuse blown Replace fuse Controller not connected Connect controller Incorrect addressing of Check address setting on the fixtures... -
Page 16: Specifications
ENGLISH Quartetto Series User manual 12. SPECIFICATIONS QUARTETTO 1012 QUARTETTO 1018 Voltage 110V ~ 240V 50-60HZ Power consumption 150W 180W Led source 12 x 10W (4 IN 1) 18 x 10W (4 IN 1) Beam Angle 25°(lens) Strobe 0~20Hz Dimmer :... -
Page 17: Warranty And Service
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of SOUNDSATION. -
Page 18: Warning
ENGLISH Quartetto Series User manual 14. W ARNING PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only This symbol indicates that this product is not to be disposed of with your household waste, ac- cording to the WEEE Directive (2202/96/EC) and your national law. This product should be handed over to a designated collection point, e.g., on an authorized one- for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (WEEE). - Page 19 This product is imported in EU by FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy...
- Page 20 www.soundsa tionmusic.com Ver 1.0 - Apr. 2018...
