Gps Status - Raymarine Raychart 320 Owner's Handbook Manual

2-2
The GPS Status screen is displayed until a satellite fix has been acquired.
When satellite acquisition is complete, the READY FOR NAVIGATION
pop-up box displays for two seconds.
To proceed whilst satellite acquisition continues, press the CLEAR key;
the Chart Screen is displayed.
If this is the first time that the Chartplotter has been used, and no chart
card is installed, the display shows the world map with the default soft
keys. Otherwise, the display shows the selected chart area and any data
that were displayed when the display unit was last used. Figure 2-3
shows a typical chartplotter display.
CAUTION

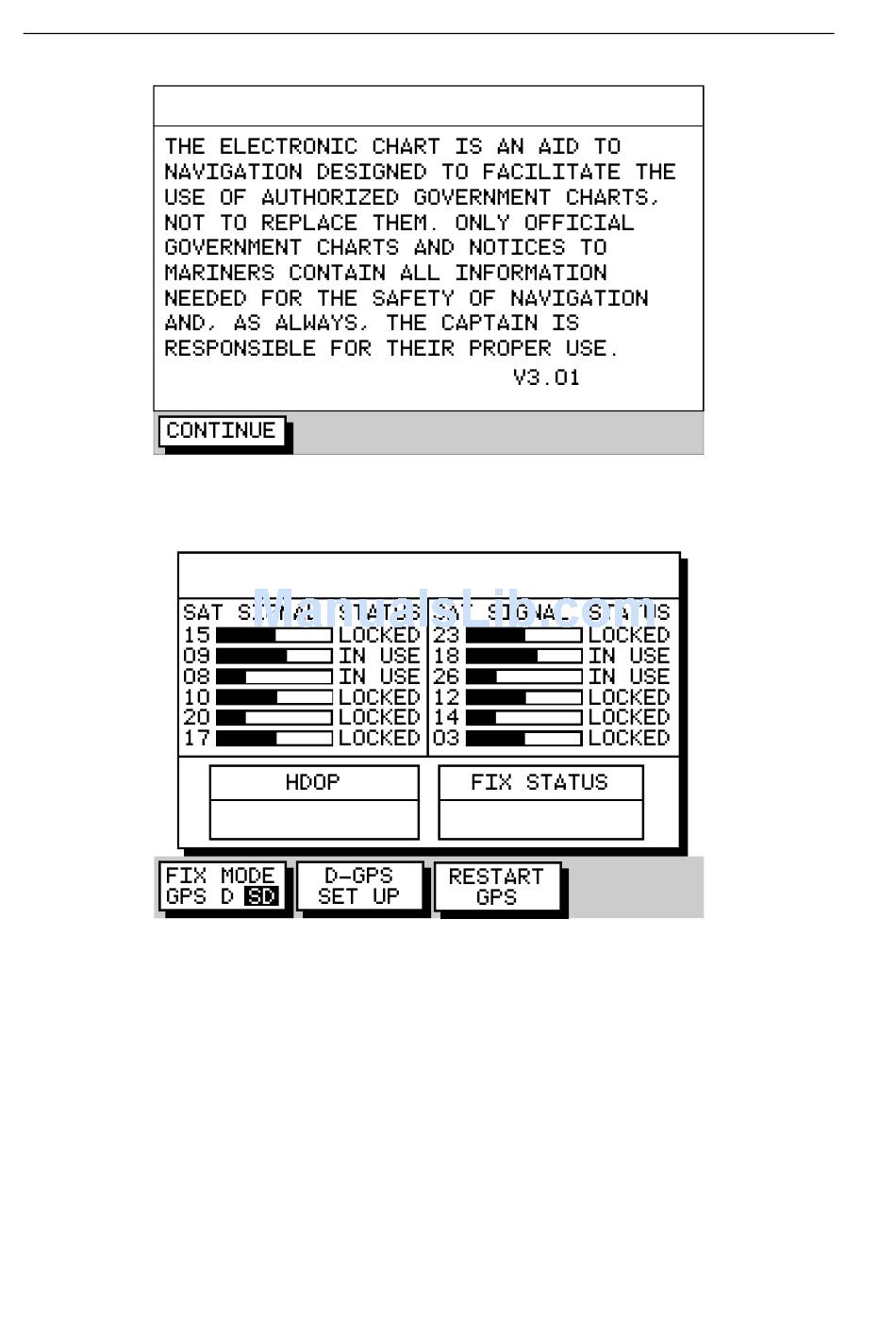

Figure 2-1: Power-on Caution

GPS STATUS

1.0
Figure 2-2: GPS Status Screen
Raychart 320 Chartplotter
D-FIX
D4900_2
D5551_1
