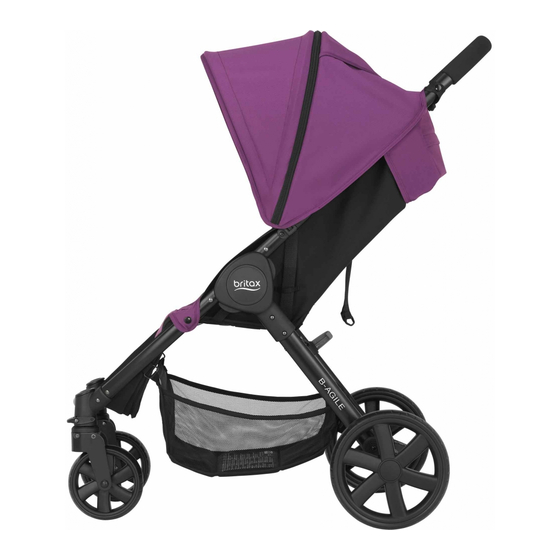

- Page 1 AGILE 4 TRAVEL SYSTEM STROLLER Suitable for use with the Steelcraft Baby Capsule or the Safe n Sound Unity Baby Capsule (Baby Capsules sold separately) IMPORTANT: KEEP THIS BOOKLET IN A SAFE PLACE FOR FUTURE REFERENCE. www.britax.com.au Series SH908...
- Page 2 IMPORTANT NOTES IMPORTANT NOTES: ALWAYS FOLLOW THE MANUFACTURERS INSTRUCTIONS. READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE OF THIS STROLLER. THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS ESSENTIAL. • USE GREAT CARE WHEN USING THE STROLLER ON STAIRS, ESCALATORS, TRAVELATORS OR OTHER MOVING SURFACES.
- Page 3 • MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF YOU ADJUST THE STROLLER. • DO NOT USE ANY ACCESSORIES OTHER THAN THOSE APPROVED FOR USE WITH THIS STROLLER BY BRITAX. • IT IS UNSAFE TO USE ACCESSORIES NOT APPROVED FOR USE WITH THIS STROLLER.
-
Page 4: Manual Handling Techniques
MANUAL HANDLING TECHNIQUES The SMART lifting technique This technique can be used to pick up small light loads from low levels. Size up the Load • Assess the load (size, shape and weight). • Assess whether the load needs to be moved; •... -
Page 5: Parts List
PARTS LIST A 1 x Stroller Frame, B 1 x Canopy Seats & Basket C 2 x Rear Wheels D 2 x Front wheels E 2 x Car Seat Receivers F 1 x set of Shoulder pads for Steelcraft Baby Capsule... - Page 6 PARTS LIST G 1 x Rain cover...
- Page 7 STROLLER LEGEND...
- Page 8 STROLLER LEGEND 1. Canopy 2. 4 bar waist harness slider 3. Waist harness straps 4. Shoulder harness straps 5. 3 bar shoulder harness slider 6. Waist strap buckle tongues 7. Shoulder strap 8. Buckle 9. Crotch harness strap 10. Inner seat 11.
-
Page 9: Stroller Assembly
STROLLER ASSEMBLY OPENING THE STROLLER FRAME IMPORTANT NOTES: PLEASE REFER TO PAGE 4 FOR SMART LIFTING TECHNIQUES. • RELEASE THE STORAGE LATCH WITH DUE CARE AND OPEN THE FRAME. • WHEN OPENING THE STROLLER, BE AWARE OF THE DANGER OF BEING INJURED BY MOVING PARTS AND LOCKING DEVICES DURING TH PROCESS. - Page 10 STROLLER ASSEMBLY OPENING THE STROLLER FRAME B Open the frame as shown by the arrow until you hear a ‘click’ which indicates the frame is fully opened and locked. ATTACHING THE FRONT AND REAR WHEELS A To attach the front swivel wheel assembly, insert the swivel wheel assembly and push it into the wheel moulding until you hear a ‘click which indicates the wheel is locked in.
-
Page 11: Important Note
STROLLER ASSEMBLY ATTACHING THE CANOPY IMPORTANT NOTE: The sun is very strong. DO NOT LEAVE YOUR CHILD EXPOSED TO THE SUN. The canopy or hood on this product will not give your child total protection from the harmful rays of the sun. A To attach the canopy, insert the canopy mouldings into the canopy frame sockets until they connect together. - Page 12 STROLLER ASSEMBLY C Fasten the hook strip on the inside bottom edge of each canopy back flap to the loop strip along the top edge of the back rest.
- Page 13 STROLLER ASSEMBLY ATTACHING THE CANOPY D Fasten the hook square on the inside of the canopy back flap to the loop strip on the side of the stroller. E Fasten the hook strip on the inside edge of the canopy to the loop strip on the side of the stroller.
- Page 14 STROLLER ASSEMBLY ATTACHING THE RAIN COVER IMPORTANT NOTE: ENSURE THE RAIN COVER IS KEPT AWAY FROM THE CHILD’S FACE. REFIT THE RAIN COVER IF REQUIRED TO ENSURE YOUR CHILD IS SAFE. A Pull the rain cover over extended canopy and push the back flap of rain cover through the handle opening.
-
Page 15: Stroller Operation
STROLLER OPERATION USING THE BRAKES WARNING ALWAYS APPLY THE BRAKES WHEN THE STROLLER IS STATIONARY. A The red brake lever is located on the right hand side of the stroller beside the rear wheel. B To lock the rear wheels, press the red brake lever down until you hear a ‘click’... - Page 16 STROLLER OPERATION USING THE BRAKES...
- Page 17 STROLLER OPERATION USING THE SWIVEL WHEELS PLEASE NOTE: Always lock the swivel wheels when using the stroller on rough surfaces as this will minimise wheel wobble. The swivel wheels should only be locked when the wheels are in the trailing position (wheels under frame). A To lock the front wheels into the fixed position, press the black swivel lock down until you hear a ‘click’...
- Page 18 STROLLER OPERATION ADJUSTING THE BACKREST WARNINGS: • THE UPRIGHT POSITIONS ARE NOT SUITABLE FOR USE WITH CHILDREN LESS THAN 6 MONTHS OLD. • THE LOWEST RECLINE POSITION SHOULD BE USED TO TRANSPORT BABIES. THE BACKREST CAN BE ADJUSTED TO A MORE UPRIGHT POSITION AS THE CHILD GROWS OLDER AND IS ABLE TO SUPPORT ITS HEAD WITHOUT ASSISTANCE.
- Page 19 STROLLER OPERATION ADJUSTING THE BACKREST B To raise the backrest, hold the plastic ring at the end of each adjuster strap and pull the straps apart until you reach your desired position. C To lower the backrest, slide the release lever down on the recline adjuster and pull down on the recline adjuster and lower the backrest to the desired position.
- Page 20 STROLLER OPERATION USING THE HARNESS WARNING: USE THE HARNESS AT ALL TIMES. • ENSURE YOUR CHILD IS SECURED WITH A CORRECTLY ADJUSTED HARNESS. • THE ADJUSTED HARNESS SHOULD CLOSELY FIT THE CHILD. • NEVER LEAVE THE HARNESS BUCKLED WHEN NOT FITTED TO A CHILD IN THE STROLLER, BECAUSE THE HARNESS CAN FORM LOOPS WHICH MAY POSE A STRANGULATION HAZARD.
- Page 21 STROLLER OPERATION USING THE HARNESS A Always apply the brakes. Place child in seat. Slip one shoulder strap over each shoulder. Position crotch strap between legs. Push the buckle tongues (A) on waist straps through the tongue guides (B) on shoulder straps.
- Page 22 STROLLER OPERATION USING THE HARNESS C Press in and hold the centre crotch buckle button and insert the waist buckle tongues into the crotch buckle assembly. IMPORTANT: Pull on each waist buckle tongue to make sure they are locked into the crotch buckle assembly. If not, repeat above procedure.
- Page 23 STROLLER OPERATION USING THE HARNESS E Tighten or loosen the waist straps, hold and lift the 4 bar harness adjuster and pull the harness strap to adjust to the desired fit. The waist strap needs to fit firmly around the child. 4 bar harness adjuster...
- Page 24 STROLLER OPERATION USING THE HARNESS G The stroller seat has 3 sets of harness slots at different heights to accommodate the child. The shoulder straps must be positioned near the child’s shoulders. To change the shoulder harness height, push the shoulder harness tongue out of the current harness slot and through the back of the seat and then pull the shoulder harness buckle tongue through the desired slot.
- Page 25 STROLLER OPERATION USING THE TETHER STRAP WARNINGS: USE THE TETHER STRAP TO STOP THE STROLLER ROLLING AWAY. • THE STROLLER IS DESIGNED FOR USE ON FLAT OR GENTLY SLOPING SURFACES, AND MAY BE UNSTABLE ON HIGHER SLOPING AND UNEVEN SURFACES AND USERS SHOULD BE AWARE OF THE POSSIBILITY OF THE STROLLER ROLLING AWAY OR TIPPING OVER.
- Page 26 STROLLER OPERATION USING THE STROLLER PLEASE REFER TO PAGE 4 FOR LIFTING TECHNIQUES. • Always ensure you bend your knees where appropriate and take due care when lifting the frame. • With your hand through the wrist tether strap loop, push the stroller holding the handle.
-
Page 27: Important Notes
STROLLER OPERATION FOLDING THE STROLLER IMPORTANT NOTES: PLEASE REFER TO PAGE 4 FOR LIFTING TECHNIQUES. • REMOVE THE CHILD FROM THE STROLLER BEFORE COMMENCING ANY FOLDING OPERATION. • FOLD THE STROLLER SLOWLY AND BE CAREFUL WHERE YOU PLACE YOUR HANDS. •... - Page 28 STROLLER OPERATION FOLDING THE STROLLER F Press and hold in the RED Sure Lock release button (1) located on the right hand side of the stroller. G Move to the front of the stroller and with both hands pull up on the folding strap (2) as shown by the arrow.
- Page 29 STROLLER OPERATION LIFTING AND CARRYING THE STROLLER...
- Page 30 STROLLER OPERATION REMOVING THE FRONT AND REAR WHEELS A To remove the front swivel wheel assembly, locate and press in the silver button on top of the wheel moulding. B To remove the rear wheels, pull the metal latch downwards on the underneath of the brake moulding to release the wheel, and then pull the wheel off.
- Page 31 STROLLER OPERATION REMOVING THE CANOPIES A1 Unfasten the hook strip on the inside edge of the canopy from the loop strip on the side of the stroller. A2 Unfasten the hook square on the inside of the canopy back flap from the loop strip on the side of the stroller.
- Page 32 STROLLER OPERATION B1/2 C1 Locate the straps on the outer sides of each canopy and pull the snap fastener on each strap out of the snap fastener on the top of each outer handle tube. C2 To remove the canopies, press in the button on the canopy mouldings and pull out of the canopy frame sockets.
- Page 33 • IT IS UNSAFE TO USE ACCESSORIES NOT APPROVED FOR USE WITH THIS STROLLER. • DO NOT USE ANY ACCESSORIES OTHER THAN THOSE APPROVED FOR USE WITH THIS STROLLER BY BRITAX. • THE MAXIMUM WEIGHT OF THE CHILD USING THE STEELCRAFT BABY CAPSULE IS NOT TO EXCEED 9kg.
- Page 34 BABY CAPSULE IMPORTANT NOTES • THE SUN IS VERY STRONG. DO NOT LEAVE YOUR CHILD EXPOSED TO THE SUN. THE CANOPY OR HOOD ON THIS PRODUCT WILL NOT GIVE YOUR CHILD TOTAL PROTECTION FROM THE HARMFUL RAYS OF THE SUN. PLEASE NOTE: THE TRAY OR ARM BAR (IF SUPPLIED OR MAY BE SOLD SEPARATELY) MUST BE REMOVED.
- Page 35 STROLLER OPERATION ATTACHING THE STEELCRAFT BABY CAPSULE PLEASE NOTE: FIT RECEIVERS STANDING IN FRONT OF THE STROLLER. BABY SEAT RECEIVERS ARE MARKED LEFT AND RIGHT FOR CORRECT FITTING. A Stand in front of the stroller and pull the fabric back from the sides of the stroller to expose the stroller hinge.
- Page 36 STROLLER OPERATION ATTACHING THE STEELCRAFT BABY CAPSULE B Face the feet end of the Baby Capsule towards the stroller backrest. With the Infant Carrier handle in the upright position, locate the Infant Carrier handle mouldings over the receivers on either side. Notice the indicator is GREEN.
- Page 37 STROLLER OPERATION ATTACHING THE STEELCRAFT BABY CAPSULE D The Baby Capsule now needs to be locked securely into the receivers. Squeeze in and hold the latches on either side of the handle, rotate the handle backwards. The GREEN indicator will now turn to RED. Handle latch Indicator CAUTION...
- Page 38 STROLLER OPERATION ATTACHING THE STEELCRAFT BABY CAPSULE Indicator NOTE: Ensure the baby is secured in the Baby Capsule with the harness at all times. Refer to the Baby Capsule instructions regarding placing and securing your baby in the Baby Capsule. The Baby Capsule has been fitted with a hood when using the stroller.
- Page 39 STROLLER OPERATION REMOVING THE STEELCRAFT BABY CAPSULE A To remove the Baby Capsule, squeeze both handle latches in to release the locks. The indicator will now be RED. Handle latch Indicator CAUTION B Continue to rotate the handle forward until it returns to the upright position.
- Page 40 STROLLER OPERATION REMOVING THE STEELCRAFT BABY CAPSULE C Lift and remove the Baby Capsule away from the stroller. D To remove the receivers, press the red button in on the inside of the receiver and pull the receiver up. Receiver Red Button...
- Page 41 NOTES...
- Page 42 NOTES...
-
Page 43: Care And Maintenance
CARE AND MAINTENANCE • To prolong the life of your stroller keep it clean and do not leave it in the direct sunlight or in the car boot for extended periods of time. • Removable fabric covers and trims may be cleaned using warm water with a household soap or mild detergent. - Page 44 CUSTOMER SERVICE 1300 303 330 - Australia 0508 688 822 - New Zealand Due to our continuing program of development, Britax reserves the right to alter the specifications, color or design without any further notice. The Steelcraft trademark is the property of Britax Childcare Pty.Ltd - Australia.
