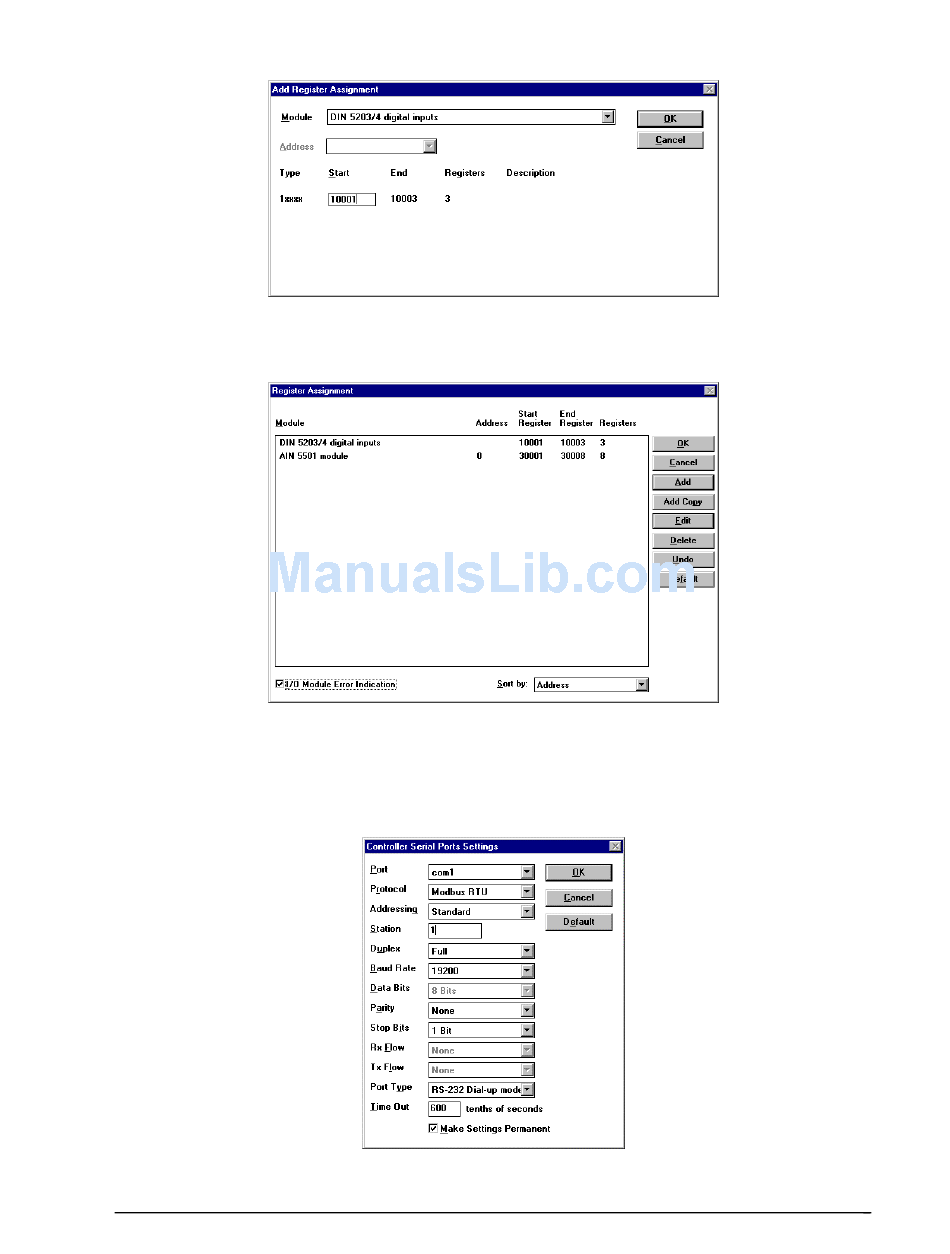

The following example is a completed Register Assignment for a TeleSAFE Micro 16 controller
with an on-board DIN 5203/4 digital inputs module and an AIN 5501 analog input module,
addressed as 0.
3.8

Configure Controller Serial Ports

Select Controller – Serial Ports and modify the settings for com1, if applicable.
The following example shows how com1 would be programmed to communicate via an external
dial-up modem.
