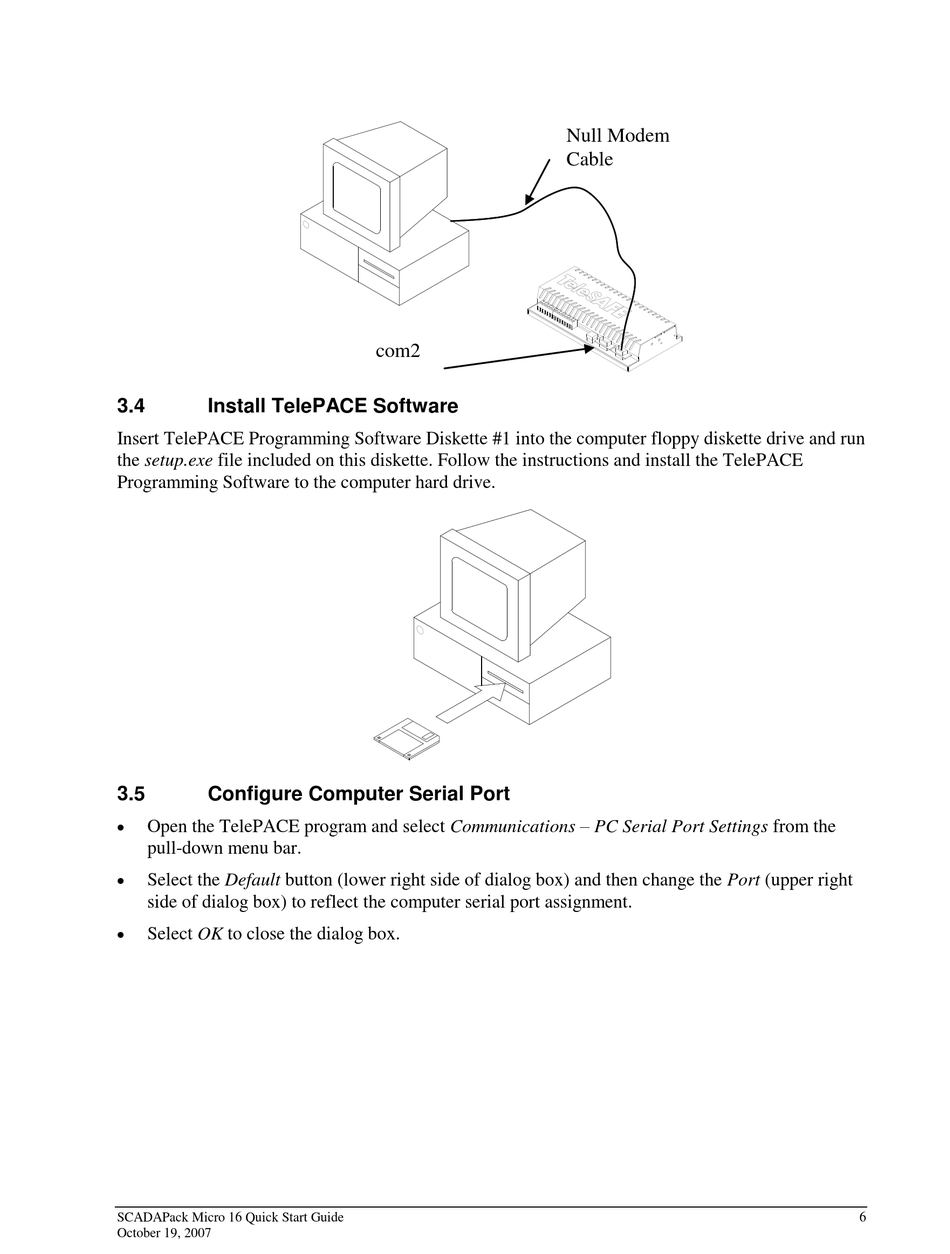

3.4

Install TelePACE Software

Insert TelePACE Programming Software Diskette #1 into the computer floppy diskette drive and run
the setup.exe file included on this diskette. Follow the instructions and install the TelePACE
Programming Software to the computer hard drive.
3.5

Configure Computer Serial Port

 Open the TelePACE program and select Communications – PC Serial Port Settings from the
pull-down menu bar.

Select the Default button (lower right side of dialog box) and then change the Port (upper right
side of dialog box) to reflect the computer serial port assignment.

Select OK to close the dialog box.
SCADAPack Micro 16 Quick Start Guide
October 19, 2007
com2
Null Modem
Cable
6
