3.6

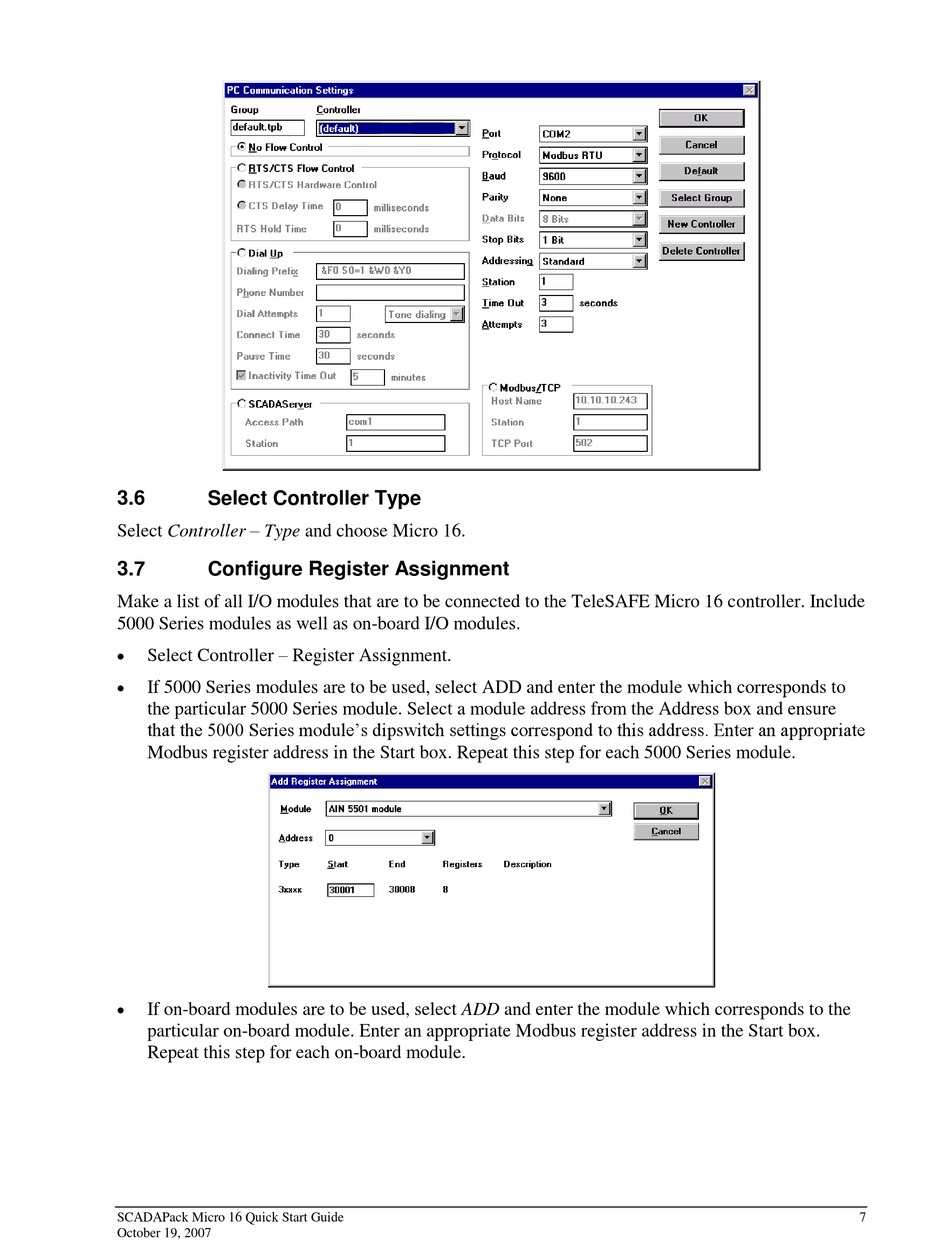

Select Controller Type

Select Controller – Type and choose Micro 16.
3.7

Configure Register Assignment

Make a list of all I/O modules that are to be connected to the TeleSAFE Micro 16 controller. Include
5000 Series modules as well as on-board I/O modules.
 Select Controller – Register Assignment.

If 5000 Series modules are to be used, select ADD and enter the module which corresponds to
the particular 5000 Series module. Select a module address from the Address box and ensure
that the 5000 Series module's dipswitch settings correspond to this address. Enter an appropriate
Modbus register address in the Start box. Repeat this step for each 5000 Series module.

If on-board modules are to be used, select ADD and enter the module which corresponds to the
particular on-board module. Enter an appropriate Modbus register address in the Start box.
Repeat this step for each on-board module.
