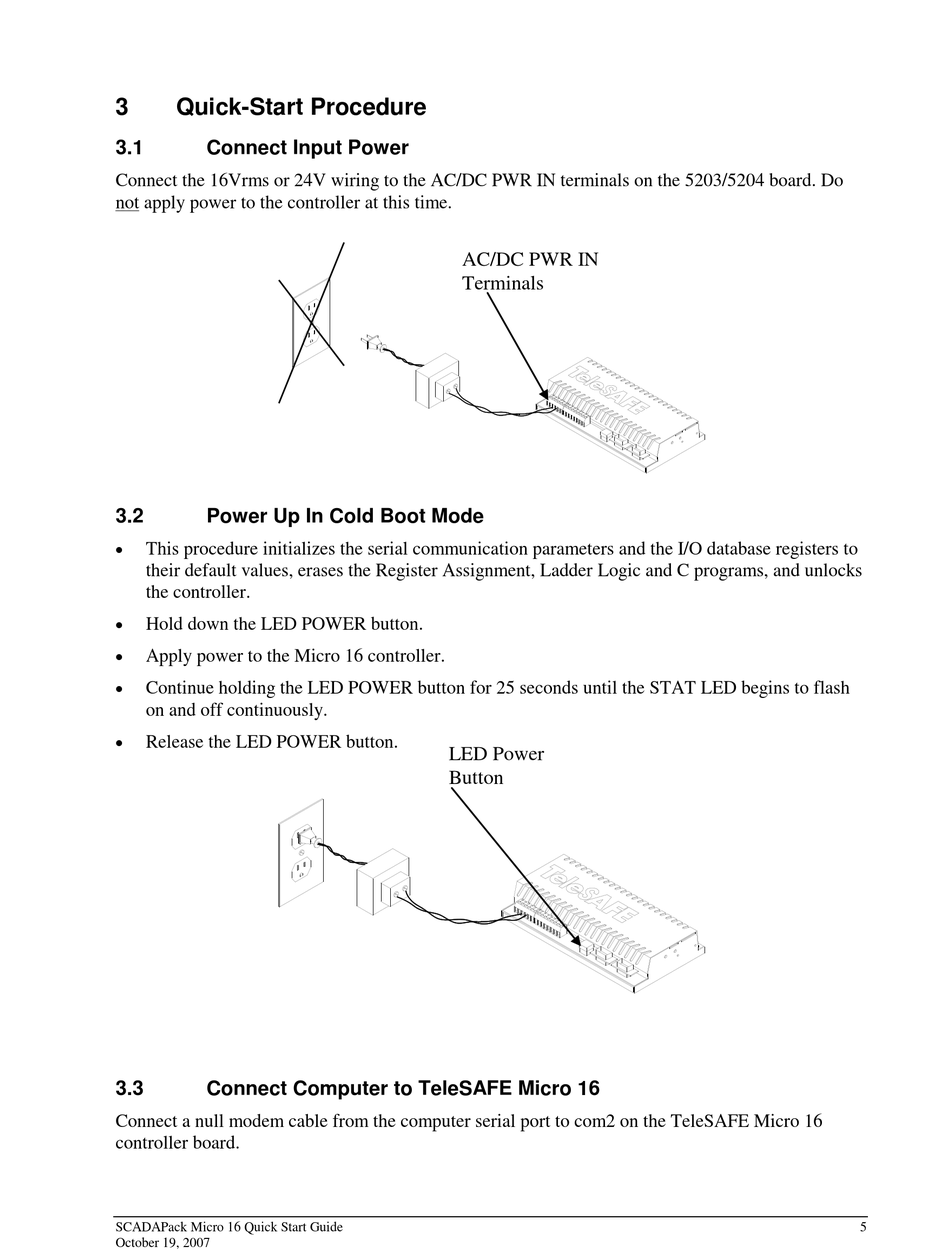

Quick-Start Procedure

3.1

Connect Input Power

Connect the 16Vrms or 24V wiring to the AC/DC PWR IN terminals on the 5203/5204 board. Do
not apply power to the controller at this time.
3.2

Power Up In Cold Boot Mode


This procedure initializes the serial communication parameters and the I/O database registers to
their default values, erases the Register Assignment, Ladder Logic and C programs, and unlocks
the controller.

Hold down the LED POWER button.

Apply power to the Micro 16 controller.

Continue holding the LED POWER button for 25 seconds until the STAT LED begins to flash
on and off continuously.

Release the LED POWER button.
3.3

Connect Computer to TeleSAFE Micro 16

Connect a null modem cable from the computer serial port to com2 on the TeleSAFE Micro 16
controller board.
