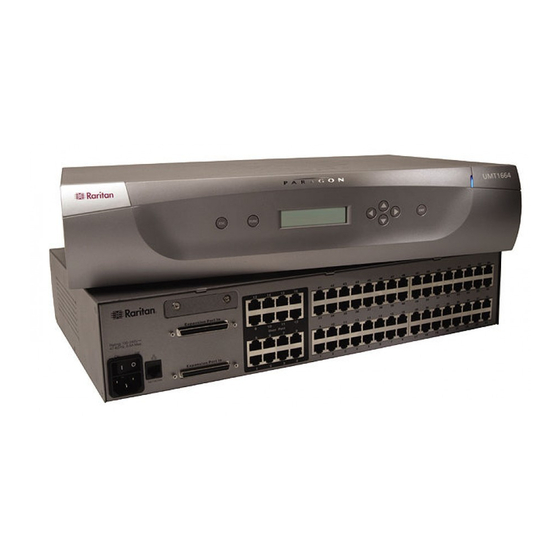

Summary of Contents for Raritan Paragon switch

  • Page 2 This page intentionally left blank...
  • Page 3 Copyright © 2002 Raritan Computer, Inc. UMTx-0C-E September 2002 Raritan Computer Inc. Raritan Computer Europe, B.V. 400 Cottontail Lane Eglantierbaan 16 Somerset, NJ 08873 2908 LV Capelle aan den IJssel The Netherlands Tel. 1-732-764-8886 Tel. 31-10-284-4053 Fax. 1-732-764-8887 Fax. 31-10-284-4049 E-mail: sales@raritan.com...
  • Page 4 This page intentionally left blank...

  • Page 5: Fcc Information

    , MasterConsole MXU2, MasterConsole II, MasterConsole SMX, ConsoleSwitch and their respective logos are registered trademarks of Raritan Computer, Inc. PS/2, RS/6000, and PC/AT are registered trademarks of International Business Machines Corporation. Sun is a registered trademark of Sun Microsystems. All other marks are the property of their respective owners.
  • Page 6 This page intentionally left blank...

  • Page 7: Table Of Contents

    ULTI NSTALLATION NSTALLING A ARAGON ONNECTING IERED ARITAN Connecting a Paragon Switch as a Second Tier or Third Tier Unit ________________ 20 UIDELINES FOR ARAGON ONNECTING ERIES Connecting a MasterConsole MX Connecting a MasterConsole MXU2 as a Tier ________________________________ 30...
  • Page 8 EFRESH ONFIGURATIONS 6: O HAPTER VERVIEW ARDWARE EQUIREMENTS _______________________________________________________ 73 OWNLOADING VERVIEW UST1 __________________________________________________ 73 ONNECTING A PERATING VERVIEW OFTWARE DITING ROFILES DITING EVICE ROFILES AVING A OPY OF THE PLOADING A ONFIGURATION OWNLOADING A ONFIGURATION PENING A AVED ONFIGURATION ____________________________________________________________ 79 ROUBLESHOOTING 7: P...

  • Page 9: Chapter 1: Introduction

    1: I HAPTER NTRODUCTION 1: I HAPTER NTRODUCTION Paragon Features and Advantages 2U design supports 16 users, 64 computers (model UMT1664) 1U design supports 8 users, 32 computers (model UMT8) 1U design supports 4 users, 42 computers (model UMT442) 1U design supports 2 users, 42 computers (model UMT242) 1U design supports 2 users, 42 computers (model UMT2161) Expands to 32 users with Raritan’s UKVMP2 or CIMPAC8 Expands to 64 users with Raritan’s HUBPAC8...

  • Page 10: Paragon System Components

    Please refer to “Specifications” on page 85 for a complete description of Computer Interface Modules (CIMs) Local user console Connections for User Console keyboard, monitor, and mouse RJ45 connection to Paragon Matrix Switch ’ ARAGON DMINISTRATOR Figure 1 Paragon Matrix Switching Unit...
  • Page 11 UST1s 8 User Consoles Figure 4 Example of Basic Paragon Configuration (UMT8) Each Paragon switch (UMT2161, UMT242, UMT442, UMT8, or UMT1664) ships with: Two 30 foot Category5e UTP test cables (Part # UCC030) Administrator’s Installation and Operation Guide Quick Setup and Installation Guide...

  • Page 12: Paragon Cable Information

    Paragon Cable Information Paragon will work with any Category 5e UTP, Category 6 UTP, and Category 7 UTP cable products. However, Raritan has extensively tested and recommends the following Category 5e UTP, Category 6 UTP, and Category 7 UTP cable products for optimal results: Category 5e UTP Cables: Category 6 UTP Cable: Category 7 UTP Cable:...
  • Page 13 1: I HAPTER NTRODUCTION Category 5e Unshielded Twisted Pair (UTP) Cable Mod Plug Requirements for use with Raritan Category 5e UTP Products T568A White/Green Green White/Orange Blue Cat 5e Cable White/Blue Orange White/Brown Brown Plug Positions Cat 5e Cable Figure 5 Cable Pin-out Requirements T568B Plug Positions...
  • Page 14 ’ ARAGON DMINISTRATOR NSTALLATION AND PERATION UIDE...

  • Page 15: Chapter 2: Installation

    2. Connect VT100 Terminator into top Expansion Port on back of the switch. 3. Connect one end of a Category 5e UTP cable to User Port # 1 on back of the Paragon switch. 4. Connect the other end of cable to RJ45 Cat5 Port on back of User Station (UST1).
  • Page 16 Administrative Setup: 1. At the Login Menu, displayed at the User Console attached to the UST1, type “admin” (all lowercase) in the User Name field and press <Enter>. 2. Type “raritan” (all lowercase) in the Password field and press <Enter>. The monitor displays an On-Screen User Interface (OSUI) Selection Menu with the connected computer displayed in green.

  • Page 17: Administrator User Name And Password Defaults

    2: I HAPTER NSTALLATION Administrator User Name and Password Defaults EFAULT DMINISTRATOR admin User Names: If user names have not been assigned, the default names are “user01” through “user07” for users, and “admin” for the administrator. User names are not case sensitive. Passwords: If a password is necessary, you will be prompted to enter one.
  • Page 18 The Paragon Communication Speed Indicator displays the communication speed between a User Station (UST1) and a Paragon Switch (UMT2161, UMT242, UMT442, UMT8, or UMT1664). Communication will be at low speed, indicated by the letter L, or at high speed, indicated by the letter H.
  • Page 19 NSTALLATION Function Keys: <F1>, <F2>, <F4>, and <F8> are used to switch among first-level menus. Pressing <F1> while OSUI is active invokes the Help Screen, which details all available options. Whenever the OSUI is invoked, the user console keyboard’s <Scroll Lock> LED indicator blinks repeatedly.

  • Page 20: Basic Installation

    Important: Power OFF all computers and Paragon components prior to installation. 1. Initialize Paragon Switch (UMT2161, UMT242, UMT442, UMT8, or UMT1664). Connect power cord to the Paragon Switch and power ON switch. Note: Step (b) applies to models UMT8 and UMT1664 only. When working with other units, please skip directly to step (c).
  • Page 21 UMT2161 directly to a keyboard, a monitor, and a mouse, please skip to step 3. 2. Connect User Station (UST1). Connect one end of a Category 5e UTP cable to User Port # 1 on the back of the switch. Connect the other end of cable to RJ45 Cat5 Port on back of UST1.
  • Page 22 3. Perform UST1 Administrative Setup. UST1 will establish communication with the Paragon Switch. A Login Menu appears on user console monitor. The <Scroll Lock> LED on the keyboard blinks to indicate Hot Key mode is operational, which enables keyboard’s communication with the Paragon OSUI for performing login, computer selection, and administrative functions.
  • Page 23 UTP cables (see “UTP Cabling FAQs” on page 93 for further information). 4. Repeat steps 2 and 3 for each UST1 to be connected to the Paragon Switch user ports. 5. Connect CIM / Computer. Connect CIM to server’s keyboard, video, and mouse ports (using part # APSAT for AT-style PCs if needed) and power ON computer.
  • Page 24 Refresh Configurations ….. Scrolling Messages Banner….. ScrlLock Use the < > or < > keys to highlight the Channel Configuration submenu and press <Enter> to open the menu. Channel Configuration UMT8 Switch HWII Page: Ch ID ---------- ------------------------------------------ NT4.0 Mail Wins95.Bob Wins98.Jack...
  • Page 25 2: I HAPTER NSTALLATION Use the < > or < > keys to highlight the Name field that corresponds with the Channel ID (Ch ID) where the CIM / Computer was just installed, then press <Enter> - the yellow highlight will turn light blue. Edit name and press <Enter>...

  • Page 26: Multi-Tier Installation

    KVM switches. When setting up two tiers, the base unit must be a Paragon switch and the second tier can be any of the Raritan KVM Switches listed below. In a three-tier configuration, both the base unit and the second tier must be Paragon Switches;...

  • Page 27: Installing A Paragon Switch

    NSTALLATION Installing a Paragon Switch Follow the Basic Installation steps starting on page 12 to set up the base Paragon Switch, making certain to reserve sequential channels on the Paragon Switch for cascading second-tier KVM or Paragon Switches. Please use the following guidelines for reserving sequential channels:...

  • Page 28: Connecting Tiered Raritan Kvm Switches To A Base Paragon Switch

    4. Use the < > and < > keys to highlight the Channel Configuration menu and press <Enter>. 5. Use the < > and < > or <Page Up> and <Page Down> keys to go to the Paragon switch tier path to be named and press <Enter> - the yellow highlight will turn blue.

  • Page 29: Guidelines For Paragon System Configuration

    2: I HAPTER NSTALLATION Guidelines for Paragon System Configuration 1. Only one user should attempt to modify/update the System Administration Menu at a time (this is especially important when changing the User Configuration and Channel Configuration options). 2. Z-Series chains should be added one at a time. The message banner should read that the DB has been completely updated before administrator adds a new Z-chain.

  • Page 30: Connecting Z-Series Z4200U Z-Cims As A Tier

    Connecting Z-Series Z4200U Z-CIMs as a Tier Important: Tiering a Z4200U chain requires User Station (UST1) firmware version 4L2 or higher and Paragon switch firmware versions 1P0 (UMT2161), 2C2 (UMT242, UMT442, and UMT8), or 3A2 (UMT1664). The following diagram shows the final setup when connecting Z-Series Z4200U Z-CIMs as a tier:...
  • Page 31 Connect Z-Series Z4200U Z-CIMs as a Tier: 1. Connect a Category 5e UTP cable to the channel port on the Paragon switch reserved for the Z- CIM chain. 2. Connect the other end of this Category 5e UTP cable to the UTP OUT port on a Z-CIM, which will be the first Z-CIM in the chain.
  • Page 32 e. Optional: Connect a local user console to the UKVMSC Z-CIM. Figure 20 Connecting a Local User Console to UKVMSC Z-CIM Perform Channel Configuration: 1. At a User Station Login Menu, type “admin” in the User Name field and press <Enter>. 2.
  • Page 33 1. Press <F2> to return to the Selection Menu. 2. The Selection Menu will display with the new computer name highlighted in white. 3. Press <Enter> to switch to this selected computer. 4. Normal computer access and operation indicates a successful connection.
  • Page 34 Important: Repeat the steps on the previous pages: Connect Z-Series Z4200U Z-CIMs as a Tier Perform Channel Configuration Name the Computer Channel on the Z4200U tiered Selection Menu Verify and Save Changes for each server to be added to the chain. Name and test each computer as it is added. Follow the steps below to build the rest of the Z4200U chain of servers.
  • Page 35 1. Press <F2> to return to the Selection Menu. 2. The Selection Menu will display with the new computer name highlighted in white. 3. Press <Enter> to switch to this selected computer. 4. Normal computer access and operation indicates a successful connection.

  • Page 36: Connecting A Masterconsole Mx As A Tier

    5. Press < > to set user port as a second-tier port (T), then press <Enter> 6. Repeat above steps for all User Ports to be connected to the base Paragon Switch. Connect an MX4 Tiered User Port to a Base Paragon Switch: If using CIM UKVMC: 1.
  • Page 37 2: I HAPTER NSTALLATION 12. Repeat these channel configuration steps for each path. You must name all MX4 paths with the same name. This will notify Paragon that these paths are connected to the same MX4. 13. Press <S> to save the new configuration. Verify and Save Changes: 1.

  • Page 38: Connecting A Masterconsole Mxu2 As A Tier

    2. Power on the MXU2 and login. Connect power cord to back of MXU2 unit and AC power outlet. Power ON the MXU2 via the power switch on the back of the unit. The Login Menu will appear on the monitor.
  • Page 39 Press <Enter> when finished - the field turns yellow. Press <S> to save the changes. The MXU2 is now programmed for second tier use. Power off the MXU2 via the power switch in the back of the unit. Disconnect the user console from this MXU2 second tier unit.
  • Page 40 Verify and Save Changes: 1. Press <F2> to go to the Selection Menu to validate that second-tier MasterConsole MXU2 is properly configured. Select and switch to one of the MasterConsole MXU2 channels to ensure proper switching. 2. Press <F5> to go to Administration Menu. Select Channel Configuration submenu. Select the MasterConsole MXU2 channel.

  • Page 41: Connecting A Masterconsole Ii (Model Mcc Only) As A Tier

    2. The LED on the far right of the unit’s front panel (second from right for MasterConsole C models) will be lit steadily. Connect MasterConsole II to the Paragon Switch: If using a CIM UKVMC: 1. Use a CCPnn cable to connect keyboard, monitor, and mouse connectors to user ports on MasterConsole II.
  • Page 42 Verify and Save Changes: 1. Press <F2> to go the Selection Menu to validate that the second-tier MasterConsole II is properly configured. Select and switch to one of the MasterConsole II channels to ensure proper switching. 2. Press <F5> to go to the Administration Menu and select the Channel Configuration submenu.

  • Page 43: Connecting A Masterconsole P As A Tier

    Note: As a tier device to Paragon, MasterConsole P model can be single bank only. Connect MasterConsole P to a Base Paragon Switch: If using a CIM UKVMC: 1.
  • Page 44 Verify and Save Changes: 1. Press <F2> to go to the Selection Menu to validate that second-tier MasterConsole P is properly configured. Select and switch to one of the MasterConsole P channels to ensure proper switching. 2. Press <F5> to go to the Administration Menu and select the Channel Configuration submenu.

  • Page 45: Expanded Installation Options

    HubPac The Paragon HubPac, part number HUBPAC8-RK, expands user access capability to a maximum of 32 users. Each HubPac is capable of connecting 8 servers to 4 Paragon Matrix Switch units. CIM models capable of connecting to a HubPac include:...
  • Page 46 Important: Prior to installation, all Paragon switch units and HubPac units must be powered OFF. Computers and User Stations (UST1s) to be connected can be powered ON. Connect one HubPac to a Paragon Switch model UMT8, creating a 32 user by 8 server configuration: 1.
  • Page 47 2: I HAPTER NSTALLATION Perform Channel Configuration: Paragon recognizes a HubPac as an extension of a CIM, rather than as a device. As a result, each server connected to the HubPac is configured as a directly connected server would be. 1.

  • Page 48: Cimpac

    CIMPac The Paragon CIMPac, part number CIMPAC8-RK, expands user access capability to a maximum of 32 users. Installing a CIMPac These Basic Installation instructions will assist you in creating two Paragon model UMT8 Matrix Switching configurations with eight users (UST1s) each. Connecting A Paragon UMT8 to a CIM-PAC Server CCPnn...
  • Page 49 Connect one end of a Category 5e UTP cable to the RJ45 Cat 5 Port immediately to the right of DB25 port X. b. Connect the other end of the cable to channel port # X on the back of UMT8 Switch number 1.
  • Page 50 Perform Channel Configuration: Paragon recognizes a CIMPac as an extension of a CIM, rather than as a device. As a result, each server connected to the CIMPac can be configured as a directly connected server would be. 1. On the Selection Menu, viewed in Channel ID number, each green line indicates an active channel (CIM/computer).

  • Page 51: Rack Mount Brackets - Rumt And Rust

    2: I HAPTER NSTALLATION Rack Mount Brackets – RUMT and RUST Mounting brackets for Paragon components – Paragon Matrix Switch or User Station (UST1) – can be purchased separately for convenient rack mount installation. UMBER RUMT-1U RUST-1U Each of these rack mount brackets can be mounted as either a forward mount or a reverse mount.
  • Page 52 1. Secure cable support bar to the rear of each side bracket, opposite from the rack mount tabs. 2. Slide Paragon Matrix Switch or User Station (UST1) between the two side brackets, at the front end near the rack mount tabs. The front of the Paragon Matrix Switch or User Station (UST1) should be flush with the front of the side brackets at the rack mount tabs.
  • Page 53 1. Secure cable support bar to the front of each side bracket near the rack mount tabs. 2. Slide the Paragon Matrix Switch or User Station (UST1) between the two side brackets at the rear end, opposite the rack mount tabs. The front of the Paragon Matrix Switch or User Station (UST1) should be flush with the back of the side brackets.
  • Page 54 ’ ARAGON DMINISTRATOR NSTALLATION AND PERATION UIDE...

  • Page 55: Chapter 3: Operating Paragon

    Hot Key activator (the <Scroll Lock> key) twice. The name of the Paragon Switch is Device ID. The User Port number is the number of the Paragon Switch User Port (1 through 8) to which this user station is connected.

  • Page 56: Selecting A Computer

    Ch. ID indicates physical channel to which each device or computer is connected. Name lists connected device or computer name. Scn (visible when menu is sorted by Ch ID) displays each channel’s specific scan rate in seconds. UMT8 Switch HWII Ch. ID --------------- ….. Scrolling Messages Banner…..
  • Page 57 ARAGON -- ---------------------------------------------------- MC2-16.Reg1 MX4-Wing.2 NT4.0-Mail NT4.0-Fax UMT8 Switch-Wing.4 Win95.Bob Wins98.Jack ….. Scrolling Messages Banner….. ScrlLock Note: The <F10> key toggles between showing and not showing all channels on user OSUI menu . Pressing <F10> will operate only if the Selection Menu is sorted by Channel ID or if the System Administrator has set the System Configuration Menu option for “Display All Computers”...
  • Page 58 System is configured in Public View Mode (see “Operation Mode” on page 65). Please refer to “Public View Mode” on page 51 for more information. Purple Channel is connected to a second-tier Paragon switch, Z-Series Z4200U, MasterConsole MX MCC only). White Current status unknown.

  • Page 59: Public View Mode

    3: O HAPTER PERATING ARAGON Public View Mode OSUI Displays in Public View Mode Public View Mode enables viewing of another computer’s video, but will not allow making changes to the video being viewed. Selecting another computer’s video to view when in Public View Mode will display a viewing message.

  • Page 60: User Customization

    User field displays user name entered at login. User Port field displays Paragon switch user port to which user is connected. Admin field displays user’s administrator privileges, if any. Group field displays user’s group ID(s).
  • Page 61 3: O HAPTER PERATING ARAGON Changing Passwords within User Profile Menu: 1. To add, delete, or change a password, press <P> while viewing the User Profile Menu. 2. Type the old password at the prompt. 3. Type a new password of up to eight characters at the next prompt. 4.
  • Page 62 8. Help: Set the help message at the bottom of each On-Screen User Interface (OSUI) menu. Use the < >, < >, < >, and < > keys to select Single Line (scrolling message banner) or Circ Left (static message banner). Default setting is Single Line. 9.

  • Page 63: On-Screen User Interface (Osui) Functions

    3: O HAPTER PERATING ARAGON On-Screen User Interface (OSUI) Functions Use the following function keys to access Paragon OSUI functions: RESS HEN YOU WANT TO View the Help Menu <F1> <F2> View the Selection Menu for a list of channels, group IDs, or scan rates; or to select a channel <F4>...

  • Page 64: Paragon Switch Front Panel Display And Controls

    5. [ENT] button (H) is used for confirming and executing selected function. Start-Up Display: When Paragon switch is powered on, it performs a start-up test. It checks each channel and user port to ensure proper operation. ’...
  • Page 65 N User (1, 2, 3, … 8) Power Up Option: If you hold down the [FUNC] button on the front panel of the Paragon Switch during Power Up, the Paragon Switch will clear its database and reset to factory defaults. Confirm functions by pressing the [ENT] button on the front panel.

  • Page 66: Set Lcd Contrast

    Selecting a Function: Press the [FUNC] button on the front panel of the Paragon Switch to enter Function Selection mode and use the [ ] and [ ] buttons to scroll through the Function List. Press the [ENT] button on the front panel to select displayed function and use the instructions below for each specified function.
  • Page 67 3: O HAPTER PERATING ARAGON 2. Display Ver./SN (Firmware Version and Serial Number): Displays current version of firmware and unit’s serial number. 3. Test User UST1 (User Station): Used by administrator to check if user stations (UST1s) are functioning properly. Press the [ ] or [ ] button to change user port number. Display will read “OK”, “None”, or “Failed.
  • Page 68 Power Reset: Hold the [ ] and [ ] buttons on the front panel of the Paragon switch simultaneously for approximately three seconds. When the front panel stops scrolling, release the buttons. Factory “Function” Reset: Hold the [ ] and [ ] buttons on the front panel of the Paragon switch simultaneously while pressing the [FUNC] button.

  • Page 69: Chapter 4: User Station (Ust1) Direct Mode

    User Stations (UST1s) set in Direct Mode can be connected directly to a Paragon CIM for emergency “crash cart access,” without having to connect through a Paragon Matrix Switching Unit. Direct Mode requires User Station (UST1) firmware version 4L2 and Paragon switch firmware versions 1P0 (UMT2161), 2C2 (UMT242, UMT442, and UMT8), or 3A2 (UMT1664).
  • Page 70 1. Power OFF UST1. 2. Disconnect the Category 5e UTP cable from the CIM. 3. Connect the Category 5e UTP cable from the UST1 to a Paragon switch. 4. Connect the Paragon switch to the CIM via Category 5e UTP cable.

  • Page 71: Chapter 5: Administrative Functions

    5: A HAPTER DMINISTRATIVE 5: A HAPTER DMINISTRATIVE Administrative functions enable System Administrators to control the computers connected to the Paragon system and how users access devices. These functions can be performed from a set of Administration Menus. Administration The Administration Menu is used for setting security classes, maintaining user names and privileges, and managing the system configuration, which enables the administrator to control user access to Paragon and all connected devices.

  • Page 72: System Configuration

    System Configuration Menu Options: 1. Device ID: Type desired name of device. This gives device a unique and meaningful name, which is important with multiple Paragon units. The default name for a Paragon switch model UMT8 is UMT8 Switch HWII.
  • Page 73 5: A HAPTER DMINISTRATIVE 4. Operation Mode: There are three modes: Use < > and < > keys to select “Private,” “Public View,” or ““PC Share.” Default setting is Private. Private: A computer can be accessed exclusively by one user at a time. Public View: While one user is accessing a computer, another user can select and view that user’s video.

  • Page 74: User Configuration

    User Configuration The User Configuration Menu enables an administrator to add, delete, or edit user names and security rights, and also displays the current connection status for each user. 1. Press the < > and < > or <Page Up> and <Page Down> keys to highlight a channel for a device or computer and press <Enter>...
  • Page 75 5: A HAPTER DMINISTRATIVE Note: Press the <Tab> or the < > key to move to the far right of the User Configuration Menu menu and view Connection information. 5. Connection: The Connection column shows status of each user and displays the channel to which any active user is currently connected.

  • Page 76: Channel Configuration

    4. Device: Displays type of connected device. Use the < > and < > keys to edit a device type. If a type other than the computer type (CPU) is selected, it is assumed that a Raritan KVM switch has been connected to the channel according to the installation procedure for Multi-Tier Installation.
  • Page 77 Security: Group ID Settings” on page 81 for more information. Note: Many Raritan KVM Switches are Paragon Ready configuration when connected as a tiered device to Paragon, including second or third tier switch units. CHANNEL CONFIGURATION UMT8 Switch HWII Page:...

  • Page 78: User Station Profile

    User Station Profile The User Station Profile screen enables an administrator to select a keyboard mapped for a different language and to set the elapsed time of video delay when switching channels. 1. Press the < > and < > or <Page Up> and <Page Down> keys to highlight the desired field and press <Enter>...

  • Page 79: Refresh Configurations

    5: A HAPTER DMINISTRATIVE Refresh Configurations Select item 5 - Refresh Configurations on the Administration Menu to refresh the database of all user stations from the Paragon switch database. ---- ------------------------------------------------------- System Configuration User Configuration Channel Configuration User Station Profile Refresh Configurations …..
  • Page 80 ’ ARAGON DMINISTRATOR NSTALLATION AND PERATION UIDE...

  • Page 81: Connecting A Pc To Ust1

    1. Using a standard DB9 serial cable, plug DB9(F) into one of the Com ports on the PC. 2. Plug the other end of the DB9 cable, DB9(M), into the Admin port of any UST1 connected to a base Paragon Switch. AC Power...

  • Page 82: Operating Overview Software

    ’ ARAGON DMINISTRATOR NSTALLATION AND PERATION UIDE Operating Overview Software Start Program: 1. Insert Overview software diskette into floppy disk drive. 2. Using Windows Explorer, locate and double-click on the Overview.exe file on the diskette. 3. The Overview program window will open. Figure 64 Overview Program Window and Communication Control Panel Activate PC Communication and Login:...
  • Page 83 6: O HAPTER VERVIEW OFTWARE Perform Administrator Login: This step requires administrator authorization to access UST1. 1. At the Login window, enter Administrator User Name and Password. 2. Click on the OK button. Connect to UST1 and Download Configuration: This step downloads UST1’s configuration file for offline editing at the PC. 1.

  • Page 84: Editing User Profiles

    Editing User Profiles Edit a User’s Profile: 1. Click User Profiles on left side of the Overview program window to display a User List. 2. Double-click the user name that you wish to edit from the User List that appears. 3.

  • Page 85: Editing Device Profiles

    1. Open the device list by clinking the plus sign inside the small square to the left of the Paragon Switch name on the left side of the Overview program window. 2. Double-click on a computer or second tier device from the list.

  • Page 86: Opening A Savedc

    Uploading a Configuration File to Your System After any user profile, computer, and/or other device has been modified, the new configuration file must be uploaded to the UST1 to reconfigure the system. Before uploading to the UST1, save a copy in a PC disk file for later reference.

  • Page 87: Troubleshooting

    YMPTOM Program begins. After clicking on the Activate Port button, a message appears “UMT8 Switch device is not responding.” After a period of trouble free software operation, clicking on the Send to Paragon button causes the Windows status bar to remain on the screen.
  • Page 88 ’ ARAGON DMINISTRATOR NSTALLATION AND PERATION UIDE...
  • Page 89 7: P HAPTER ARAGON ECURITY 7: P HAPTER ARAGON ETTINGS The default group ID setting for all connected users and computers is a Group ID of “00”. These IDs are called Group IDs because each user ID number can have one or more users belonging to it, and each computer ID number can have one or many computers belonging to it.

  • Page 90: Chapter 7: Paragon

    Recommendations Systems Requiring High Security: Raritan Computer recommends assigning IDs of 10 through 99 to computers requiring high protection. This will make them less accessible than computers with IDs of 00 or 01 through 09. Main System Administrator and Assistant Administrators: Although any user may be assigned Administrative Privileges, we recommend the user ID “00”...

  • Page 91: C Omputer A Ccess Via Z-Cim

    OMPUTER CCESS VIA Paragon switch firmware versions 1P0 (UMT2161), 2C2 (UMT242, UMT442, and UMT8), or 3A2 (UMT1664) and UST1 firmware 4L2 or higher supports access to a personal computer via a Z-CIM - UKVMSPD or UKVMSC. This feature gives the User Station and attached User Console control of the local user’s PC, in addition to the Paragon matrix.
  • Page 92 3. Trace the Category 5e UTP cable from the chosen UST1 to the Paragon Switch and disconnect this cable from the Paragon Switch user port. Reserve this user port for connection from the Z-CIM. 4. Add the Z-CIM (UKVMSPD or UKVMSC) between the chosen User Station (UST1) and the Paragon Switch.

  • Page 93: Chapter 9: Specifications

    9: S HAPTER PECIFICATIONS 9: S HAPTER PECIFICATIONS 17.2” (W) ARAGON WITCH UMT2161 17.2” (W) UMT242 17.2” (W) UMT442 17.2” (W) UMT8 17.25” (W) UMT1664 11.4” (W) TATION UST1 S FOR UKVMC 4.3” (W) PC - ONNECT ONE WITH PORTS FOR LOCAL ACCESS 2.0”...
  • Page 94 S FOR USKVMC 4.3” (W) ONNECT ONE OMPUTER WITH PORT FOR LOCAL ACCESS USKVMP 2.0” (W) ONNECT ONE OMPUTER WITH HD15 VIDEO USKVMPD 1.68” (W) ONNECT ONE OMPUTER WITH “D ” IRECT ONNECT ECHNOLOGY USKVMPA 2.0” (W) ONNECT ONE OMPUTER WITH 13W3/ COMPOSITE...

  • Page 95: Cim Installation: Connecting Cim And Server

    9: S HAPTER PECIFICATIONS CIM Installation: Connecting CIM and Server CIM M ODEL ONNECTION Connect DB25 male end of provided CCPnn cable to DB25 female port UKVMC on UKVMC. Connect other end of cable to 6-pin mini DIN keyboard and mouse ports and female 15-pin video port on the computer.
  • Page 96 CIM M ODEL ONNECTION Connect DB25 male end of CCUSBnn cable to DB25 female port on AUPUSBC AUPUSB. Connect other end of cable to one of the USB ports and 15-pin video port on the computer. Connect HD15 video leg attached to UUSBP appropriate 15-pin female UUSBP video port on the computer.

  • Page 97: Connecting Utp Cables

    9: S HAPTER PECIFICATIONS Connecting UTP Cables Recommended UTP cables: Category 5e UTP Cables: Category 6 UTP Cable: Category 7 UTP Cable: Pin-out specifications for RJ45 connectors to Category 5e UTP cable: Paragon supports only T568A or T568B pin-outs T568A White/Green Green White/Orange...
  • Page 98 (1) DIN 6F to DIN 5M and (1) DIN 6F to DB9F can be ordered for any CCPdd cable (part number: APSAT). Accessories: ESCRIPTION RPAR1U 19” Rack Mount Bracket (for UMT8 Switch) - 1U [for S/N beginning with RUMT-1U 19” Rack Mount Bracket (for UMT2161, UMT8, UMT442, UMT242 Switch) - 1U [for S/N beginning with CP] RUMT-2U 19”...

  • Page 99: Chapter 10: T

    Loose keyboard cable connection Voltage spike (increase) or brown out (decrease) in power supply to connected Paragon Matrix Switch unit. Power down Switch, wait 20 seconds, then power on unit. Powering Switch from a UPS avoids variation in power supply to Switch.

  • Page 100: Multi-Tier Installation

    Last tier switches must be powered ON before the intermediate level of tier Intermediate tier switches must be powered ON before the base Paragon switch can be powered User Stations (UST1s) can be powered ON and OFF at any time as needed.

  • Page 101: Utp Cabling Faqs

    10: T HAPTER ROUBLESHOOTING UTP Cabling FAQs Cat5 / Cat5e / Cat6 Cabling FAQs: UESTION What UTP cable does Raritan recommend for use with Paragon, Paragon ReadyTM, and Cat5 ReachTM products? Can I use plain Cat 5 cable, instead of Cat 5e? Can I use standard Ethernet (10BASE-T) cable? NSWER...
  • Page 102 UESTION Can I use non-certified Cat 5e cable? Can I use Cat 6 cable? What happens if I do not use Raritan certified cable? ’ ARAGON DMINISTRATOR NSWER Yes, however, you may not get the same performance as you would with Raritan certified Category 5e UTP or Category 6 UTP cables.
  • Page 103 10: T HAPTER ROUBLESHOOTING UESTION Cat 5e is standardized. Why can’t I simply use any Cat 5e cable with Raritan products? NSWER Because the intended application of UTP cabling is the transmission of digital data, cable specifications are optimized for that application. However, because video data is by its very nature analog, Raritan’s exclusive technology –...
  • Page 104 UESTION NSWER Are there special Yes, please refer to diagram below. pin out requirements that I must use? ’ ARAGON DMINISTRATOR Figure 70 Cable Pin-out Requirements NSTALLATION AND PERATION UIDE...

  • Page 105: Chapter 11: Glossary

    A label of up to 12 characters assigned by an administrator for a device connected to a Paragon channel. See One-Tier Configuration and Two-Tier Configuration. A computer, or Paragon Matrix Switch, or any MasterConsole Switch unit that is connected to a Paragon Matrix Switch channel. For accessing front panel control functions.
  • Page 106 Located in left-hand column of Selection Menu. To quickly select a channel, press its corresponding key number on keyboard when Selection Menu is displayed. Liquid-crystal display screen on Paragon Matrix Switch’s front panel for displaying statuses and controlling administrative functions.
  • Page 107 See also Class Security Code, and Group Security Code. For selecting and accessing a computer or device. For adjusting contrast of LCD on a Paragon Matrix Switch front panel. Enables administrator to password protect functions on the LCD.
  • Page 108 ID or by name. Pressing <F12> toggles the sort criterion when a Selection Menu is displayed. Displayed on LCD when the Paragon Matrix Switch is powered on – system checks for the status of computers and user connections. After this start-up test, system goes to normal display.
  • Page 109 11: G HAPTER LOSSARY User Profile UST1 X Model EFINITION For setting and changing user passwords and preferences. Acronym for User Station MasterConsole II models MasterConsole X-4, MasterConsole X-8, and MasterConsole X-16.
  • Page 110 ’ ARAGON DMINISTRATOR NSTALLATION AND PERATION UIDE...

  • Page 111: Appendices

    PPENDICES PPENDICES Appendix A: Paragon Update – Firmware Upgrade The Paragon Update Utility is a Win32-based program that facilitates the transfer of firmware to Paragon units – the Matrix Switching Unit and the User Station (UST1). The Paragon Update Utility and the latest versions of firmware can be downloaded from Raritan’s web site: http://www.raritan.com.
  • Page 112 Paragon Configuration Backup: Paragon Update is designed to execute the firmware uploading process without disturbing Paragon configuration data files. However, as an added precaution, many users prefer to backup these configuration files, which contain user profile and server name information. 1.

  • Page 113: Update User Station

    PPENDICES Update User Station(s) 1. On any active Paragon User Station (p/n UST1), log into Paragon, and press <F12> to display the Selection Menu by Name. 2. When the Paragon User Station displays Selection Menu by Name, connect one end of a straight- through serial cable to the port labeled Admin (DB9F) on the back of the User Station and connect the other end of the cable to the serial port of any computer with Paragon Update installed.

  • Page 114: Update Paragon Matrix Switching Unit(S)

    8. Click on the Disable Port button, then exit Paragon Update. 9. Use the power switch on the back of the unit to recycle power to the Paragon Matrix Switching unit. The front LCD screen will display the latest firmware version number.

  • Page 115: Appendix B: Ibm X330

    PPENDICES Appendix B: IBM x330 Paragon switch firmware versions 1P0 (UMT2161), 2C2 (UMT242, UMT442, and UMT8), or 3A2 (UMT1664) and User Station (UST1) firmware 4L2 or higher supports an IBM x330 chain of computers as a second tier by utilizing IBM’s Cable Chaining Technology (C2T) and Raritan Computer Interface Modules (CIMs), UKVMP-x330 or UKVMC-x330.
  • Page 116 IBM x330 servers to be connected. 2. Connect a Category 5e UTP cable to the reserved channel port on the back of the Paragon Switch. 3. Connect the other end of the category 5e UTP cable to the RJ45 port on a Raritan CIM - UKVMP-x330 or UKVMC-x330.
