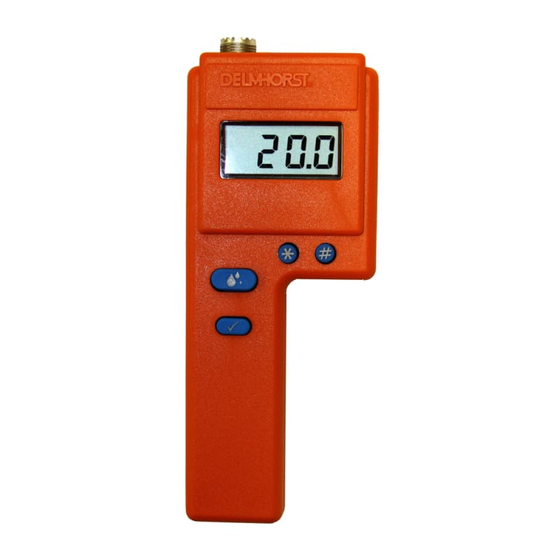

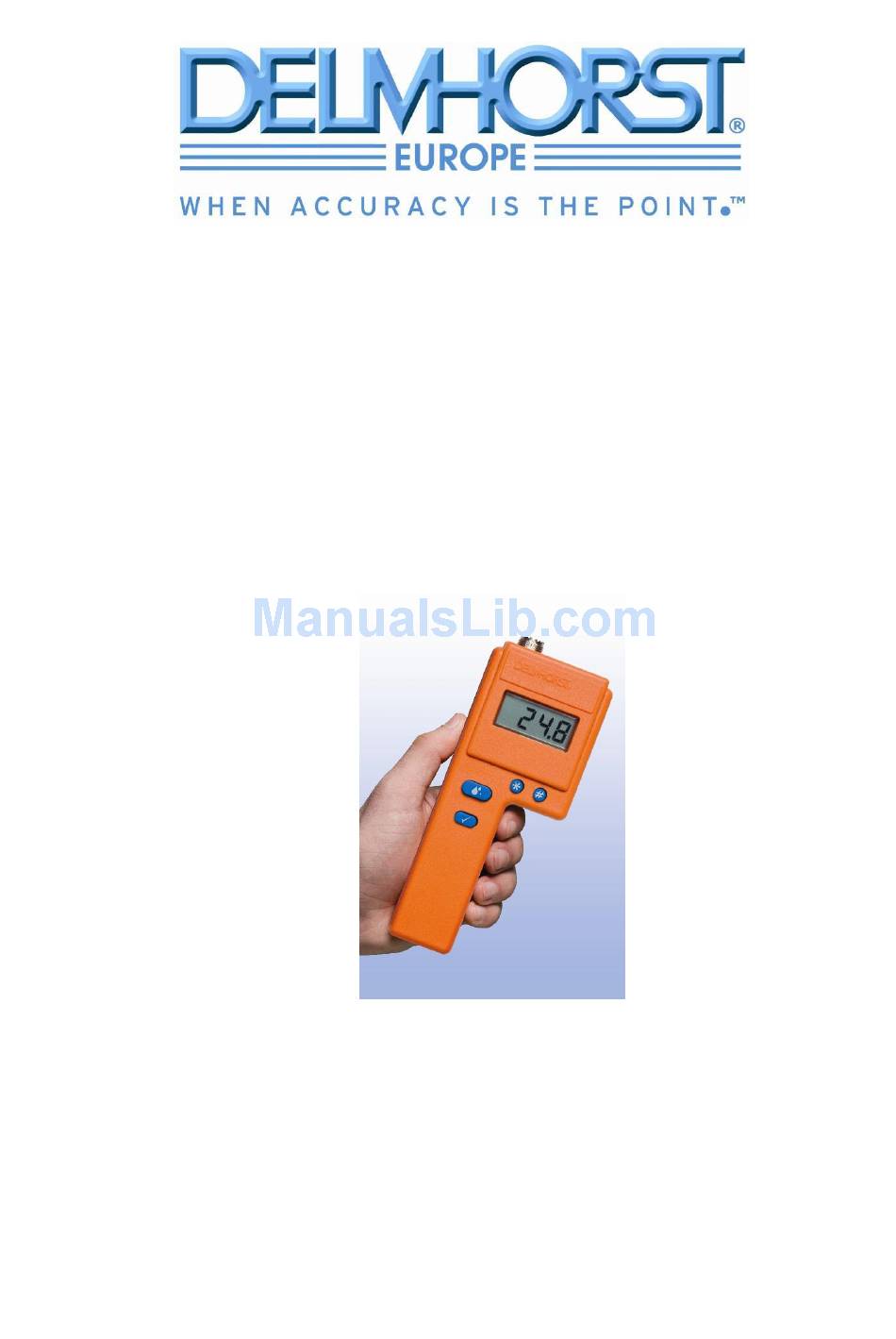

- Page 1 F-2000 HAY MOISTURE METER OPERATION MANUAL DELMHORST EUROPE TITANIUMLAAN 100 NL 5221 CK ‘s-HERTOGENBOSCH THE NETHERLANDS info@delmhorst.eu www.MoistureMetersDelmhorst.com +31 (0)73 6395080...
-
Page 2: Table Of Contents
Model F-2000 Owners Manual TABLE OF CONTENTS F-2000 Features Before You Begin Button Functions Check Calibration Change The Set Point To Check The Accumulated Readings To Reset The Meter Taking A Reading Testing Baled Hay Testing in the Windrow Factors Affecting Your Reading... -
Page 3: Before You Begin
FEATURES 6% to 40% moisture range for alfalfa hay Digital readout Built-in calibration check Temperature stable circuit Ergonomic case design Includes (1) 9-volt battery Three year warranty Over sixty years of proven quality, accuracy and service BEFORE YOU BEGIN BUTTON FUNCTIONS Read (#1):... -
Page 4: Check Calibration
If this occurs, change the battery immediately. Continued use with a low battery may cause the meter to go out of calibration. If you have a fresh battery and the instrument still does not indicate an acceptable calibration, return it to DELMHORST for service. See “Service for Your Meter” section. -
Page 5: To Reset The Meter
TO RESET THE METER Press and release the calibration check button (#2). Within one second, press and hold the scale button (#3). The meter will reset itself and display “119.” This indicates that the meter has been reset to scale #1 (hay) and default set-point 19%. -
Page 6: Factors Affecting Your Reading
NOTES Whenever pressure is being applied on the electrode, be sure that the points of the electrode are touching nothing but the hay. Repeat the steps above if considerable variations are found in the meter readings. To reduce these variations, chop the hay, mix it thoroughly and take several readings by following the procedures above. -
Page 7: Range Of Moisture Content
RANGE OF MOISTURE CONTENT The F-2000 is designed to test moisture in hay over a range of 6%-40%. Readings over 30% should be used only as a qualitative indication of high moisture content. Delmhorst moisture meters use the relationship existing between electrical conductivity and moisture content in hay. -
Page 8: Curing
CURING Before proper curing has taken place, wide variations in moisture content should be expected in both recently baled hay and hay in the windrow. These variations will be exposed by meter readings taken on different parts of the windrow or bale. The higher the moisture range, the wider are the variations. -
Page 9: Care Of Your Meter
CARE OF YOUR METER To keep your meter in good working order: Store your meter in a clean, dry place. The protective carrying case provided is an ideal storage place when the meter is not in use. Change the 9-Volt battery as needed. Continued use with a low battery may cause the meter to go out of calibration. -
Page 10: Warranty
At our option we may replace or repair the meter. DELMHORST shall not be liable for incidental or consequential damages for the breach of any express or implied warranty with respect to this product or its calibration. -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Manufacturer's Name: Delmhorst Instrument Co. Manufacturer's Address: 51 Indian Lane East Towaco, NJ 07082 Council Directive(s): 89/336/EEC - Meets EMC directive 73/23/EEC - Not required. Voltage used or generated is not within scope of Low Voltage Directive.
