Owner's Manual FX-20
Rev 1 - October 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX-20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delmhorst FX-20

Summary of Contents for Delmhorst FX-20

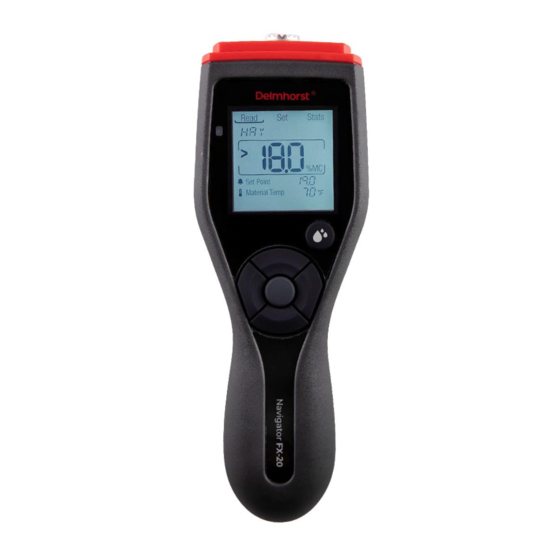

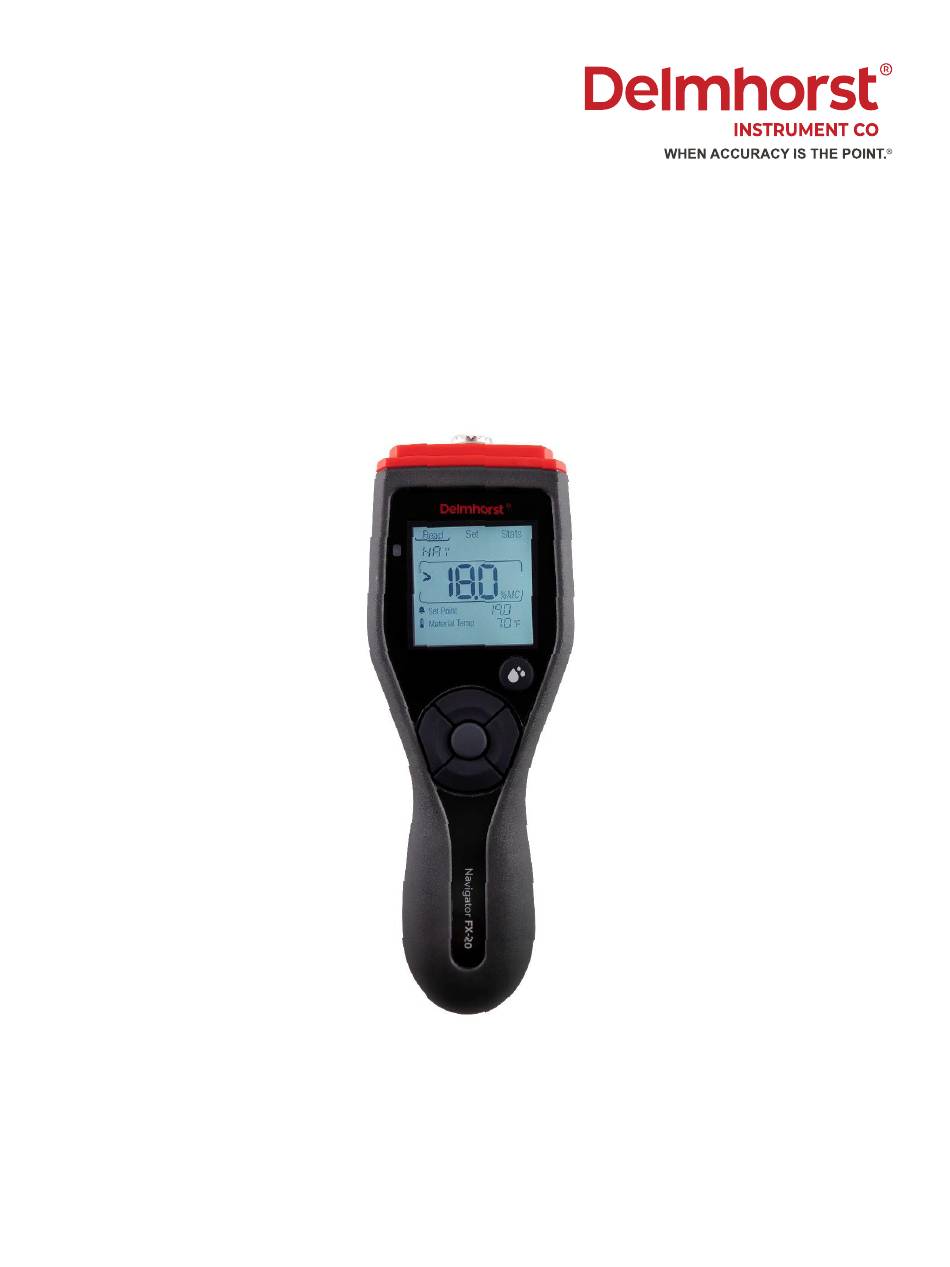

  • Page 1 Owner’s Manual FX-20 Rev 1 - October 2023...

  • Page 2: Table Of Contents

    Contents 1. Introduction ............................4 2. Safety ............................... 5 3. Meter Features ............................6 4. Menu Features ............................8 5. Read Menu ............................. 9 Live Reading Area ..........................9 Set Point ............................... 10 Material (Hay) Temperature ......................11 6. Set Menu .............................. 12 Setting Selection ..........................
  • Page 3 Range of Moisture Content ......................24 Curing ............................... 25 Density .............................. 26 Use of Preservatives ........................26 Sample Size ............................. 26 Rev 1 - October 2023...

  • Page 4: Introduction

    Navigator™ family of meters. Delmhorst moisture meters are known to hay producers worldwide for their unmatched reliability and ease of use. The FX-20 is the ideal tool for hay producers large and small. It offers the latest in features and functionality. The FX-20is packaged in a robust and ergonomically designed ABS case (patent pending).

  • Page 5: Safety

    Cal Check feature or external MCS calibration standard) to ensure the meter is working correctly and electrically accurate. Proper Use: When used properly, the FX-20 can help users make informed decisions on the hay moisture levels throughout production and storage. A moisture meter is a secondary method of determining moisture content, and users should be aware of other potential influences on the accuracy of conductance meter readings.

  • Page 6: Meter Features

    3.Meter Features Figure 1: Meter components Display – Easy to read, backlit LCD display. Read Button – When in live reading mode, press this button to hold a reading. When in any other mode, press this button to enter live reading mode.
  • Page 7 Electrode Connector – Connect any external special application Delmhorst electrode. Most common for hay are the 1235 bale prod and H-4 handle, required for 830-series bale prods and 831 prod for windrows.

  • Page 8: Menu Features

    4. Menu Features The Delmhorst FX-20 has three operating modes: Read, Set, and Stats. The currently selected menu is marked with an underline. To change the menu, press the up button until the menu underline is blinking. Then use the left and right buttons to switch between menus.

  • Page 9: Read Menu

    5. Read Menu Figure 2: Read screen components 1. Live Reading Area Info: The live reading area displays the moisture value of the hay. The reading is corrected using the Material Temperature (3 if the user has input hay temperature (see Figure 2 above).

  • Page 10: Set Point

    meter will beep. A held reading can be saved, if desired (see below). Saving a reading or pressing the Read button a second time will return the meter to live reading mode. Save a Reading: Press the Center button to save a live or held reading.

  • Page 11: Material (Hay) Temperature

    3. Material (Hay) Temperature Info: The FX-20 has been calibrated at 80°F on various samples of different types of hay, mostly alfalfa, and on different cuttings and mixtures. The higher the temperature of the sample, the higher the meter readings will be. Temperatures lower than 80°F cause lower meter readings.

  • Page 12: Set Menu

    6. Set Menu Figure 3: Set screen components 1. Setting Selection The setting selection area will display all settings in a scrollable list. Each setting is listed and explained in Table 2 below. Press the left and right buttons to view settings. After locating the desired setting, press the down or center button to enter the setting state.
  • Page 13 • Factory default is 1 minute Manually turn the meter off by depressing the center • button until screen goes blank – approx. 3s • Turn backlight ON enable, and OFF to disable Backlight • Turn the backlight ON when in low ambient light, and OFF when in bright ambient light •...

  • Page 14: Stats Menu

    6. Stats Menu Figure 4: Stats screen components 1. Stats Selection The stats selection area will display all statistics in a scrollable list (see Table 3 below). Press the left and right buttons to view statistics. 2. Stats Details Statistics are calculated from the list of saved readings in meter memory, and only readings taken within the valid measurement range of the selected material are used for the calculations.
  • Page 15 option for clearing readings. For all other statistics, stats details will simply reflect the details of the above statistic and cannot be selected. Table 3: Available Stats Statistic Description Readings • Displays the total number of readings stored in the meter Average •...

  • Page 16: Specifications And Operating Conditions

    8. Specifications and Operating Conditions Temperature Compensation Range: (not operating temperature) 0-255 °F / -18-124 °C Reading Range: Hay: 6% - 40%MC – calibration is primarily alfalfa Power: 2x AA Alkaline Batteries Battery life while using the meter in reading mode and active LED’s is estimated at 125-150 hours.

  • Page 17: Regulations/Compliance

    Regulations/Compliance: WEE, RoHS, CE Dispose of your Meter Figure 5: WEEE symbol – crossed out wheeled bin For private households: Information on Disposal for Users of WEEE This symbol (figure 5) on the product(s) and / or accompanying documents means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste.

  • Page 18: For Professional Users In The European Union

    For professional users in the European Union If you wish to discard electrical and electronic equipment (EEE), please contact your dealer or supplier for further information. For disposal in countries outside of the European Union This symbol is only valid in the European Union (EU). If you wish to discard this product, please contact your local authorities or dealer, and ask for the correct method of disposal.

  • Page 19: Service Your Meter

    Optional electrodes are guaranteed for 90 days. See the owner’s manual or Delmhorst website (www.delmhorst.com) for warranty period on your specific product. If, within the warranty period of the product, you find any defect in material or workmanship, return the meter to Delmhorst or an authorized reseller,...
  • Page 20 PRODUCT. The express warranty set forth above constitutes the entire warranty with respect to Delmhorst meters and electrodes and no other warranty, written, oral, or implied applies. This warranty is personal to the customer purchasing the product either from Delmhorst directly or through an authorized reseller.
  • Page 21 Info@delmhorst.com 973-334-2557 Rev 1 - October 2023...

  • Page 22: Testing Baled Hay

    11. Appendix Testing Baled Hay • Connect the 1235 bale prod (or H-4 handle and 830-series prod) to the connector on the top of the meter. • Insert the prod into the bale. • Press the read key. The meter displays the %MC for two seconds. Notes •...

  • Page 23: Testing Hay In The Windrow

    Testing Hay in the Windrow Test 1 • Attach the #831 short pin prod to the H-4 handle and connect the handle to the external connector on top of the meter. • Prepare a representative sample by collecting hay from various parts of the windrow.

  • Page 24: Factors Affecting Your Readings

    Range of Moisture Content The FX-20 is designed to test moisture in hay over a range of 6%-40%. Readings over 30% should be used only as a qualitative indication of high moisture content. Delmhorst moisture meters use the relationship...

  • Page 25: Curing

    existing between electrical conductivity and moisture content in hay. As moisture content increases, so does the conductivity. Tests on hay at high moisture content, over 25%, are less accurate. This is mostly due to the variability in moisture distribution. The reduced level of accuracy in the high range does not significantly affect the usefulness of the meter, as a few high readings indicate that some action be taken to dry the hay to avoid spoilage or even self-combustion.

  • Page 26: Density

    Density The calibration of the moisture testers applies to bales of normal “average” density. Generally: • Denser bales may yield readings 1-2% higher. • Looser bales tend to yield 1-2% lower. • Tests in stacks usually yield readings 2%-3% lower. •...
  • Page 27 35%. More tests must be made whenever the variations among readings are greater. If there is a possibility of high moisture areas, samples from these locations should be taken. Areas of high moisture content will spoil, resulting in loss. It is extremely important to note the high readings and the frequency at which they occur.
